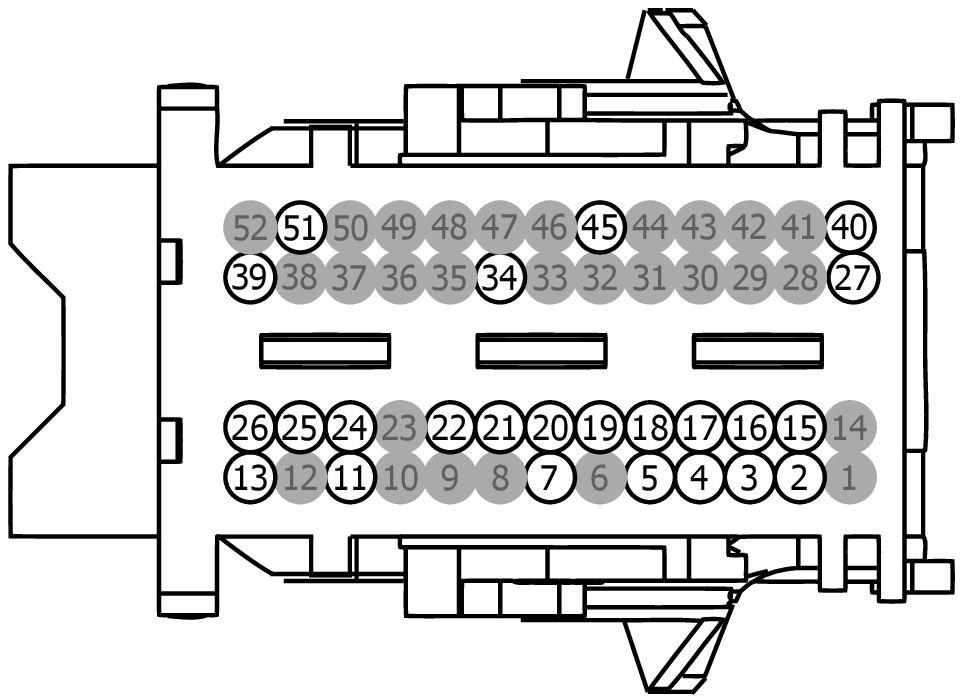

Connector End View (C2280G) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280G	BODY CONTROL MODULE (BCM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-YB	DU2Z-14474-AA	0.64
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CLS34 (GY)	26	SWITCH - PARK LAMPS	9U5T-14474-YB
3	CLN56 (BN-VT)	26	DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN	9U5T-14474-YB
4	CMP18 (GN-BN)	22	SWITCH - PARKING AID	9U5T-14474-DB
5	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +	9U5T-14474-DB
6	*	*	Not Used	N/A
7	CLN55 (YE-VT)	26	DIMMER - IP/SWITCH ILLUMINATION # DIM UP	9U5T-14474-YB
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CRT36 (BU-GY)	22	CTRL MOD. - WIRELESS CHARGE ENABLE/DISABLE	9U5T-14474-DB
12	*	*	Not Used	N/A
13	VDN15 (BU-GY)	22	CTRL MOD. - LIN BUS # BCM 7	9U5T-14474-DB
14	*	*	Not Used	N/A
15	CLF24 (YE-BU)	26	SWITCH - HEADLAMP ON	9U5T-14474-YB
16	CLF23 (WH-VT)	26	SWITCH - HEADLAMP OFF	9U5T-14474-YB
17	CMP32 (GN)	22	SWITCH - ACTIVE PARK ASSIST (AUTOPARK)	9U5T-14474-DB
18	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	9U5T-14474-DB
19	CLS57 (WH)	22	CTRL MOD. - HAZARD SWITCH	9U5T-14474-DB
20	CLF21 (GY-VT)	26	SWITCH - FOG LAMPS FRONT	9U5T-14474-YB
21	CLF19 (VT-GN)	26	SWITCH - AUTOLAMP (1) ON	9U5T-14474-YB
22	RLF14 (GY-BN)	26	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -	9U5T-14474-YB
23	*	*	Not Used	N/A
24	VLF14 (BU-BN)	26	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +	9U5T-14474-YB
25	VDN02 (GN-OG)	22	CTRL MOD. - LIN BUS # BCM 2	9U5T-14474-DB
26	VPL56 (BU-GY)	26	RECEIVER - REMOTE RF	9U5T-14474-YB
27	RPK05 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -	9U5T-14474-DB
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS	9U5T-14474-DB
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED	9U5T-14474-DB
40	VPK05 (BN-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +	9U5T-14474-DB
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	VLN04 (VT-GY)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-YB
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	CPK34 (BN-VT)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +	9U5T-14474-DB
52	*	*	Not Used	N/A
