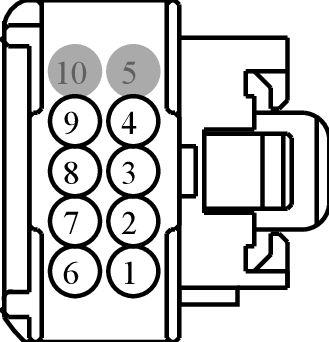

Connector End View (C2009) - AUDIO CONTROL PANEL

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2009	AUDIO CONTROL PANEL	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-LA
2	VMED7 (BN-WH)	22	CTRL MOD. - SYNC LIN BUS	9U5T-14474-LA
3	CLS57 (WH)	22	CTRL MOD. - HAZARD SWITCH	9U5T-14474-LA
4	CH133 (YE-OG)	22	DEFROST INDICATOR	9U5T-14474-LA
5	*	*	Not Used	N/A
6	CMP40 (WH-GN)	22	SWITCH - FRONT 360 CAMERA ENABLE	9U5T-14474-LA
7	CH433 (BU-GY)	22	DEFROST REQUEST	9U5T-14474-LA
8	CRD04 (BN-GN)	22	INDICATOR - HEATER REAR WINDOW	9U5T-14474-LA
9	SBP31 (WH-RD)	22	FUSE - 31 OR CIRCUIT BREAKER	9U5T-14474-LA
10	*	*	Not Used	N/A

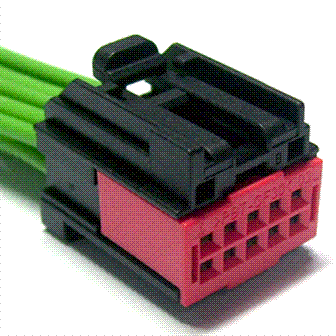

Available Pigtail Kits

Pigtail Kit Part Number WPT-1083

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AHA

Gauge:

18

Pin material:

Silver

Cavities:

10

Vehicle Uses:

• Module - Front Interface
• Switch - Heater A/C Blower (Rear)
