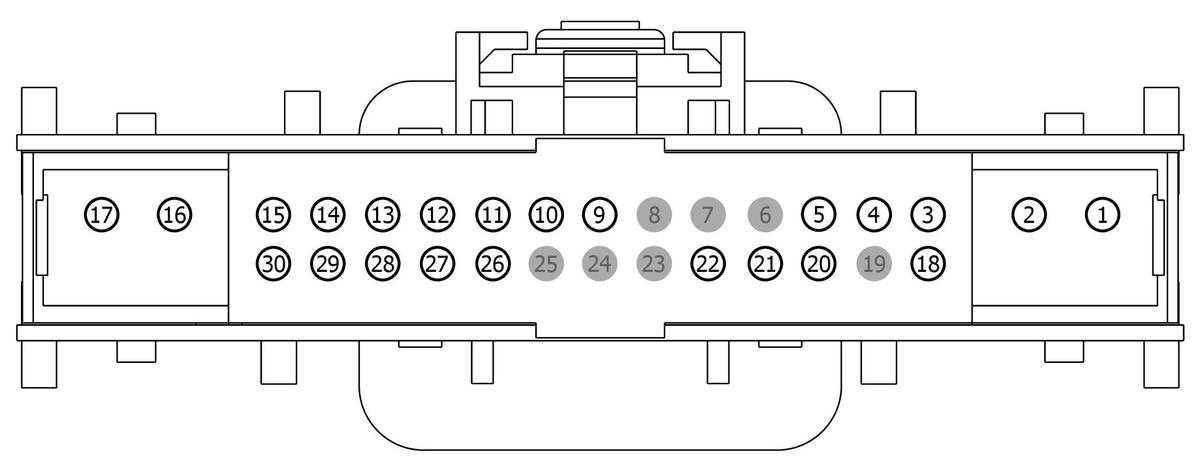

Connector End View (C228B) - HVAC MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C228B	HVAC MODULE	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-YB	DU2Z-14474-AA	0.64
7C3T-14474-KA	Not Available
BU5T-14474-BAA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB65 (RD)	18	FUSE - 65 OR CIRCUIT BREAKER	7C3T-14474-KA
2	SBB65 (RD)	18	FUSE - 65 OR CIRCUIT BREAKER	7C3T-14474-KA
3	CE469 (BN)	22	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	9U5T-14474-DB
4	VH409 (WH)	22	SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL)	9U5T-14474-DB
5	VH410 (GY-BU)	26	SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR)	9U5T-14474-YB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VH413 (WH-BU)	26	SENSOR - HUMIDITY	9U5T-14474-YB
10	VH411 (VT-GN)	22	SENSOR - DISCHARGE TEMP. # RIGHT (RIGHT FRONT PANEL)	9U5T-14474-DB
11	VH412 (YE-GY)	26	SENSOR - DISCHARGE TEMP. # RIGHT 2ND (RIGHT FRONT FLOOR)	9U5T-14474-YB
12	CH253 (WH-BN)	26	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	9U5T-14474-YB
13	CH212 (BU-OG)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS)	9U5T-14474-YB
14	CH213 (BN-GN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS)	9U5T-14474-YB
15	RHS10 (BU-OG)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	BU5T-14474-BAA
16	CHS02 (YE-BU)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	BU5T-14474-BAA
17	CHS07 (GY-BU)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	7C3T-14474-DA
18	VH441 (WH-BN)	26	SENSOR - DOOR POSITION TEMP. RIGHT	9U5T-14474-YB
19	*	*	Not Used	N/A
20	CRD04 (BN-GN)	22	INDICATOR - HEATER REAR WINDOW	9U5T-14474-DB
21	VH416 (VT-GY)	26	SENSOR - SUN LOAD # LEFT	9U5T-14474-YB
22	VH417 (YE-OG)	26	SENSOR - SUN LOAD # RIGHT	9U5T-14474-YB
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	CR189 (BU-OG)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	9U5T-14474-DB
27	VHA31 (GN-BN)	22	SENSOR - REAR TEMP	9U5T-14474-DB
28	CMP40 (WH-GN)	22	SWITCH - FRONT 360 CAMERA ENABLE	9U5T-14474-DB
29	VH414 (GN-BU)	26	SENSOR - INCAR TEMP.	9U5T-14474-YB
30	RHS05 (YE-VT)	26	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	9U5T-14474-XB
