Battery Disconnect and Connect

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Disconnect

NOTE: Removing the negative battery ground cable at the LH strut tower will not disable the vehicle's electrical system. Failure to disconnect the battery cable from the battery post may cause component damage.

NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.

NOTE: When disconnecting the battery ground cable to interrupt power to the vehicle electrical system, disconnect the battery ground cable only. It is not necessary to disconnect the positive battery cable.

NOTE: Make sure the positive battery terminal cover is in position while removing the negative battery cable clamp to prevent damage from a short to the positive terminal.

NOTE: Be careful not to damage the sensor when removing the terminal from the battery post. Do not pry on the terminals or component damage may occur.

NOTE: The cowl panel is removed for clarity.

Loosen, but do not remove the nut and position the negative battery cable aside.

Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

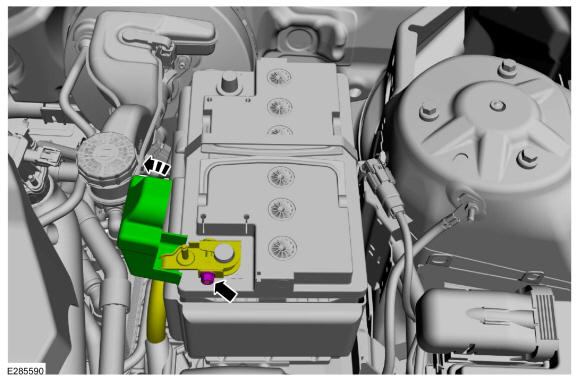

Position the positive battery terminal cover aside. Loosen, but do not remove the nut and position the positive battery cable aside.
Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

To connect, reverse the disconnect procedure.
