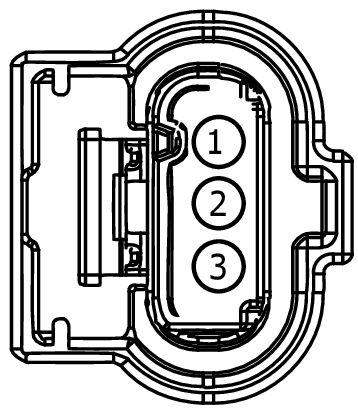

Connector End View (C1897) - POWER TRANSFER UNIT (PTU) AUXILIARY PUMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1897	POWER TRANSFER UNIT (PTU) AUXILIARY PUMP	14G574			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	EU5T-14474-GAB
2	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	EU5T-14474-GAB
3	VE530 (GY-OG)	18	CTRL MOD. - AUXILIARY WATER PUMP	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1492

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-BA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Monitor - Crankcase Ventilation
• Motor - Intercooler Pump
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Delta Pressure Feedback EGR
• Sensor - Exhaust Gas Pressure
• Sensor - Intake Manifold Runner Control
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Oil Pressure
