Rear Seat Cushion Cover: Removal

Remove the rear seat cushion. Refer to: Rear Seat Cushion

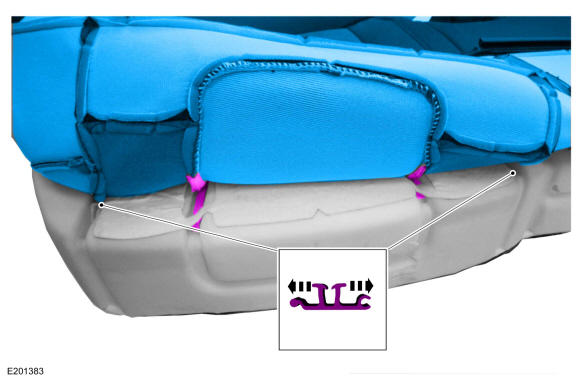

Release the rear seat cushion cover J-clips.

Courtesy of FORD MOTOR COMPANY

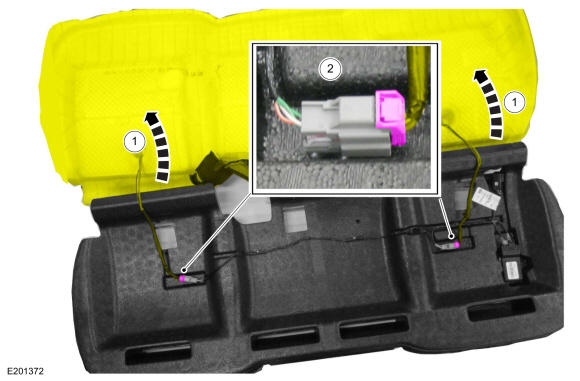

Remove the cushion cover and foam from the seat frame.
1. Lift the seat cushion cover and foam.
2. If equipped. Disconnect the heated seat electrical connectors.
Courtesy of FORD MOTOR COMPANY

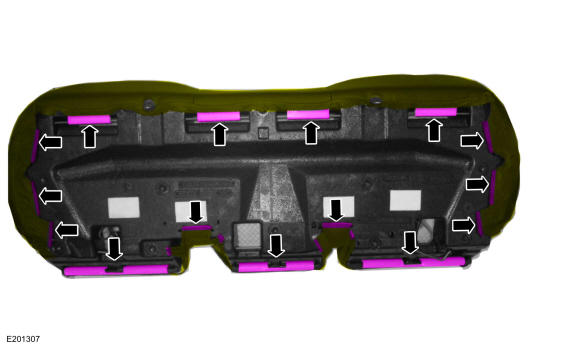

Invert the rear seat cushion cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.

NOTE: Use care when separating the seat cushion trim cover from the hook-and-arrow strips or the hook-and-arrow strips may be torn from the seat cushion foam pad.

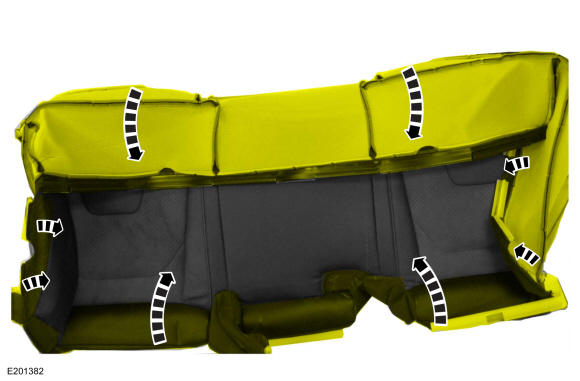

On both sides. Disengage the hook-and-loop and hook-and-arrow strips and remove the rear seat cushion trim cover.

Courtesy of FORD MOTOR COMPANY
