Module Communications Network

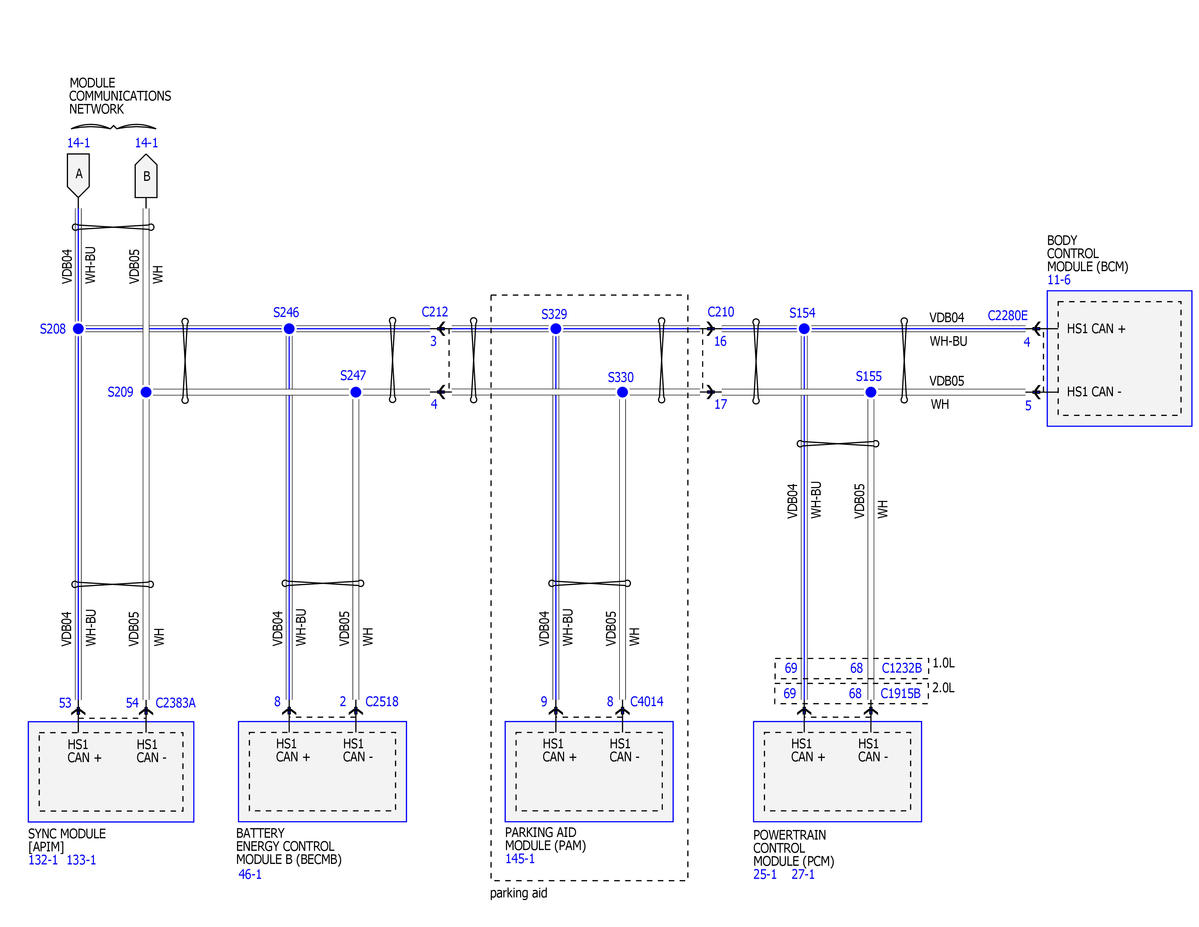

Fig 1: Module Communications Network Wiring Diagram (1 Of 5)
GFDWR27032Courtesy of FORD MOTOR COMPANY

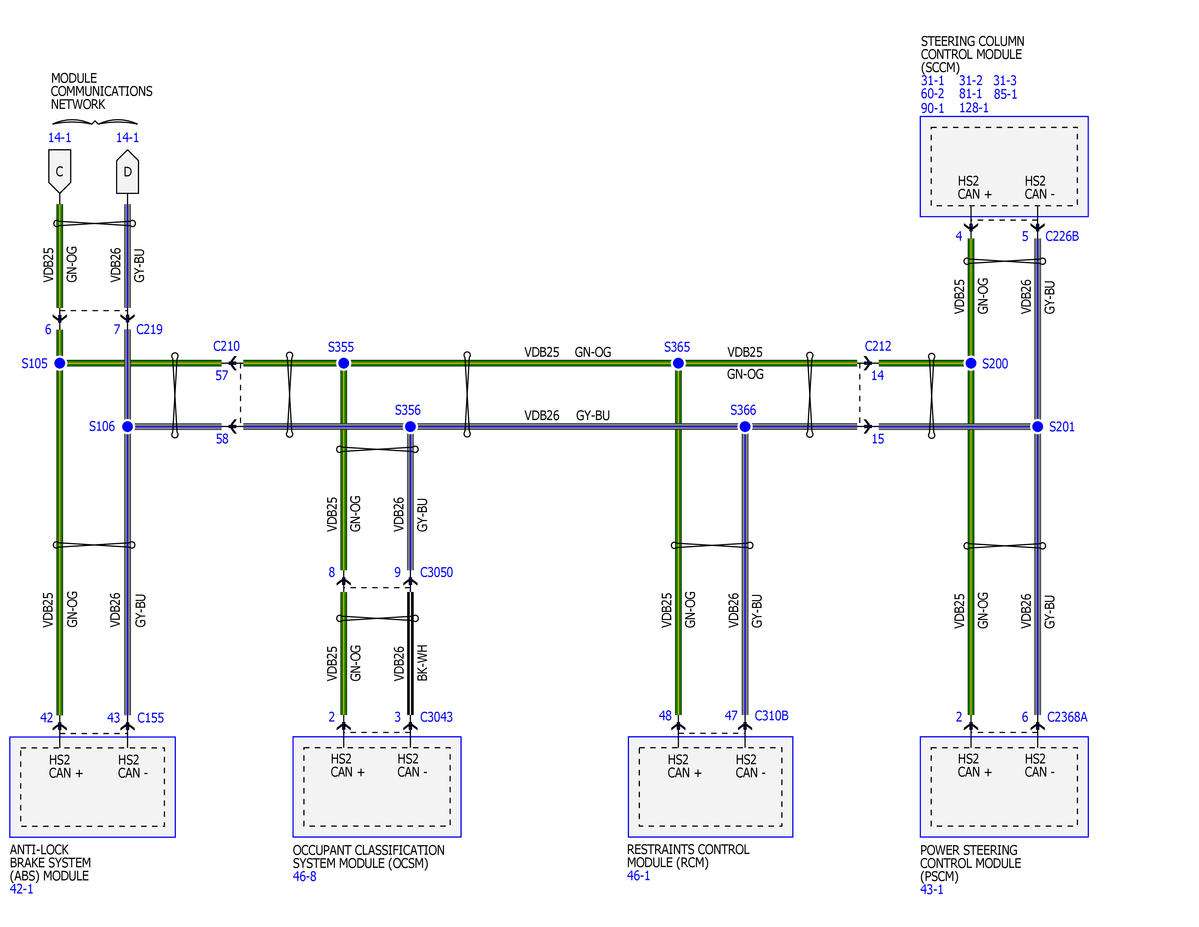

Fig 2: Module Communications Network Wiring Diagram (2 Of 5)
GFDWR27033Courtesy of FORD MOTOR COMPANY

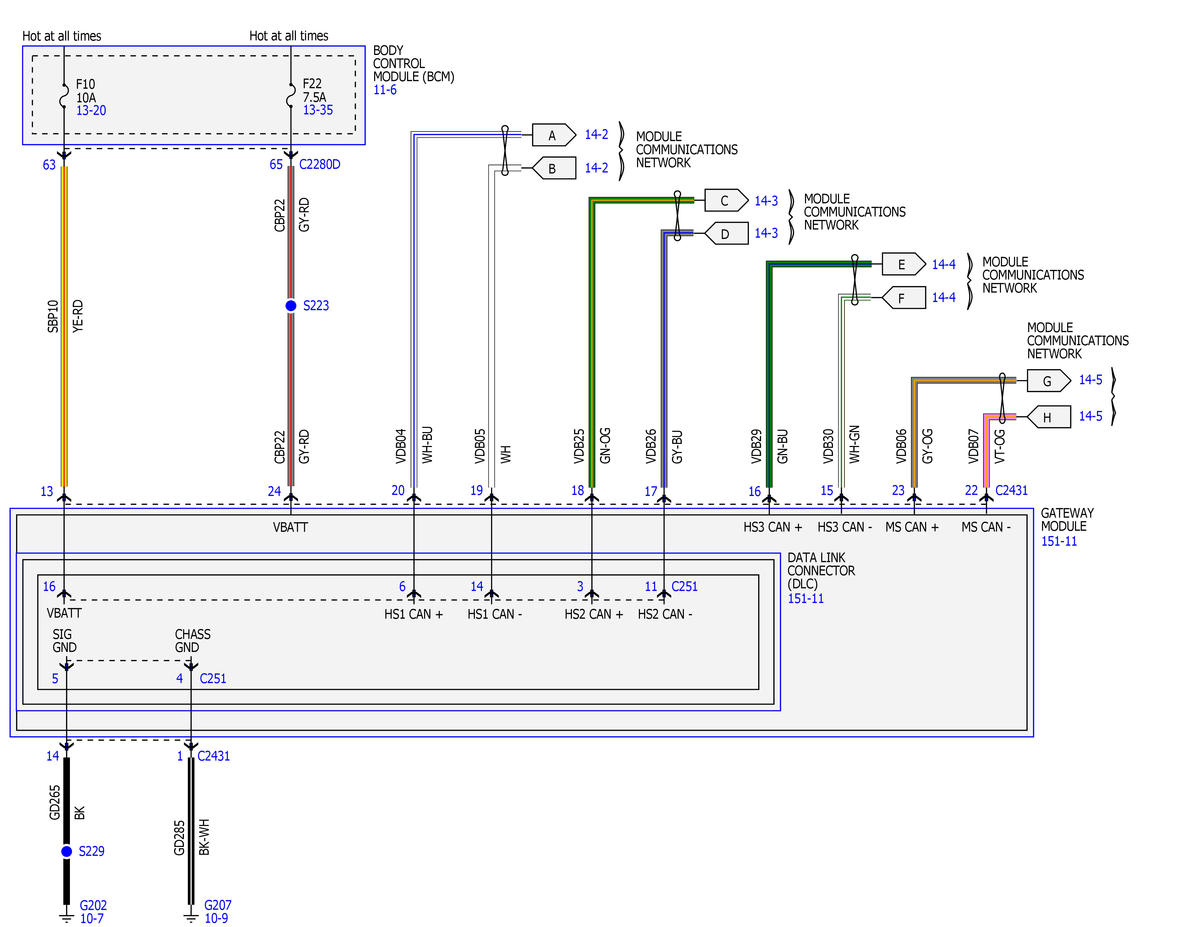

Fig 3: Module Communications Network Wiring Diagram (3 Of 5)
GFDWR27034Courtesy of FORD MOTOR COMPANY

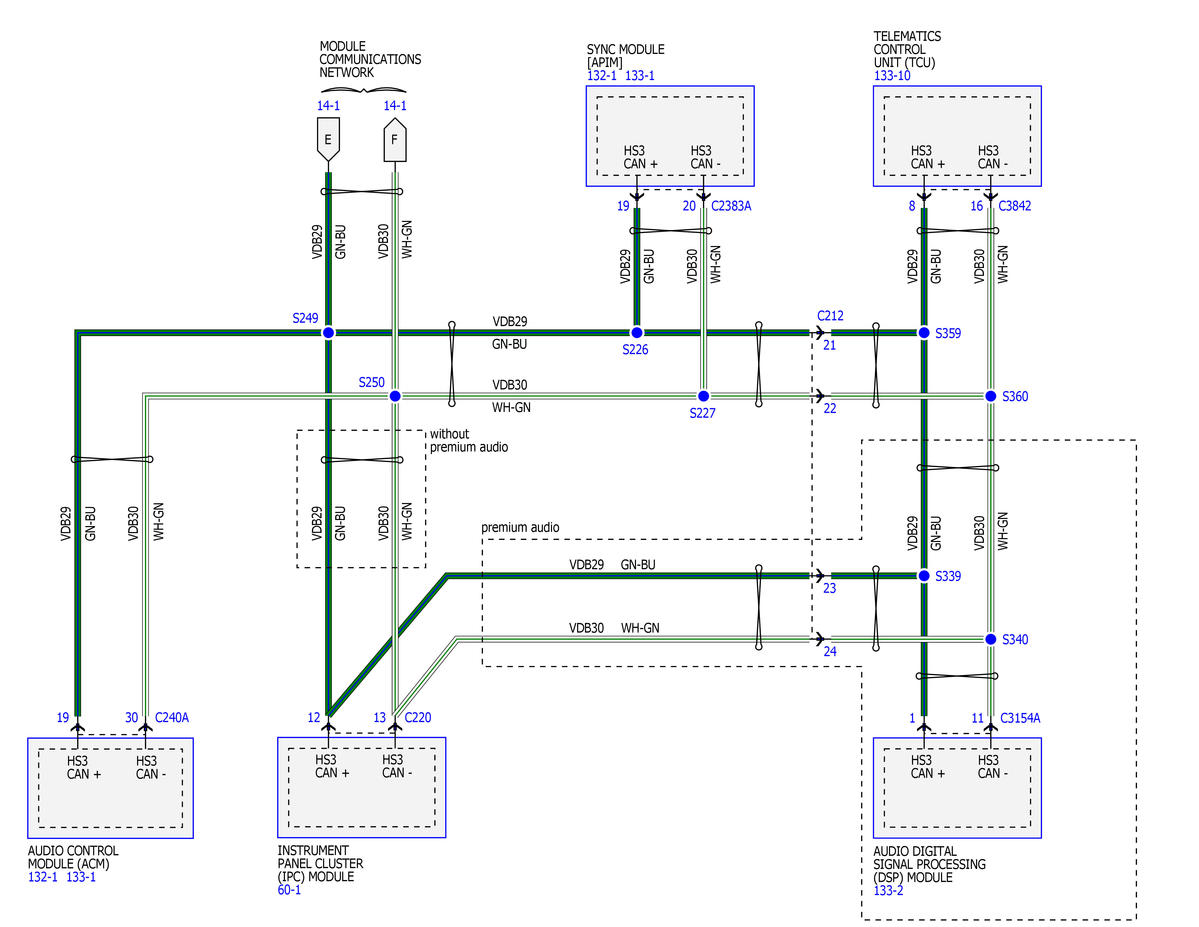

Fig 4: Module Communications Network Wiring Diagram (4 Of 5)
GFDWR27035Courtesy of FORD MOTOR COMPANY

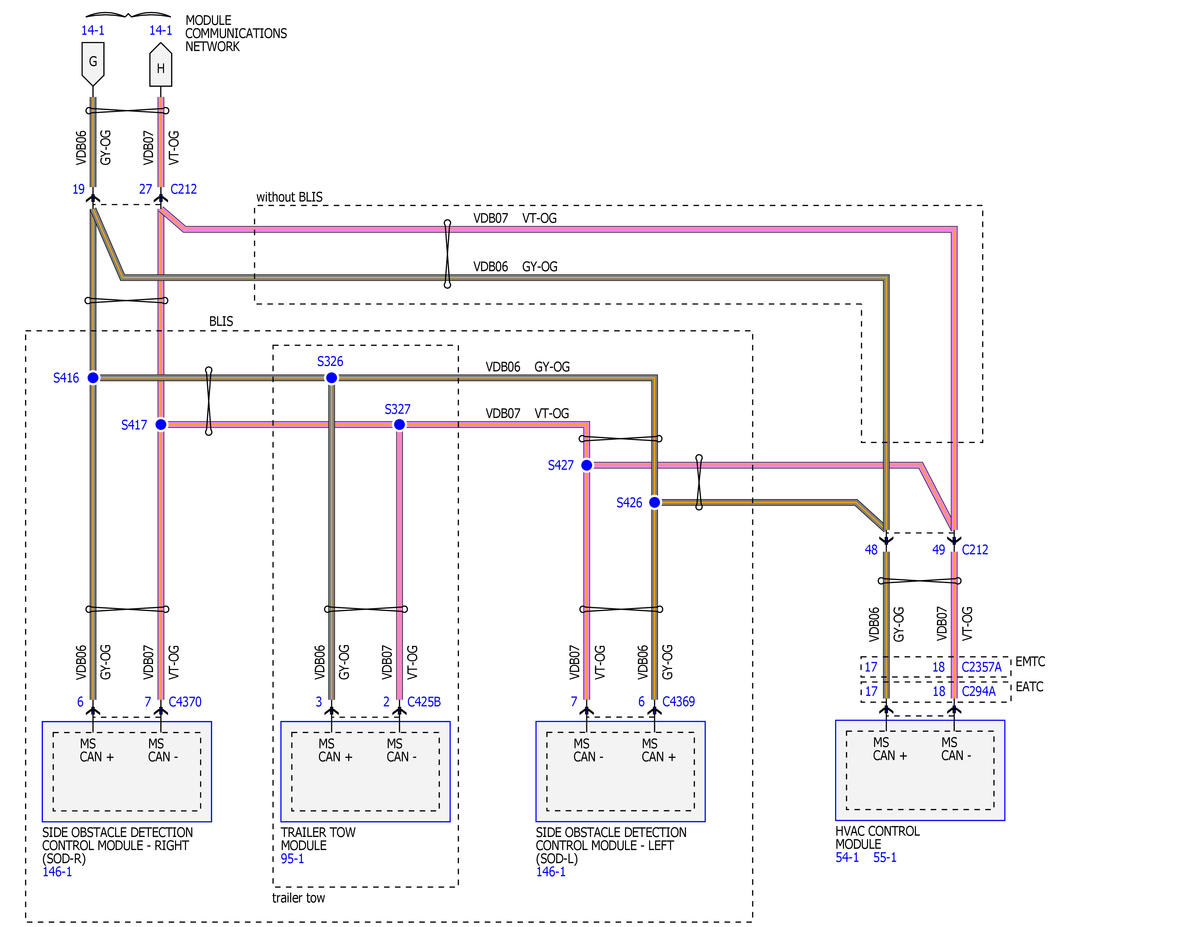

Fig 5: Module Communications Network Wiring Diagram (5 Of 5)
GFDWR27036Courtesy of FORD MOTOR COMPANY
