Transfer Case Draining and Filling

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Draining

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
2. If equipped. Remove the skid plate bolts and the skid plate.

   Courtesy of FORD MOTOR COMPANY

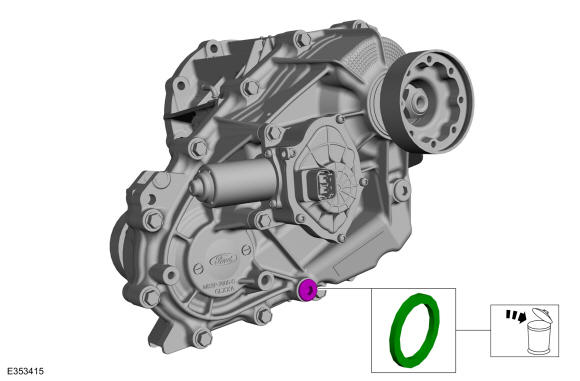

3. 1. Remove the drain plug and drain the fluid.
   2. NOTE: Make sure a new seal is used.

      Install the drain plug with new seal.

      Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

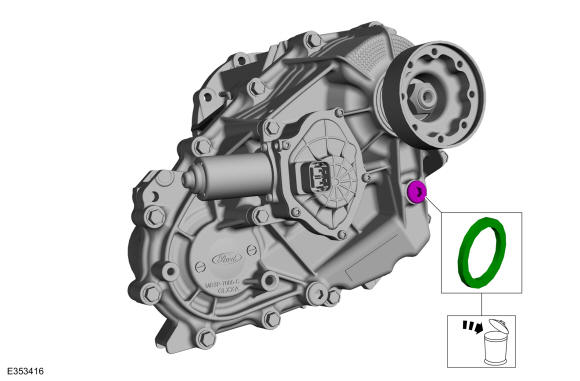

1. Remove the filler plug and discard the seal.

   Courtesy of FORD MOTOR COMPANY

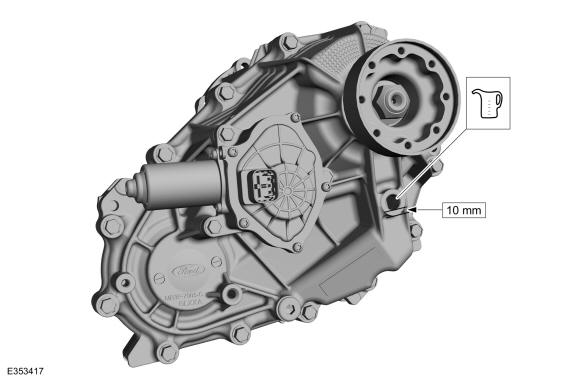

2. Fill the transfer case with specified fluid. The fluid must be filled to within 10 mm (0.393 in) of the fill plug hole. Refer to: Specifications .

   Courtesy of FORD MOTOR COMPANY

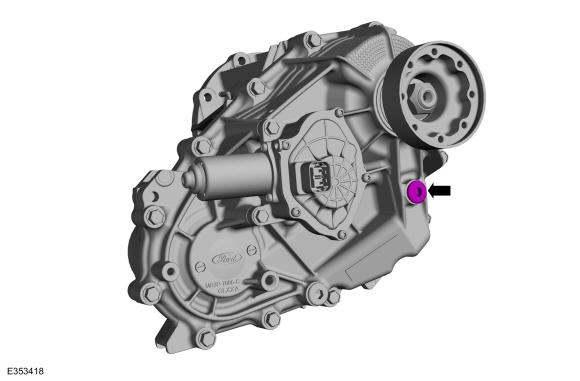

3. NOTE: Make sure a new seal is used.

   Install the filler plug.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

4. If equipped. Install the skid plate bolts and the skid plate.

   Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
