Pilot Bearing: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist.
- Remove the clutch disc and pressure plate. Refer to: Clutch Disc and Pressure Plate .

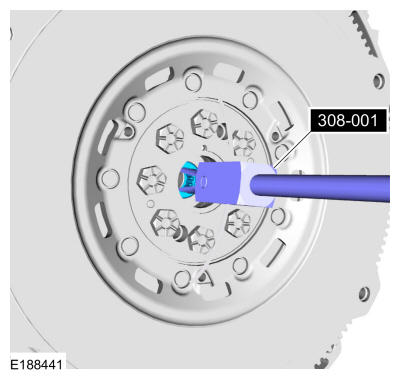

- Using the special tool and slide hammer, remove the pilot bearing.
Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing.
Use the General Equipment: Slide Hammer
