Throttle Body: Removal
WARNING: This page is about a different variant/trim than selected.

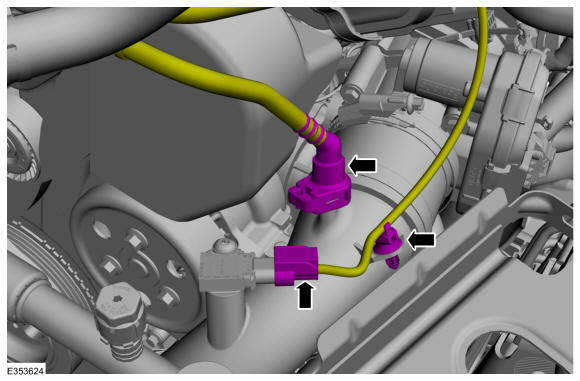

- Disconnect the electrical connector, the wire retainer and the quick release coupling. Refer to: Quick Release Coupling
.

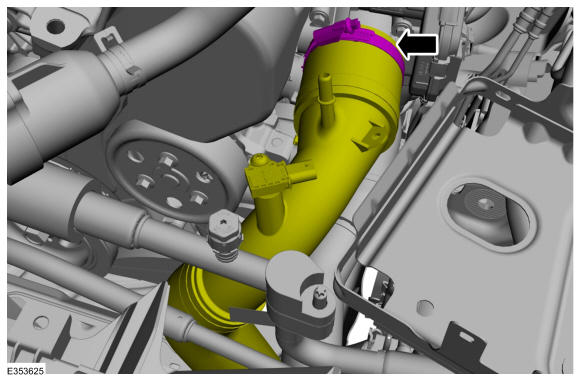

- Loosen the clamp, then move the charge air cooler outlet pipe out of the way.
-

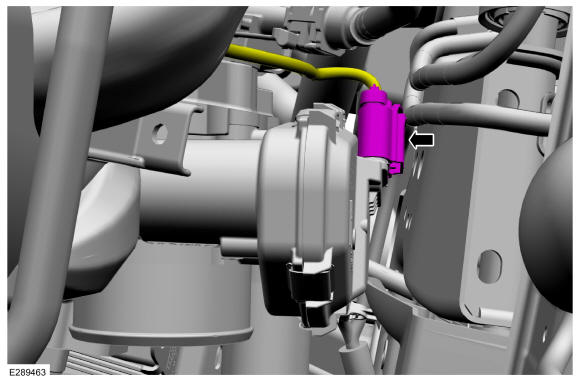

NOTE: When disconnecting the throttle body electrical connector disengage the red locking tab on the throttle body electrical connector by sliding it to the rear of the throttle body electrical connector, away from the throttle body. Squeeze the throttle body electrical connector while removing.
Disconnect the throttle body electrical connector.

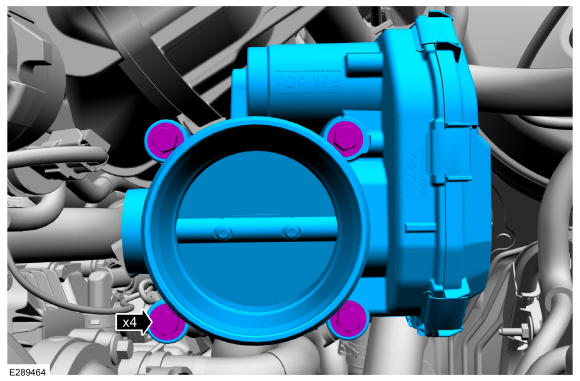

- Remove the throttle body bolts, then remove the throttle body.
