High-Pressure Fuel Pump: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.

NOTE: Do not loosen any fittings or plugs on the high-pressure fuel pump.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
Remove the intake manifold. Refer to: Intake Manifold .
1. Detach the wiring harness retainer from the rear engine lift eye.
2. Detach the wiring harness retainers and position aside.
Courtesy of FORD MOTOR COMPANY

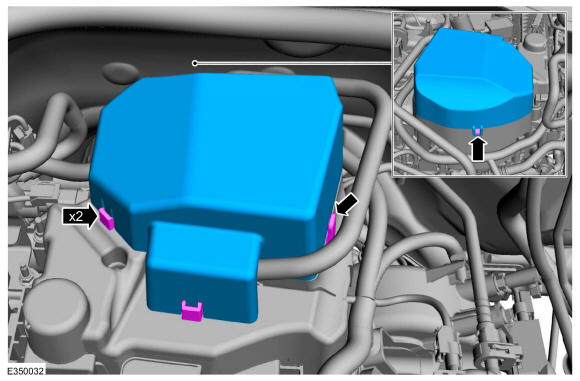

Release the tabs and remove the upper plastic and the foam high-pressure fuel pump cover.

Courtesy of FORD MOTOR COMPANY

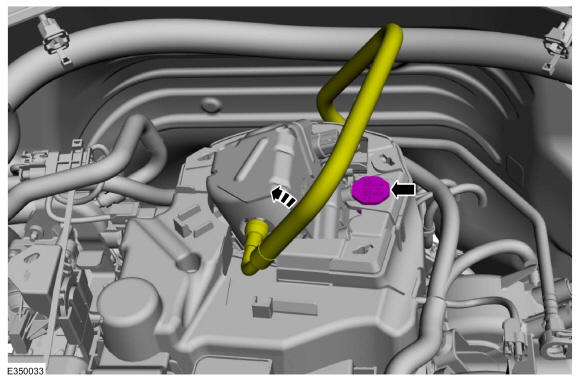

Remove the lower plastic and the foam high-pressure fuel pump cover retainer and position the fuel tube up.

Courtesy of FORD MOTOR COMPANY

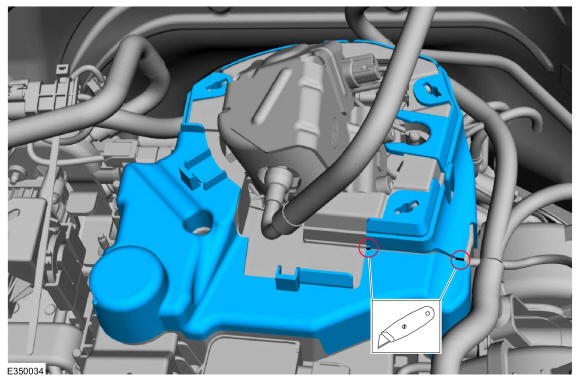

Using a knife, cut the lower plastic high-pressure fuel pump cover at the two positions shown, then remove the lower plastic high-pressure fuel pump cover. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY
1. Remove the lower foam high-pressure fuel pump cover retainer.
2. Using a knife, cut the lower foam high-pressure fuel pump cover at the position shown and remove. Use the General Equipment: Knife
Courtesy of FORD MOTOR COMPANY
Position the fuel tube down.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the high-pressure fuel pump bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

Remove the high-pressure fuel pump noise insulator.

Courtesy of FORD MOTOR COMPANY

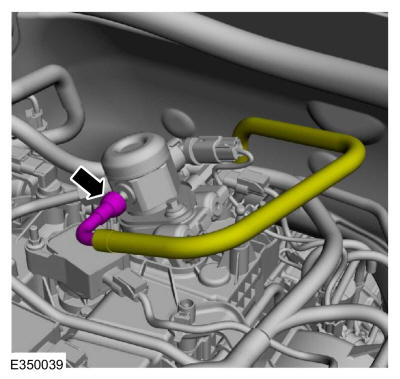

Disconnect the fuel tube spring lock coupling and position aside. Refer to: Spring Lock Couplings .

Courtesy of FORD MOTOR COMPANY

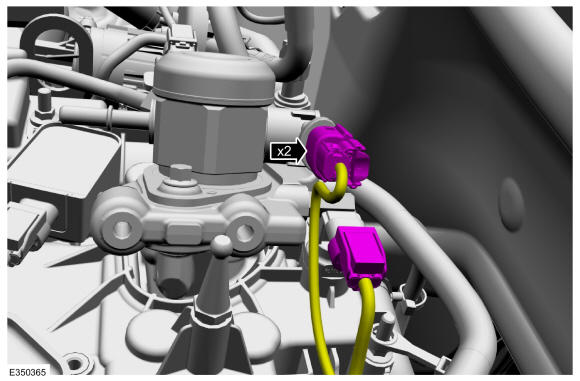

Disconnect the high-pressure fuel pump and the camshaft position sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

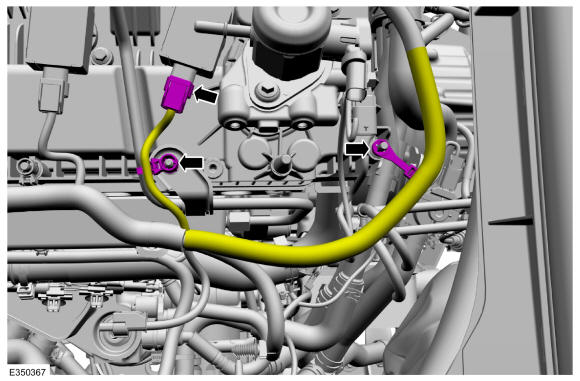

Disconnect the electrical connector, then detach the wiring harness retainers and move the wire harness out of the way.

Courtesy of FORD MOTOR COMPANY
NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel pump flare nut with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel pump flare nut.

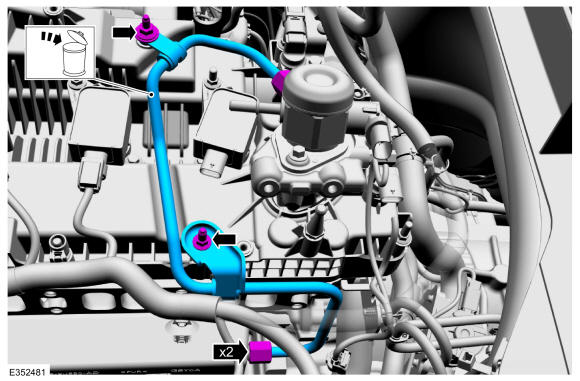

Remove the high-pressure fuel tube bracket studbolts. Loosen the high-pressure fuel tube flare nuts, then disconnect, remove and discard the high-pressure fuel tube.

Courtesy of FORD MOTOR COMPANY

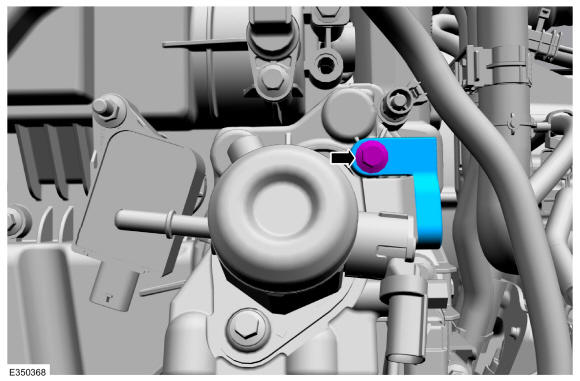

Remove the bolt, then remove the bracket.

Courtesy of FORD MOTOR COMPANY

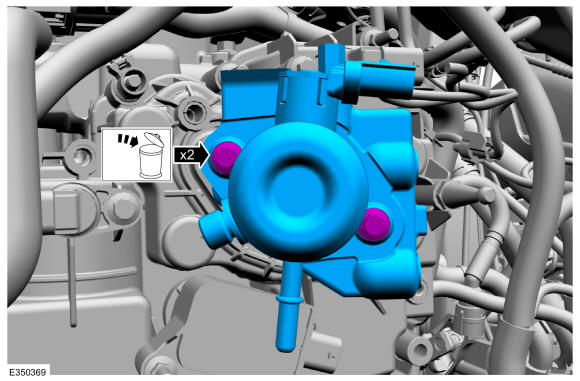

1. Alternately loosen the high-pressure fuel pump bolts one complete revolution at a time. Remove and discard the high-pressure fuel pump bolts.
2. Remove the high-pressure fuel pump with the mounting plate.
Courtesy of FORD MOTOR COMPANY

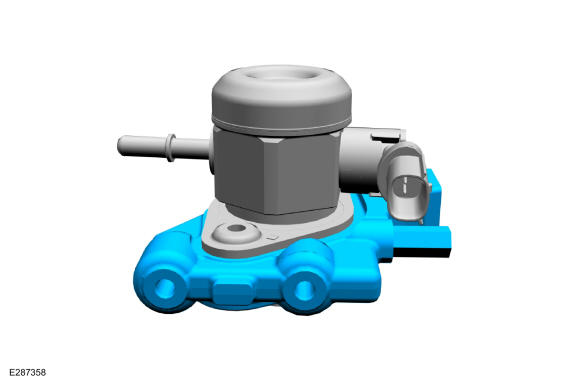

Remove the mounting plate from the high-pressure fuel pump.

Courtesy of FORD MOTOR COMPANY

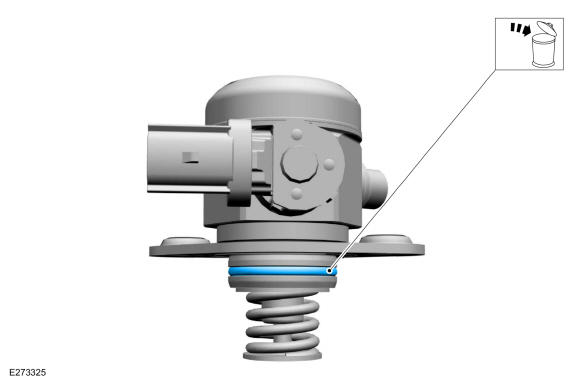

Remove and discard the high-pressure fuel pump O-ring seal.

Courtesy of FORD MOTOR COMPANY

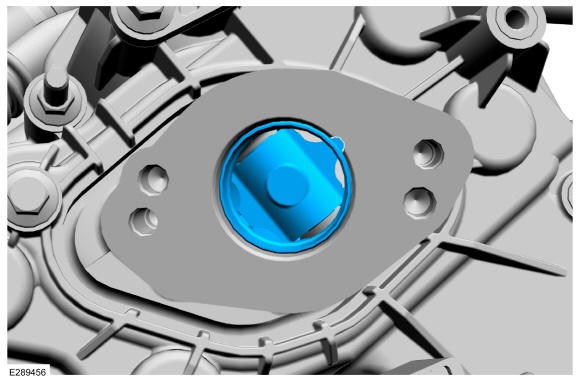

Remove the high-pressure fuel pump roller tappet.

Courtesy of FORD MOTOR COMPANY
