Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

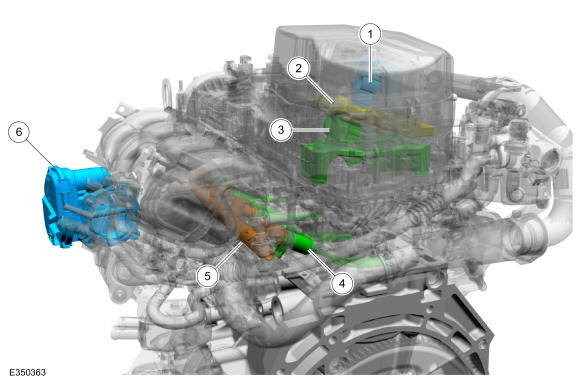

2.3L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
High-pressure fuel pump |
| 2 |
High-pressure fuel pump mounting plate |
| 3 |
High-pressure fuel pump drive unit |
| 4 |
Fuel injectors |
| 5 |
Fuel rail |
| 6 |
Throttle body |

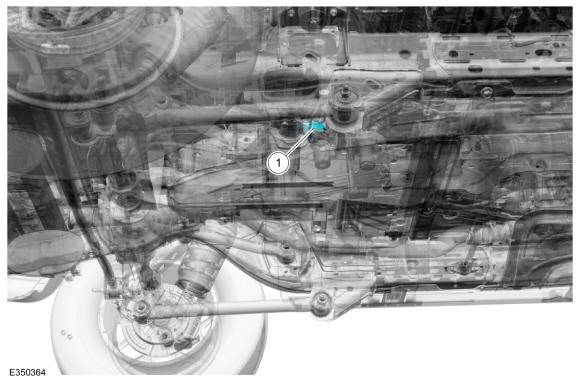

Fuel Pump Driver Module (FPDM)
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Fuel pump driver module (FPDM) |
