Exhaust Gas Recirculation (EGR) Valve: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

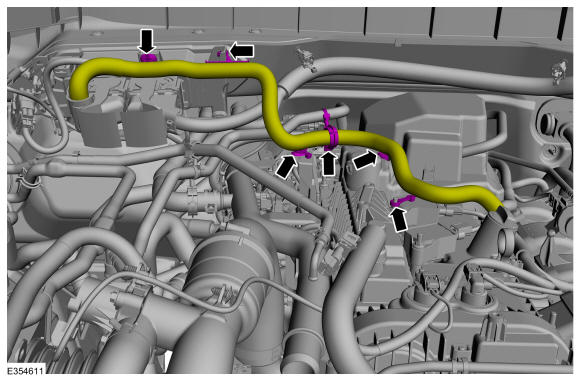

  1. Remove the wiring harness retainers and position aside the wiring harness.
    GFD625641Courtesy of FORD MOTOR COMPANY

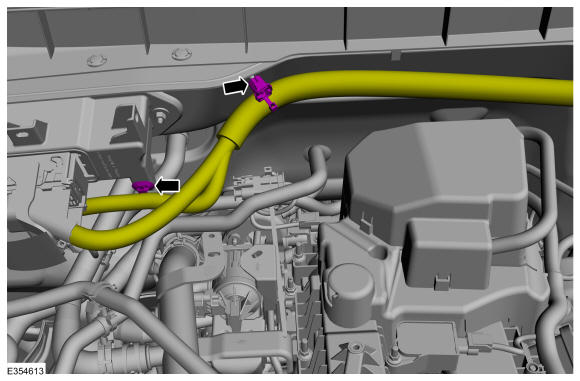

  2. Remove the wiring harness retainers and position aside the wiring harness.
    GFD625642Courtesy of FORD MOTOR COMPANY

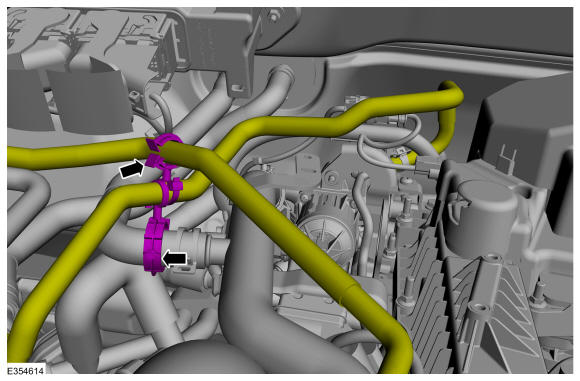

  3. Release the clips and position aside the coolant hoses.
    GFD625643Courtesy of FORD MOTOR COMPANY

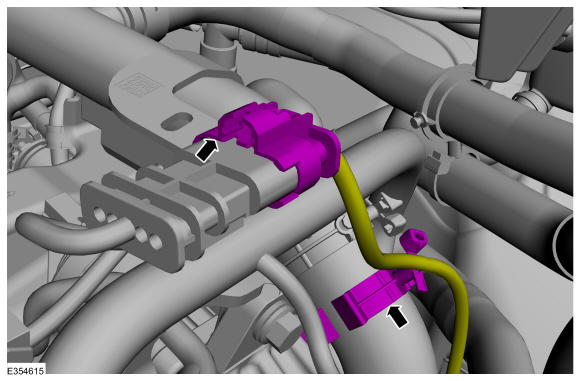

  4. Disconnect the HO2S electrical connector and wiring harness retainer.
    GFD625644Courtesy of FORD MOTOR COMPANY

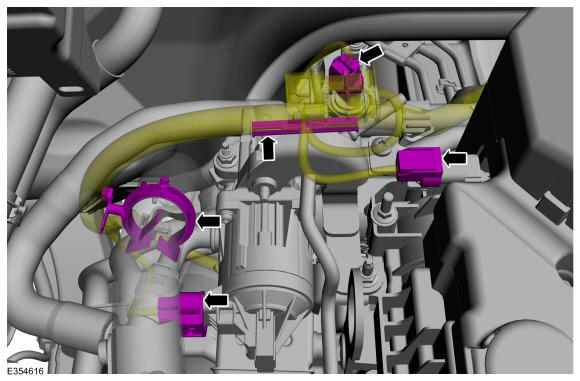

    • Disconnect the electrical connectors.

    • Detach the retainer and clip.

    GFD625645Courtesy of FORD MOTOR COMPANY
    1. Remove the fastener.

      Torque: 97 lb.in (11 Nm)

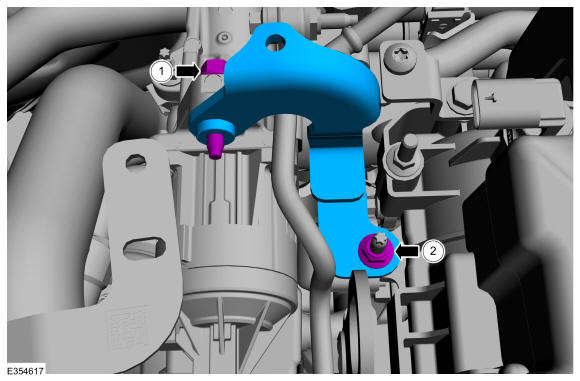

    2. Remove the fastener and bracket.

      Torque: 97 lb.in (11 Nm)

    GFD625646Courtesy of FORD MOTOR COMPANY

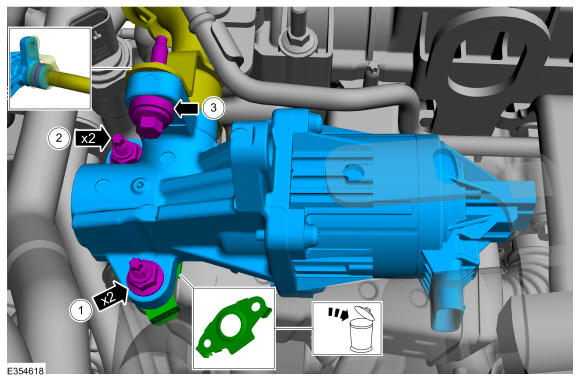

    1. Remove the EGR valve nuts.
    2. Remove the EGR valve studs.
    3. Remove the bolt.
    4. Remove the EGR valve and discard the gasket.
GFD625647Courtesy of FORD MOTOR COMPANY
