Exhaust Gas Recirculation (EGR) Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

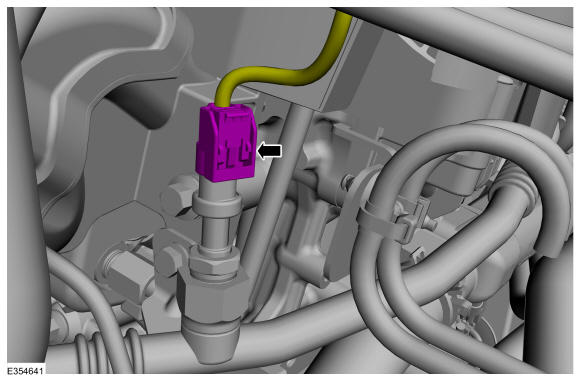

- Disconnect the wiring harness retainer and position aside the ground cable.
- Disconnect the quick release coupling. Refer to: Quick Release Coupling
.

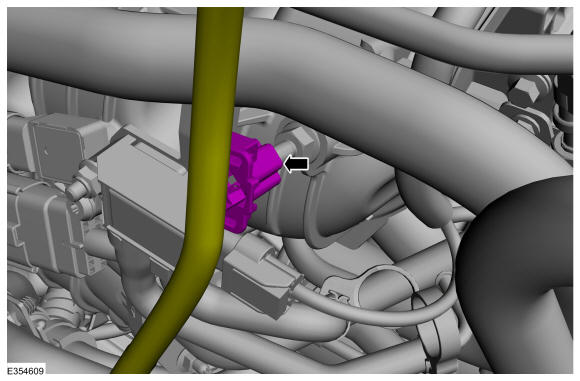

- Disconnect the EGR temperature sensor electrical connector.

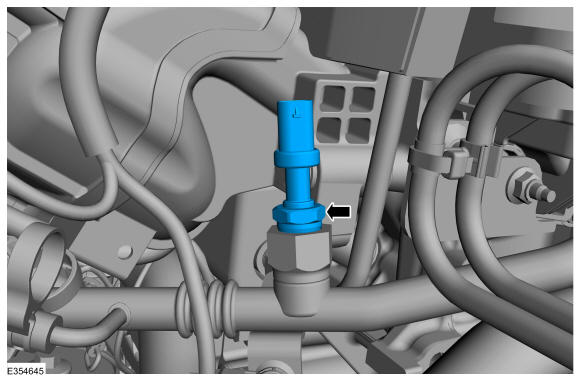

- Remove the EGR coolant outlet temperature sensor.
Torque: 133 lb.in (15 Nm)
