Exhaust Gas Recirculation (EGR) Inlet Tube: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .
Remove the fastener.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

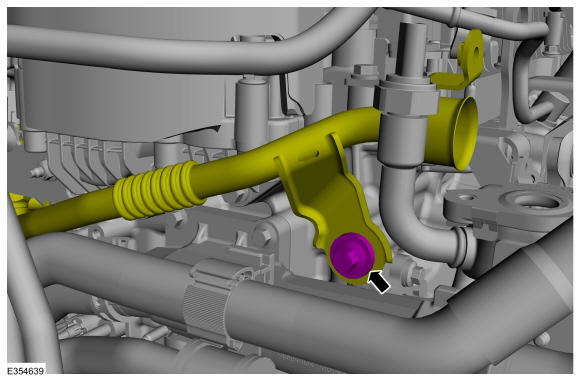

Disconnect the wiring harness retainer and position aside the ground cable.

Courtesy of FORD MOTOR COMPANY

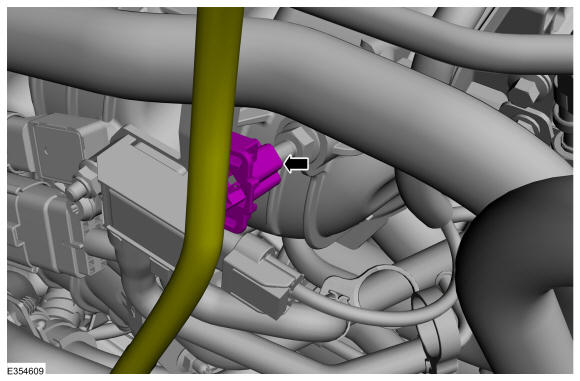

Disconnect the quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Disconnect the EGR temperature sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

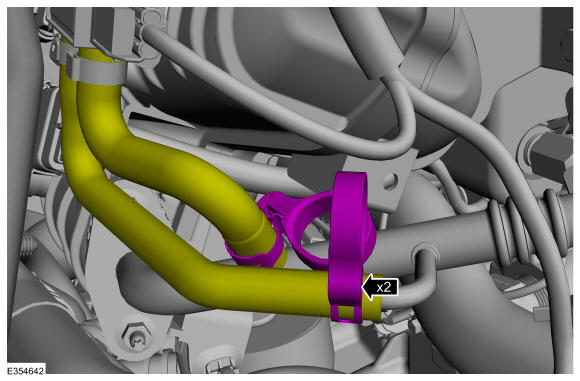

Loosen the clamps and position aside the differential pressure feedback sensor hoses.

Courtesy of FORD MOTOR COMPANY

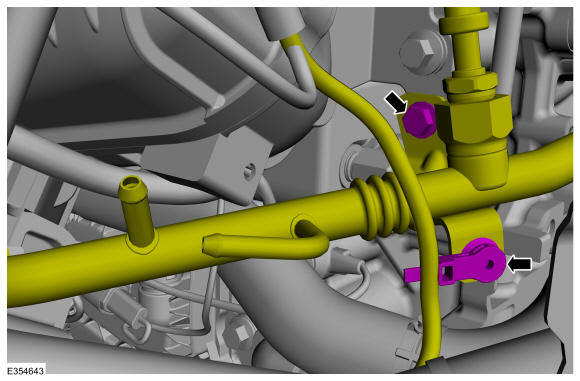

- Detach the retainers and position aside the wiring harness.
- Remove the fastener.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

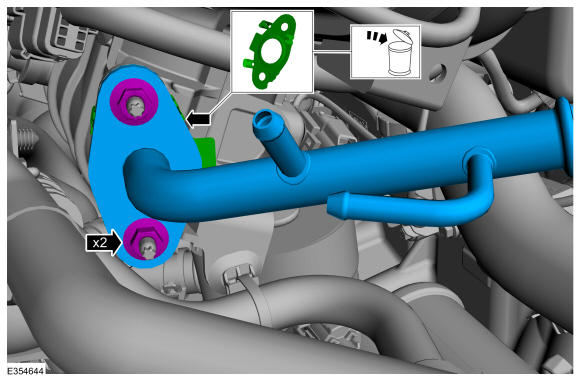

- Remove the fasteners and EGR inlet tube.
  Torque: 97 lb.in (11 Nm)
- Remove and discard the gasket.
