Exhaust Gas Recirculation (EGR) Cooler: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .

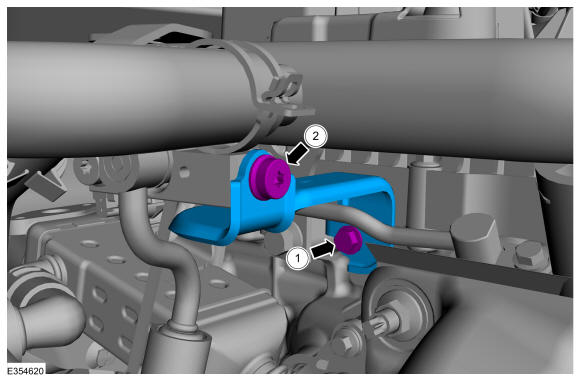

1. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
2. Remove the fastener and mounting bracket.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

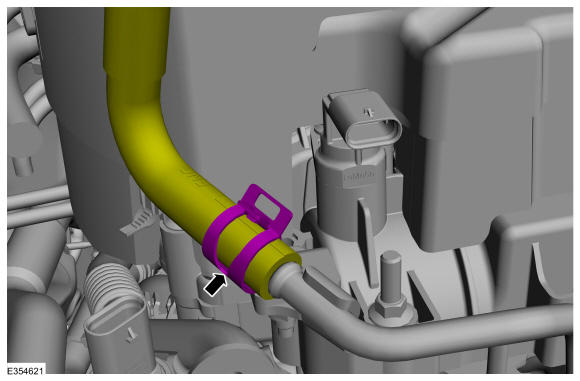

Disconnect the coolant tube.

Courtesy of FORD MOTOR COMPANY

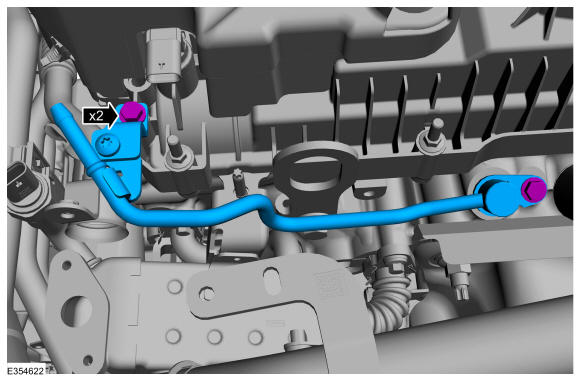

Remove the bolts and the coolant tube.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the coolant tube O-ring seal and replace if damaged.

Courtesy of FORD MOTOR COMPANY

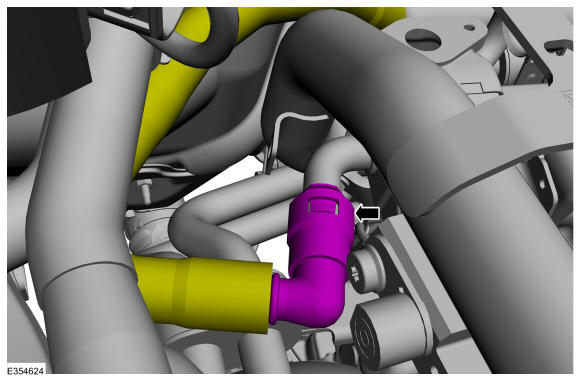

Disconnect the quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

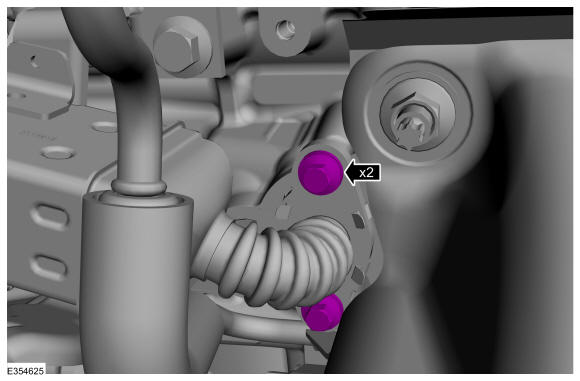

Remove the fasteners.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

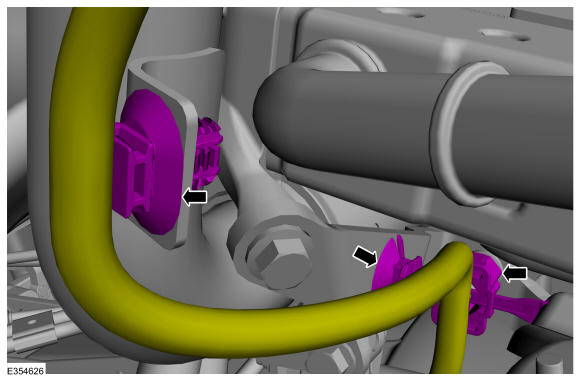

Detach the retainers and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

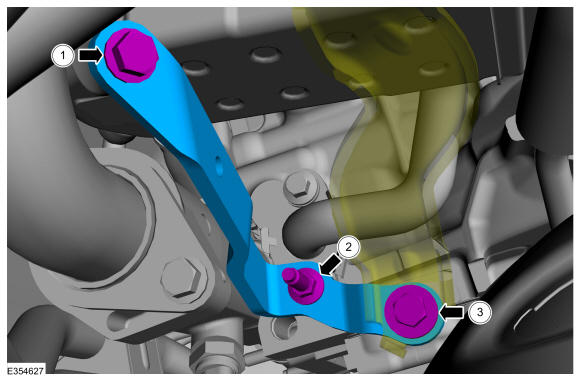

1. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
2. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
3. Remove the fastener and EGR mounting bracket.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

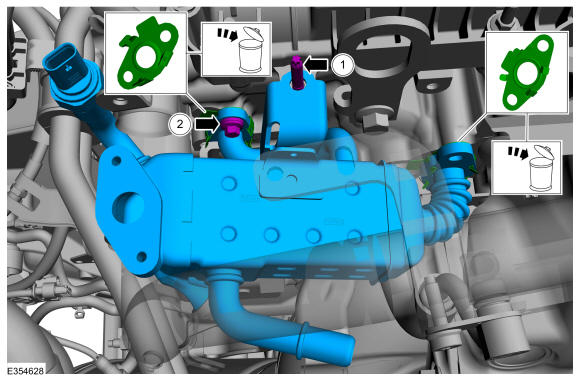

1. Remove the stud.
  Torque: 44 lb.in (5 Nm)
2. Remove the fastener and EGR cooler.
  Torque: 97 lb.in (11 Nm)
3. Remove and discard the gaskets.

Courtesy of FORD MOTOR COMPANY
