Exhaust Gas Recirculation (EGR) Back Pressure Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

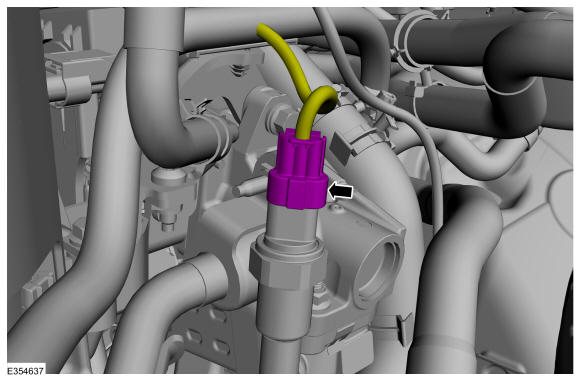

- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

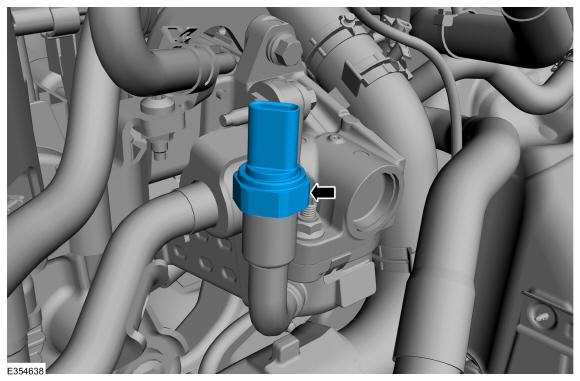

- Remove the EGR back pressure sensor.
Torque: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
