Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the retainer and position aside the ground cable.

Courtesy of FORD MOTOR COMPANY

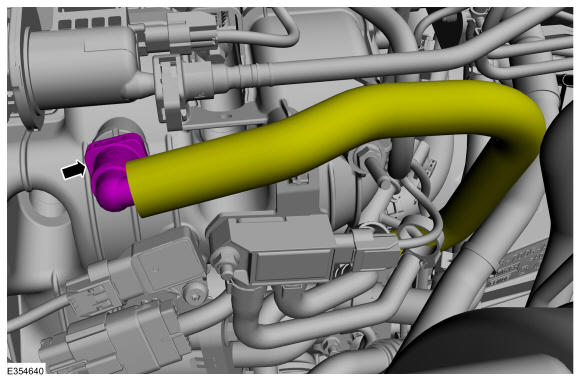

Disconnect the quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

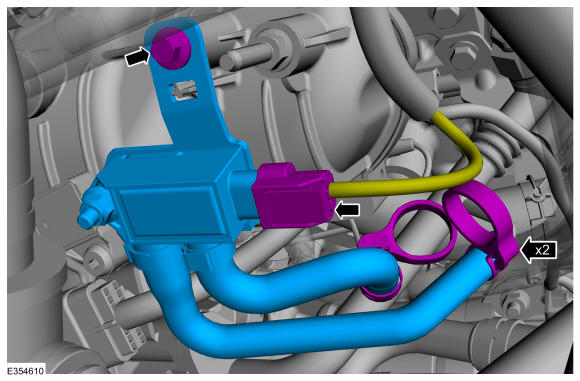

- Disconnect the electrical connector.
- Loosen the clamps and position aside the differential pressure sensor hoses.
- Remove the fastener and differential pressure feedback EGR sensor.
  Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
