Crankcase Ventilation Tube: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The crankcase vent tube may have either a permanent or quick connect connector at one or both ends. If the tube needs to be removed for any reason, the permanent connector(s) must be cut to remove the tube. The tube will then need to be replaced.

NOTE: If the crankcase vent tube is replaced, the replacement part may not come with a crankcase pressure sensor. If so, the PCM will need to be reprogrammed.

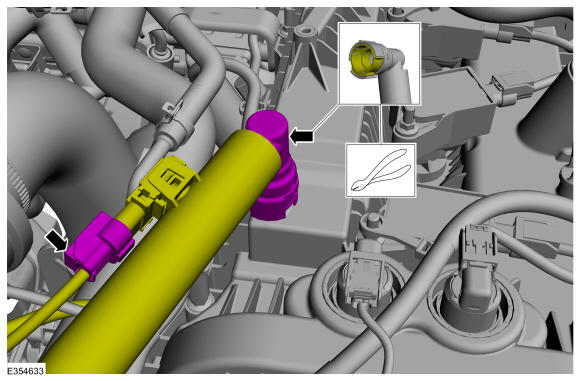

- Disconnect the electrical connector.
- Cut the lock tab. Use the General Equipment: Side Cutter Pliers
Courtesy of FORD MOTOR COMPANY

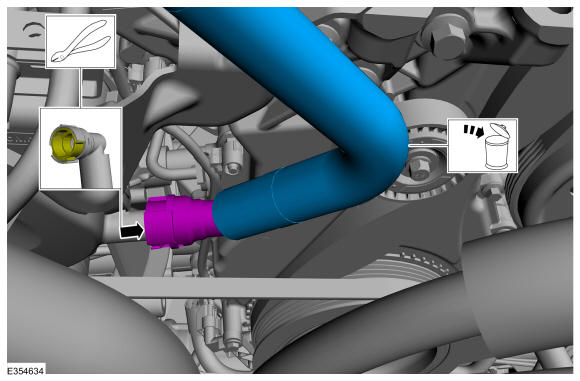

- Cut the lock tab. Use the General Equipment: Side Cutter Pliers
- Remove and discard the crankcase vent tube.

Courtesy of FORD MOTOR COMPANY
