Crankcase Vent Oil Separator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .

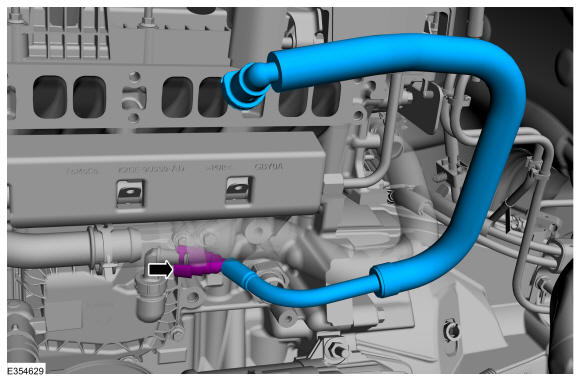

- Disconnect the quick release coupling and remove the hose. Refer to: Quick Release Coupling
.

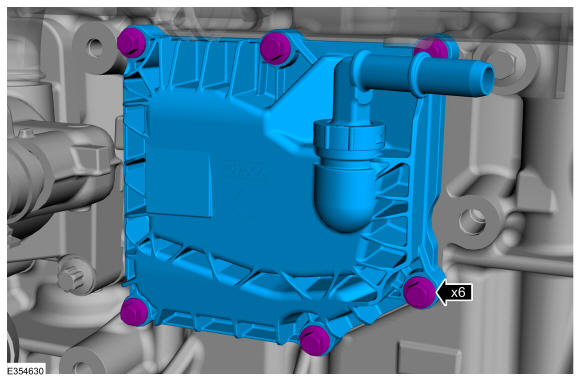

- Remove the fasteners and crankcase vent oil separator.

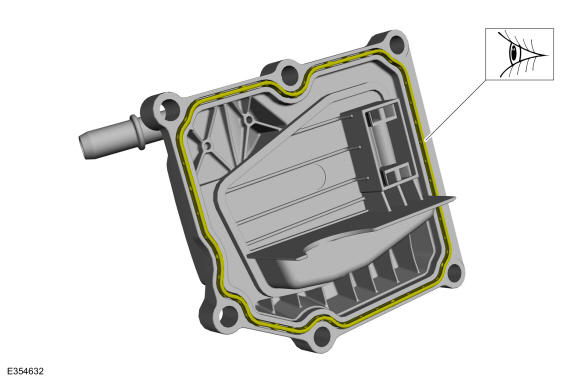

- Inspect the crankcase vent oil separator gasket.
