Crankcase Vent Oil Separator: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the crankcase vent oil separator and tighten in the sequence shown in illustration.

    Torque: 97 lb.in (11 Nm)

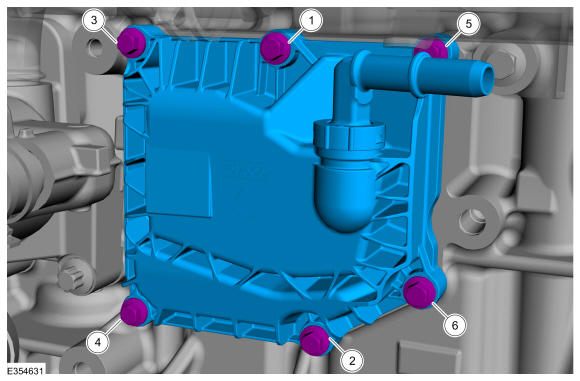

    Fig 1: Crankcase Vent Oil Separator Tightening Sequence
    GFD625618Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
