Engine Emission Control - Component Location
WARNING: This page is about a different variant/trim than selected.

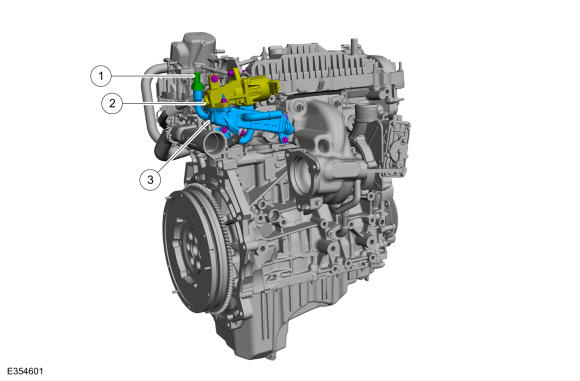

EGR system
| Item | Description |
|---|---|
| 1 | EGR back pressure sensor. |
| 2 | EGR valve. |
| 3 | EGR cooler. |

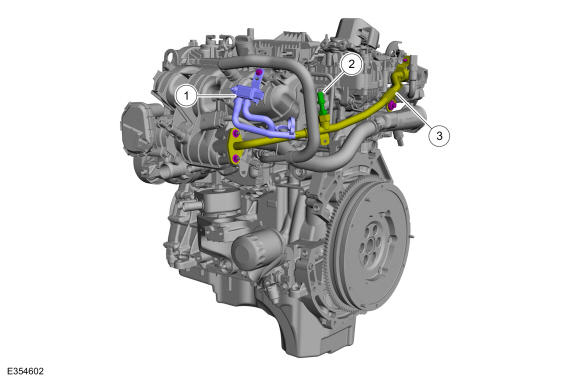

EGR system
| Item | Description |
|---|---|
| 1 | Differential pressure feedback EGR sensor. |
| 2 | EGR temperature sensor. |
| 3 | EGR outlet tube. |

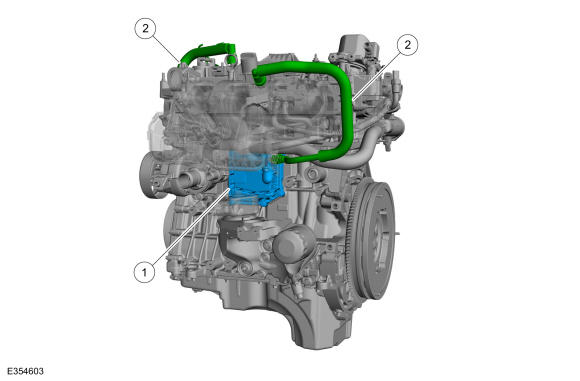

Crankcase Vent Oil Separator
| Item | Description |
|---|---|
| 1 | Crankcase vent oil separator. |
| 2 | Crankcase vent hose. |
