Transmission Fluid Heater Coolant Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. GFD625261Courtesy of FORD MOTOR COMPANY
    GFD625214Courtesy of FORD MOTOR COMPANY

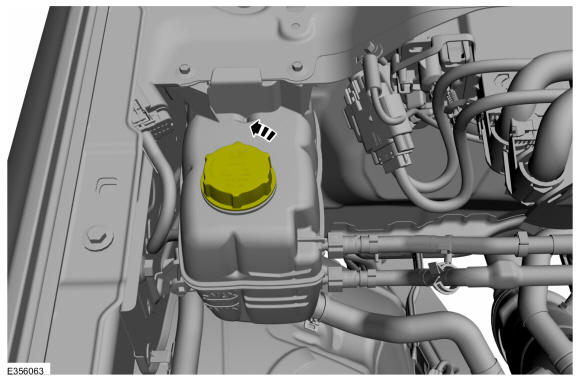

    WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Loosen the pressure relief cap.

    GFD625262Courtesy of FORD MOTOR COMPANY

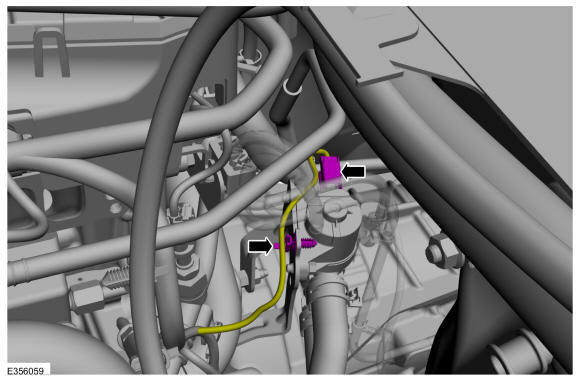

  2. Detach the wiring harness retainer and disconnect the coolant control valve electrical connector.
    GFD625263Courtesy of FORD MOTOR COMPANY

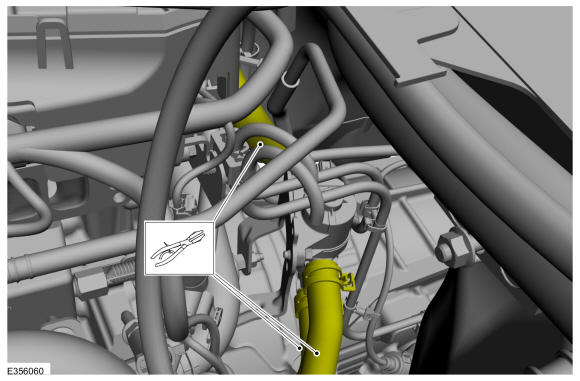

  3. Clamp off the coolant control valve hoses.
    GFD625264Courtesy of FORD MOTOR COMPANY

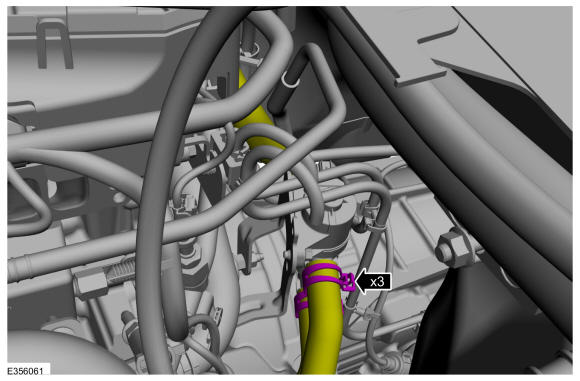

  4. Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD625265Courtesy of FORD MOTOR COMPANY

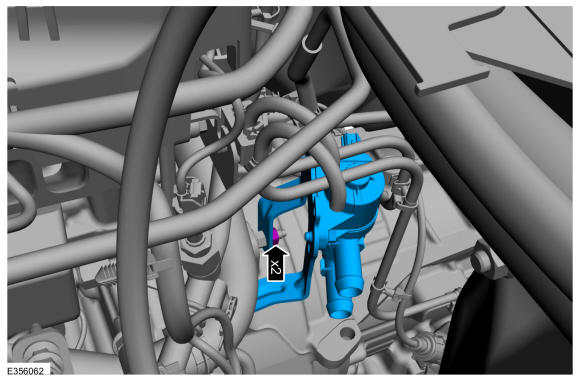

  5. Remove the nuts and the transmission fluid heater coolant control valve.

    Torque: 155 lb.in (17.5 Nm)

GFD625266Courtesy of FORD MOTOR COMPANY
