Removal And Installation: Thermostat: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the throttle body. Refer to: Throttle Body .
- Cover the alternator with plastic to protect internals of alternator from the residual coolant.
-

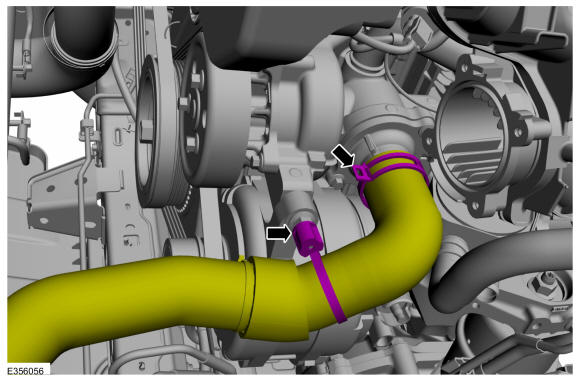

- Detach the coolant hose retainer.
- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

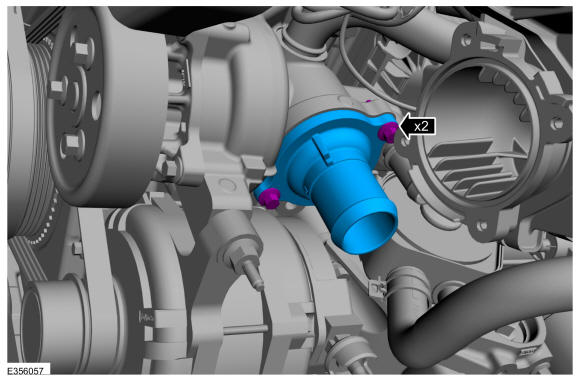

- Remove the bolts and the thermostat inlet connector.
Torque: 93 lb.in (10.5 Nm)
-

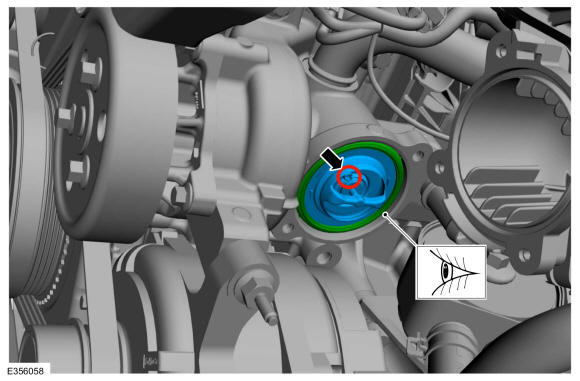

NOTE: During installation verify the thermostat vent hole is at the 11 o'clock position
Remove the thermostat. Inspect the O-ring seal and replace if necessary.
