Radiator Lower Hose: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
- Cover the alternator with plastic to protect internals of alternator from the residual coolant.
-
NOTE: Throttle body removed for clarity.

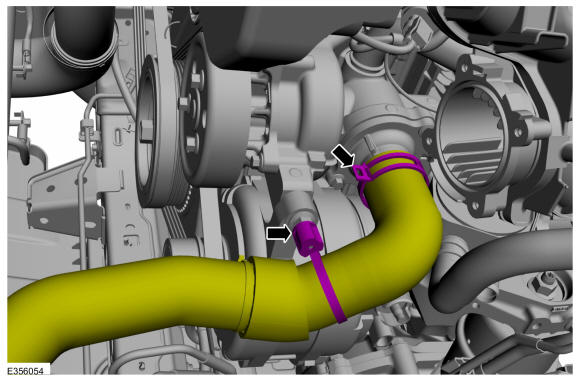

- Detach the coolant hose retainer.
- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

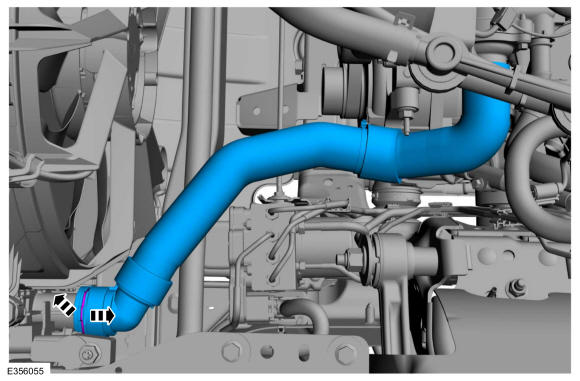

- Pull the lower radiator hose spring clip until the end of the clip is in the detent on the quick connect coupling and remove the lower radiator hose.
