Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

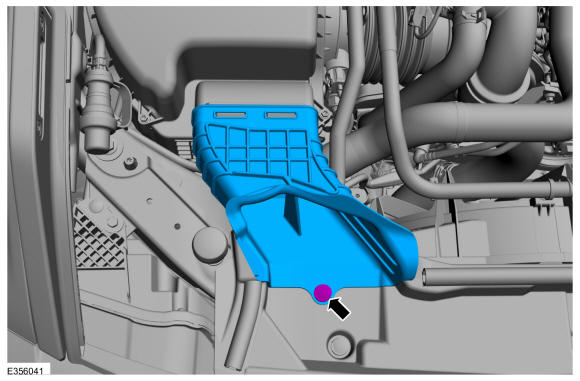

- Remove the pushpin and the air intake duct.

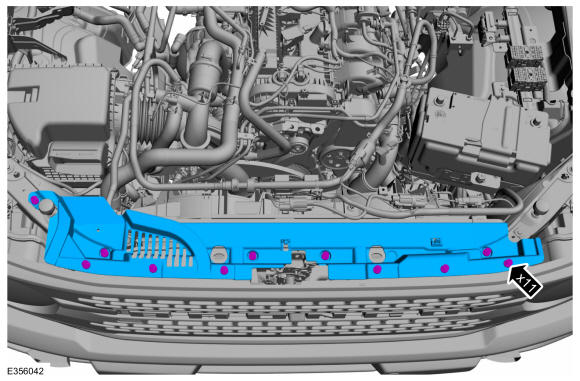

- Remove the pushpins and the upper radiator shield.
- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
-

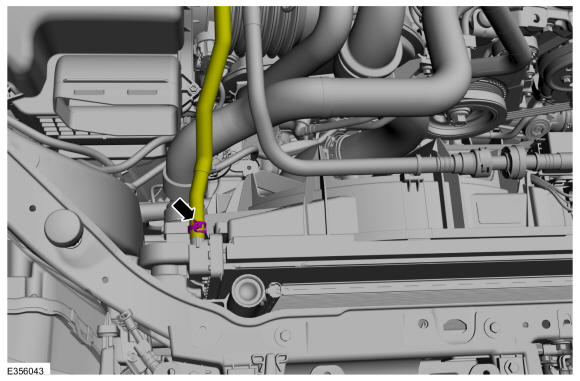

- Disconnect the electrical connector.

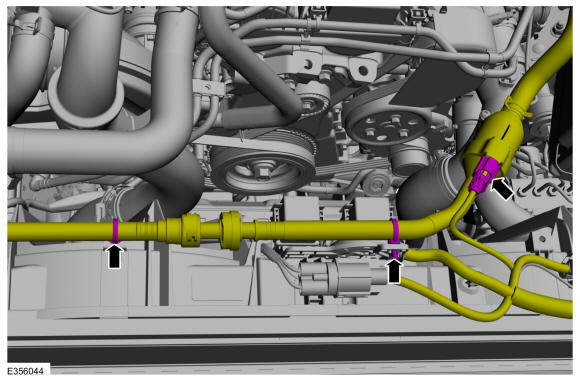

- Detach the EVAP tube retainers.

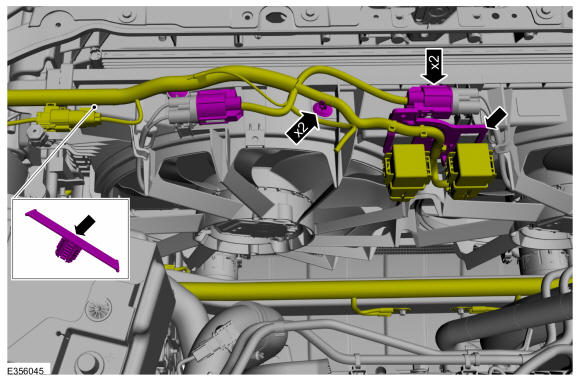

- Disconnect the electrical connectors, detach the pin-type retainers and position the wiring harness aside.

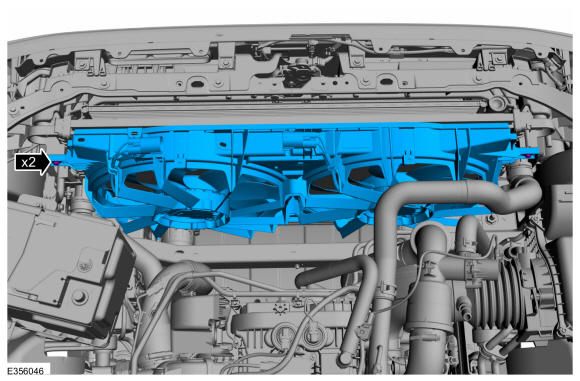

- Remove the bolts and the cooling fan motor and shroud.
Torque: 62 lb.in (7 Nm)
