Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

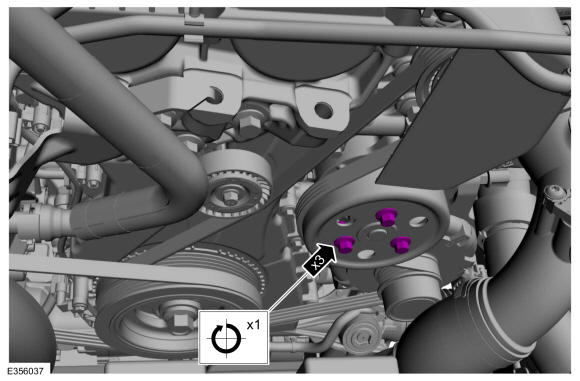

- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .

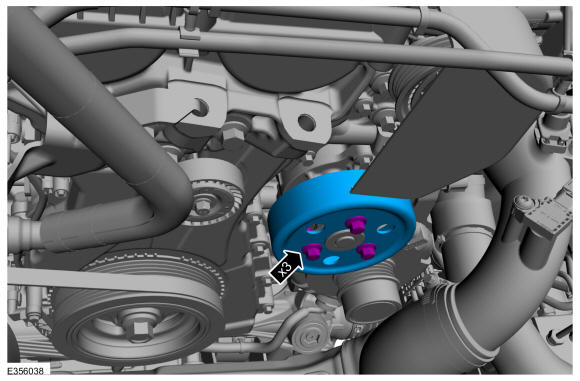

- Remove the bolts and the coolant pump pulley.
-
NOTE: Make sure that the mating faces are clean and free of foreign material.

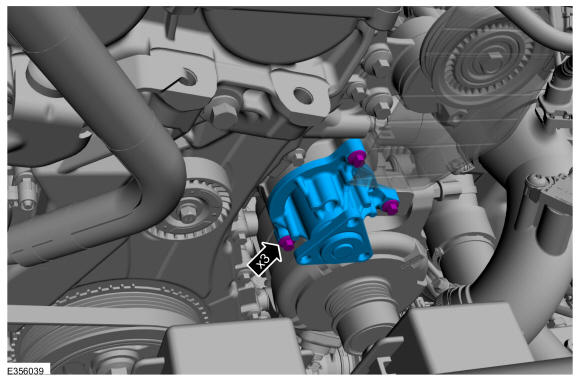

Remove the bolts and the coolant pump.

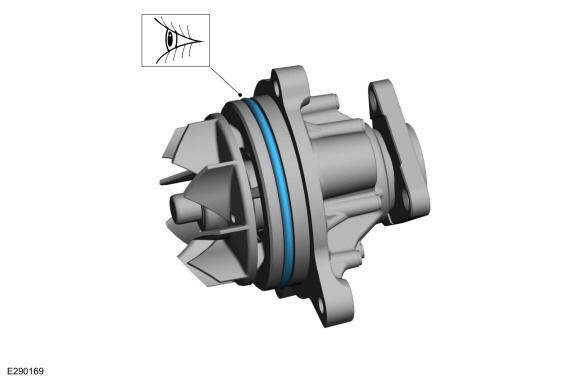

- Inspect the O-ring seal and replace if necessary.
