Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.

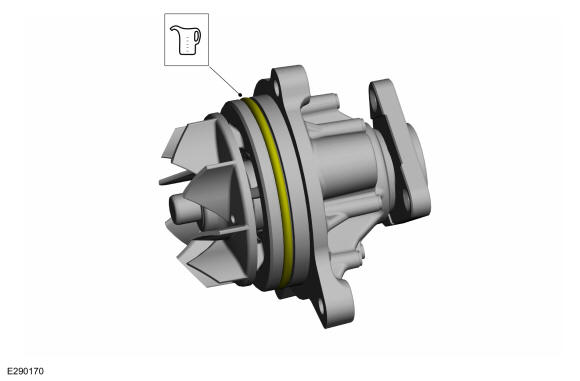

- Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .
-
NOTE: Make sure that the mating faces are clean and free of foreign material.
Install the coolant pump and the bolts.
Torque: 93 lb.in (10.5 Nm)

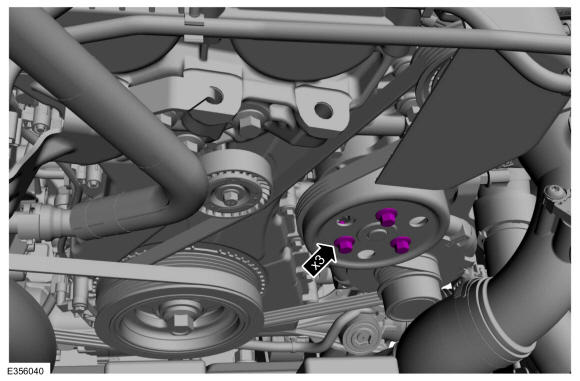

- Position the coolant pump pulley and install the bolts finger tight.
- Install the accessory drive belt. Refer to: Accessory Drive Belt .
- Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
