Coolant Outlet Connector: Installation

WARNING: This page is about a different variant/trim than selected.

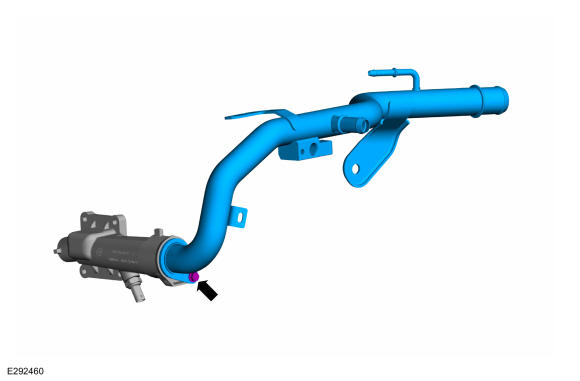

Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the coolant outlet pipe and the bolt.

Courtesy of FORD MOTOR COMPANY

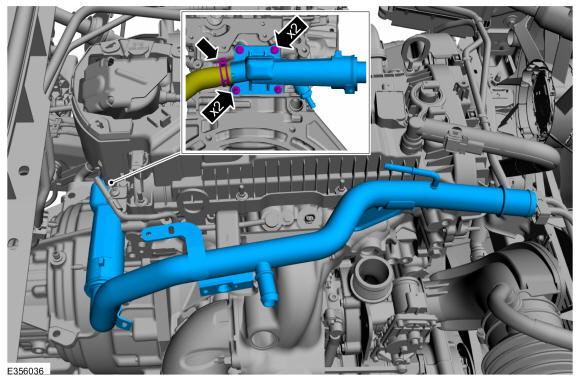

- Install the coolant outlet connector and outlet pipe assembly and the bolts, studbolts.
  Torque: 93 lb.in (10.5 Nm)
- Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

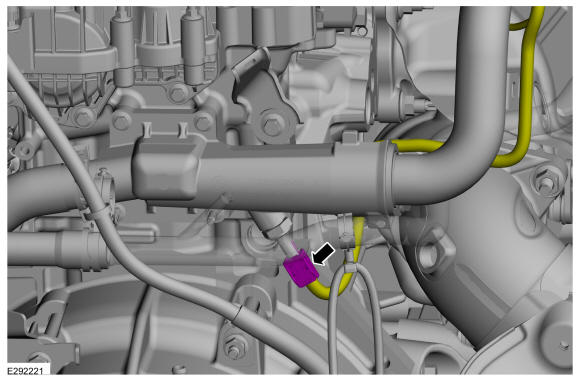

Connect the electrical connector.

Courtesy of FORD MOTOR COMPANY

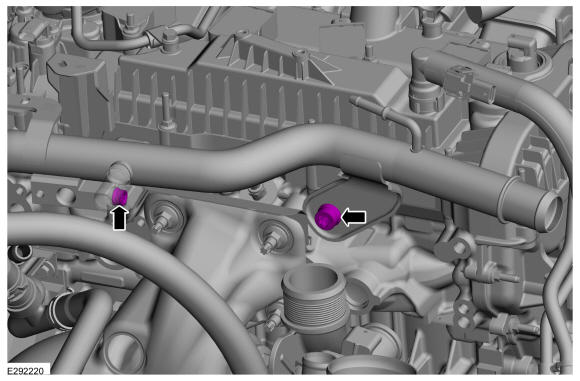

Install the bolts.
Torque: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

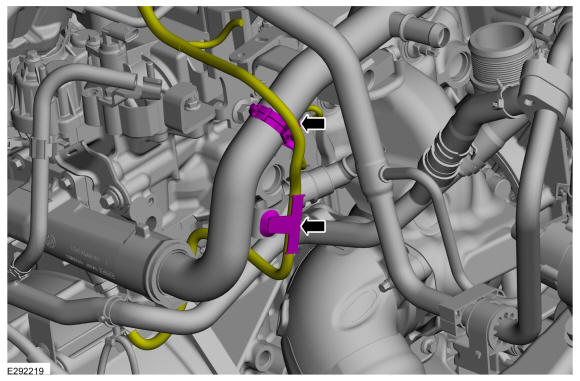

Attach the electrical wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Install the EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Cooler .

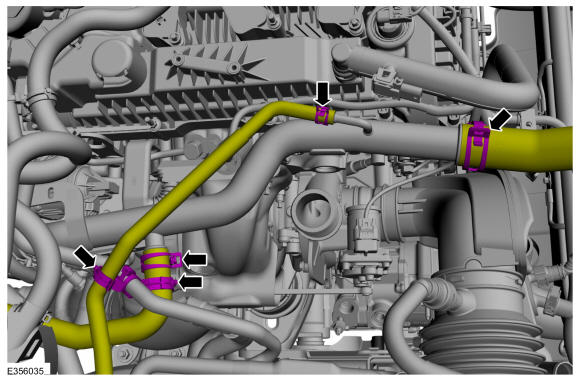

- Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Attach the coolant hose retainers.
Courtesy of FORD MOTOR COMPANY

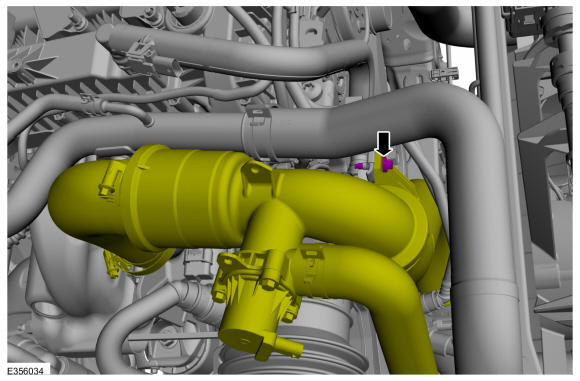

Position the CAC tube and install the bolt.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

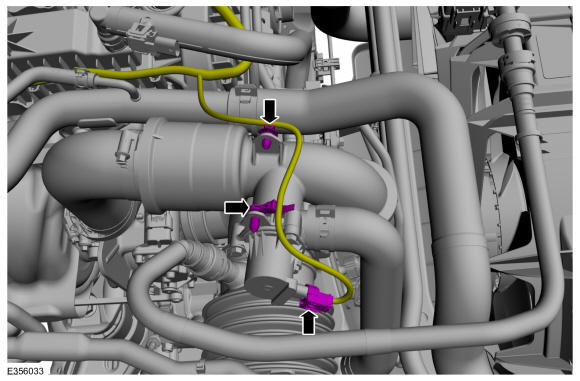

- Connect the electrical connector.
- Attach the electrical wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
