Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
NOTE:
Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38 deg. C (100 deg. F). Red arrows indicate a temperature over 82.2 deg. C (180 deg. F), Orange arrows indicate a temperature of approximately 82.2 deg. C (180 deg. F), Blue arrows indicate a temperature below 82.2 deg. C (180 deg. F).

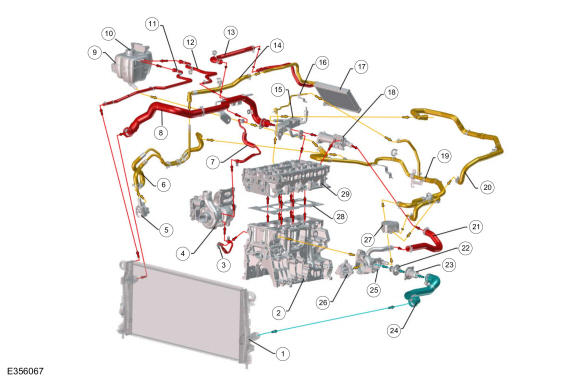

Vehicle with manual transmission
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Cylinder block |
| 3 | Turbocharger inlet hose |
| 4 | Turbocharger |
| 5 | Cabin coolant heater pump |
| 6 | Cabin coolant heater pump hose assembly |
| 7 | Turbocharger outlet hose |
| 8 | Upper radiator hose |
| 9 | Degas bottle |
| 10 | Pressure relief cap |
| 11 | Radiator-to-degas bottle hose |
| 12 | Engine degas bottle hose |
| 13 | Heater core inlet hose |
| 14 | Heater core outlet hose |
| 15 | EGR cooler |
| 16 | Cylinder head/integrated exhaust manifold coolant outlet tube |
| 17 | Heater core |
| 18 | Coolant outlet connector |
| 19 | Coolant hose assembly |
| 20 | Engine oil cooler inlet hose |
| 21 | Coolant bypass hose |
| 22 | Thermostat |
| 23 | Coolant inlet connector |
| 24 | Lower radiator hose |
| 25 | Coolant pump adapter |
| 26 | Coolant pump |
| 27 | Engine oil cooler |
| 28 | Cylinder head gasket |
| 29 | Cylinder head |

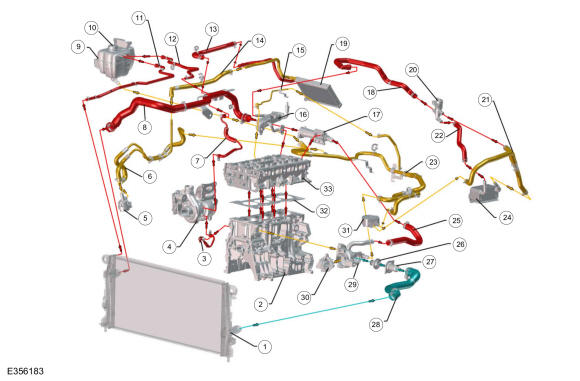

Vehicle with automatic transmission
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Cylinder block |
| 3 | Turbocharger inlet hose |
| 4 | Turbocharger |
| 5 | Cabin coolant heater pump |
| 6 | Cabin coolant heater pump hose assembly |
| 7 | Turbocharger outlet hose |
| 8 | Upper radiator hose |
| 9 | Degas bottle |
| 10 | Pressure relief cap |
| 11 | Radiator-to-degas bottle hose |
| 12 | Engine degas bottle hose |
| 13 | Heater core inlet hose |
| 14 | Heater core outlet hose |
| 15 | Cylinder head/integrated exhaust manifold coolant outlet tube |
| 16 | EGR cooler |
| 17 | Coolant outlet connector |
| 18 | Transmission fluid heater coolant control valve inlet hose |
| 19 | Heater core |
| 20 | Transmission fluid heater coolant control valve |
| 21 | Transmission oil cooler outlet hose |
| 22 | Transmission fluid heater coolant control valve outlet hose |
| 23 | Coolant hose assembly |
| 24 | Transmission oil cooler |
| 25 | Coolant bypass hose |
| 26 | Thermostat |
| 27 | Coolant inlet connector |
| 28 | Lower radiator hose |
| 29 | Coolant pump adapter |
| 30 | Coolant pump |
| 31 | Engine oil cooler |
| 32 | Cylinder head gasket |
| 33 | Cylinder head |
