Gearshift Lever Knob: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

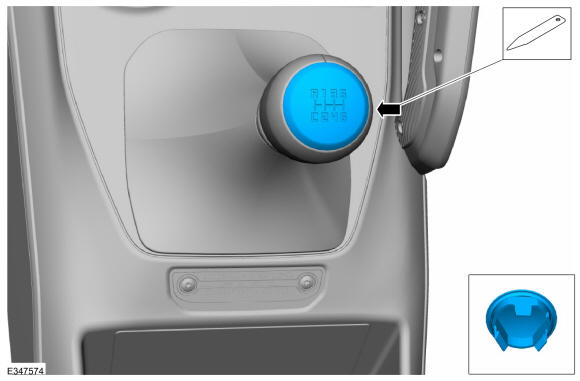

  1. Remove the gear shift knob lens. Use the General Equipment: Interior Trim Remover
    GFD626937Courtesy of FORD MOTOR COMPANY

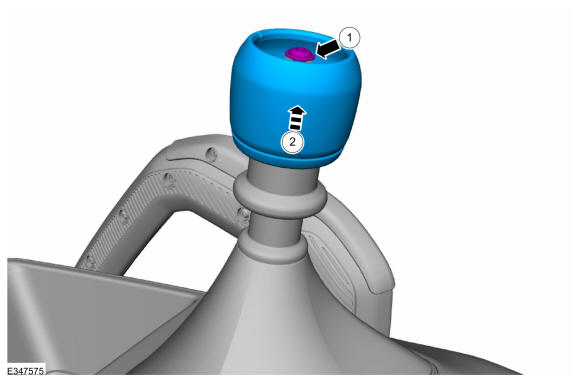

    1. Remove the gear shift knob screw,

      Torque

      : 53 lb.in (6 Nm)

    2. Remove the gear shift knob.
GFD626938Courtesy of FORD MOTOR COMPANY
