Gearshift Cables: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the gearshift lever. Refer to: Gearshift Lever .

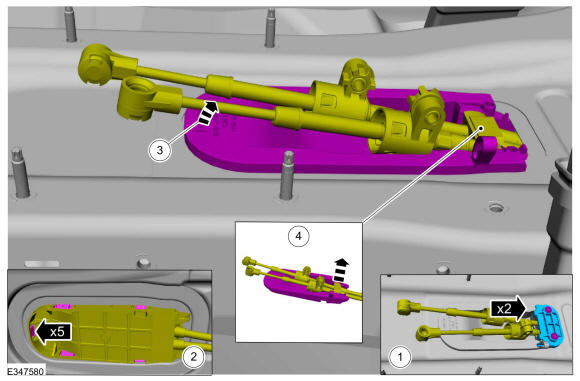

1. Remove the gearshift cable lock screws and the gearshift cable lock.
2. Release the gearshift cable grommet locks.
3. Remove the gearshift cable grommet.
4. Remove the gearshift cable grommet from the gearshift cables.
Courtesy of FORD MOTOR COMPANY
Remove the transmission support crossmember. Refer to: Transmission Support Crossmember - 2.3L EcoBoost (199kW/270PS) .

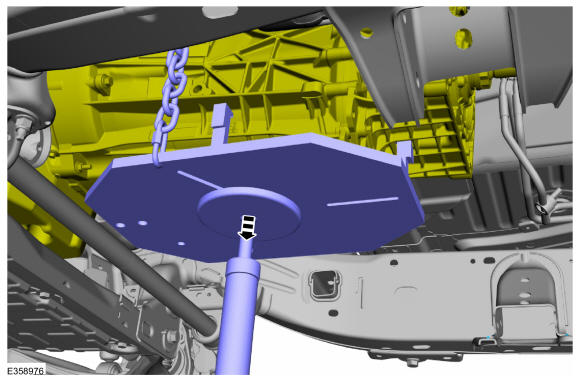

Lower the transmission for gearshift cable stud bolt access.

Courtesy of FORD MOTOR COMPANY
Remove the gearshift cable stud bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

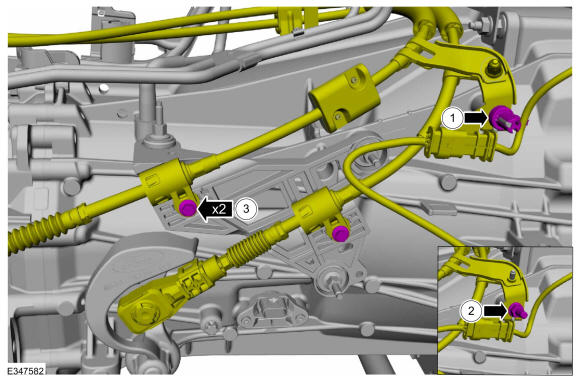

1. Detach the oxygen sensor retainer.
2. Remove the gearshift cable stud bolt.
  Torque

  : 18 lb.ft (25 Nm)
3. Remove the gearshift cable bolts.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

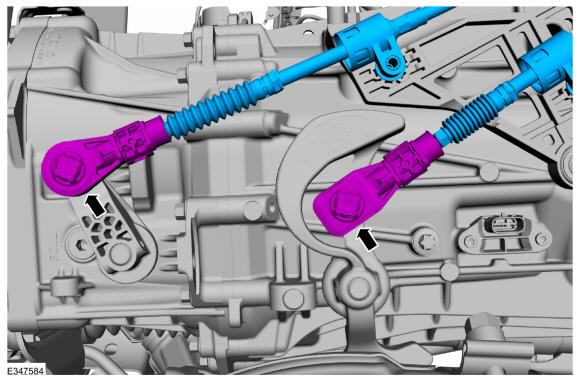

Disconnect and remove the gearshift cables.

Courtesy of FORD MOTOR COMPANY
