Gearshift Cable Adjustment

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

NOTE: The floor console is not shown in illustration, but does not need to be removed.

Place the transmission in NEUTRAL.

Courtesy of FORD MOTOR COMPANY
Remove the gearshift lever boot. Refer to: Gearshift Lever Boot .
Using help of an assistant.

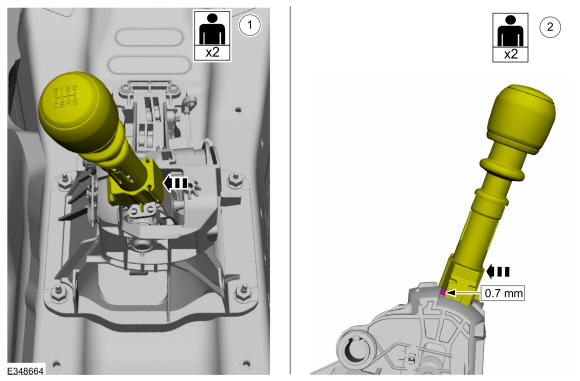

1. Position the shifter in the Reverse/Crawl shift gate.
2. Place a 0.7mm shim in between the shift and the reverse stop and keep shifter in this position.
Courtesy of FORD MOTOR COMPANY
Using help of an assistant.

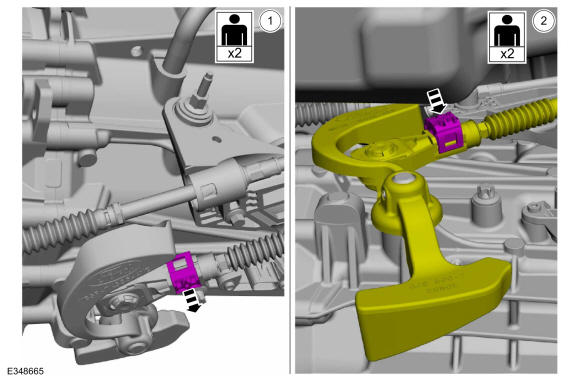

1. Unlock the shift cable adjusting block lock.
2. Lock the shift cable adjusting block lock.
Courtesy of FORD MOTOR COMPANY
Using help of an assistant.

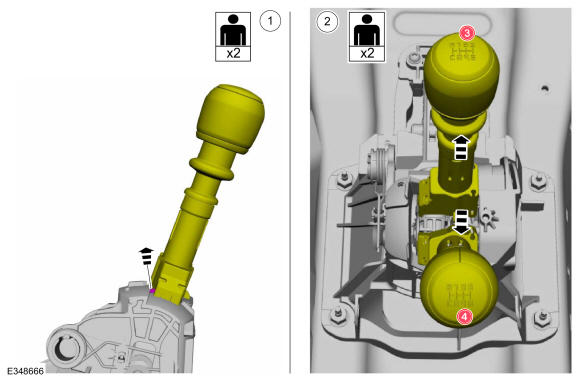

1. Remove the shim
2. Shift the shifter into 3rd and 4th gear.
Courtesy of FORD MOTOR COMPANY

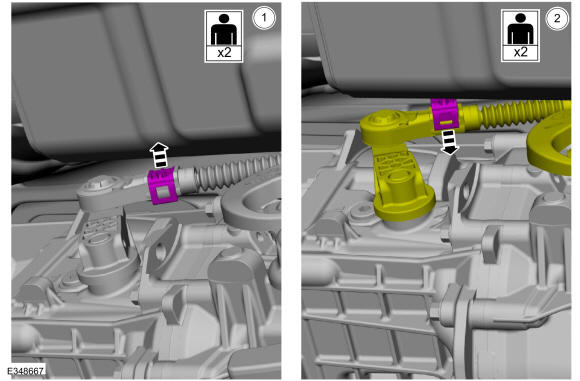

Using help of an assistant.
1. Unlock the shift cable adjusting block lock.
2. Lock the shift cable adjusting block lock.
Courtesy of FORD MOTOR COMPANY
NOTE: If there is any concern repeat the adjust procedure.

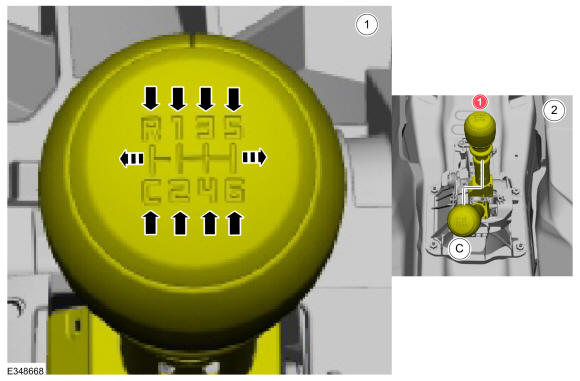

1. NOTE: Move the select lever side to side and into each gear to verify free motion.

  Check the gearshift adjustment by shifting into all gears.
2. Check the Crawl to 1st gear shift motion.
Courtesy of FORD MOTOR COMPANY
Install the gearshift lever boot. Refer to: Gearshift Lever Boot .
