Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

- Install the intake manifold and attach the KS electrical connector retainers.
- Attach the coolant hose retainer to intake manifold.
Courtesy of FORD MOTOR COMPANY
- Position the intake manifold and install the bolts and tighten in sequence shown.
  Torque: 18 lb.ft (25 Nm)
- Connect the crankcase vent oil separator tube quick release coupling to the intake manifold. Refer to: Quick Release Coupling .

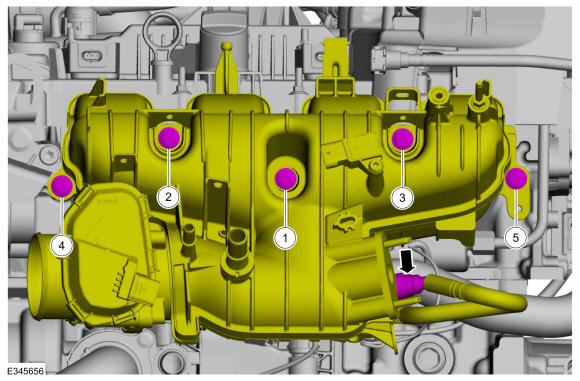

Fig 1: Intake Manifold Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

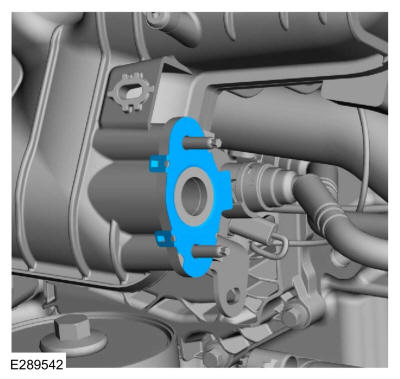

Install a new EGR inlet tube assembly gasket.

Courtesy of FORD MOTOR COMPANY
Position the EGR inlet tube assembly to intake manifold and install the nuts and bolt and tighten in sequence shown.
Torque: 97 lb.in (11 Nm)

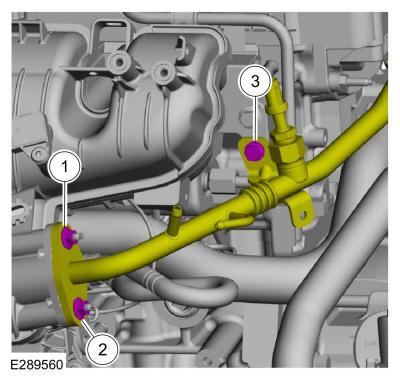

Fig 2: EGR Inlet Tube Assembly Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

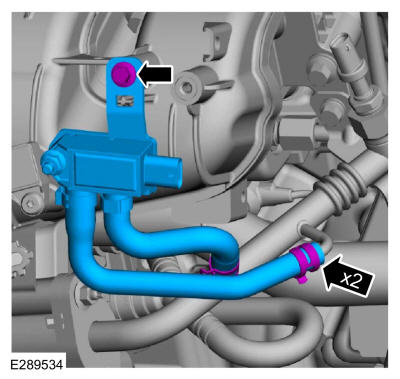

- Install the EGR transducer assembly and the bolt.
  Torque: 97 lb.in (11 Nm)
- Install the EGR transducer hoses.
Courtesy of FORD MOTOR COMPANY

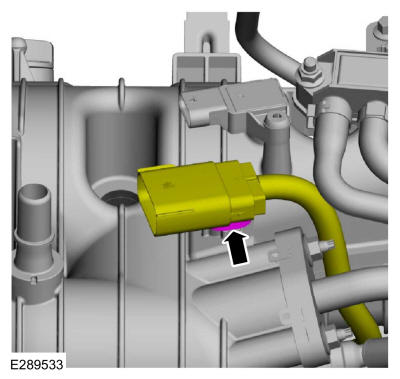

Attach the fuel rail wiring harness retainer to the intake manifold.

Courtesy of FORD MOTOR COMPANY

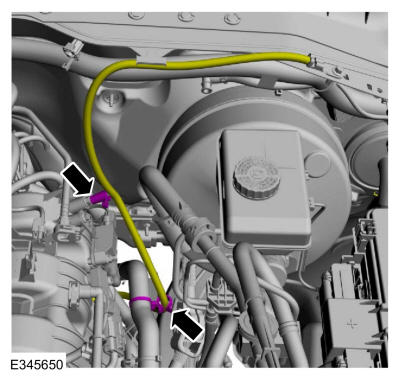

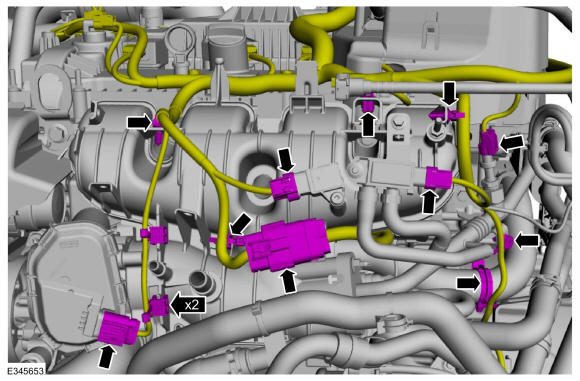

- Connect the wiring harness electrical connectors.
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

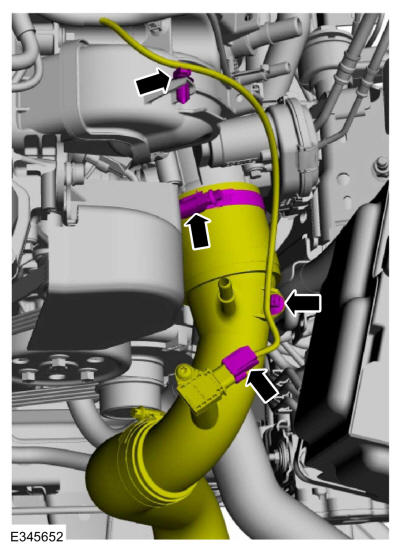

- Position the CAC pipe and tighten the clamp.
  Torque: 44 lb.in (5 Nm)
- Connect the wiring harness electrical connector and the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

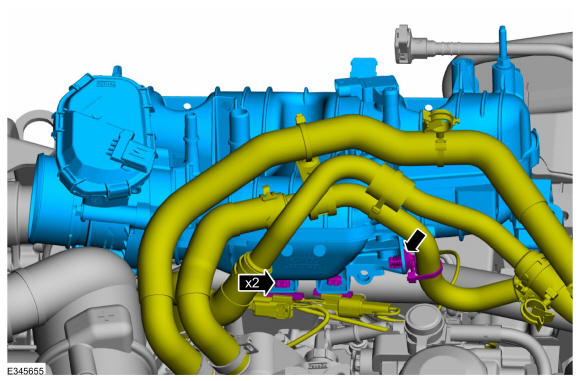

Attach the ground cable retainers to the intake manifold and coolant hose.

Courtesy of FORD MOTOR COMPANY

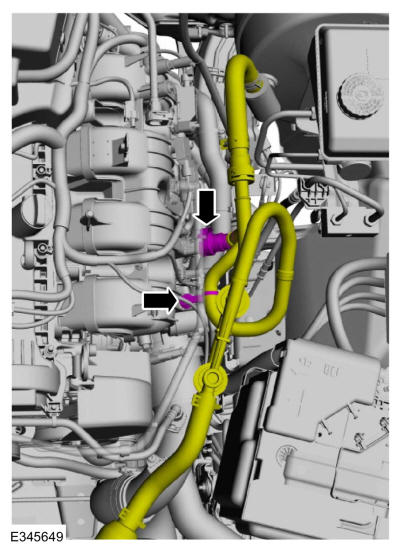

Follow directions to connect the quick release coupling type 5. Position and connect the brake vacuum tube quick release coupling and retainer to the intake manifold. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Install the EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
Connect the battery ground. Refer to: Battery Disconnect and Connect .
Road test the vehicle.
