Removal And Installation: Flywheel: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
- Remove the clutch and pressure plate. Refer to: Clutch Disc and Pressure Plate .
-

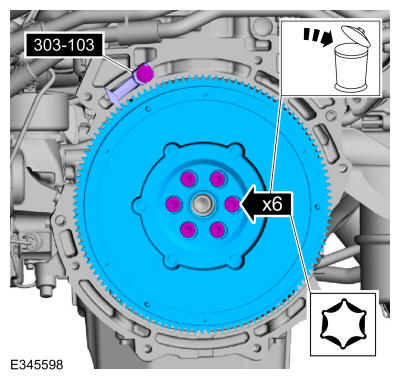

- Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
-
NOTE: Do not reuse the flywheel bolts.
Remove the bolts and the flywheel.
- Discard the bolts.
