Removal And Installation: Flywheel: Installation
WARNING: This page is about a different variant/trim than selected.
-
-
NOTE: Special bolts are used for installation. Do not use standard bolts.

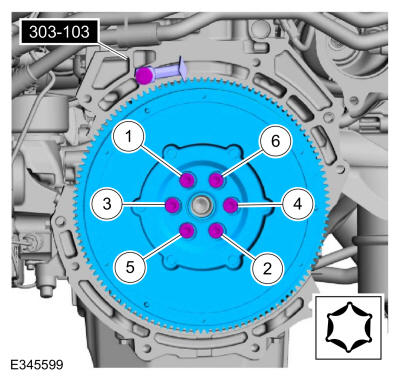

Install the flywheel and the new bolts.
Torque: Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 86 lb.ft (116 Nm)
- Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
-
- Install the clutch and pressure plate. Refer to: Clutch Disc and Pressure Plate .
- Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
- Road test the vehicle.
