Removal And Installation: Flexplate: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
- Remove the automatic transmission. Refer to: Transmission - 2.3L EcoBoost (199kW/270PS) .
-
-
NOTE: Do not reuse the flexplate bolts.

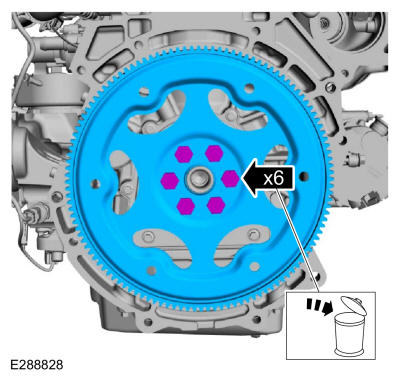

Remove the bolts and the flexplate.
- Discard the bolts.
-
