Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Remove the following items:

    1. Remove the RH front fender splash shield. Refer to: Fender Splash Shield .
    2. Remove the engine rear undershield. Refer to: Engine Rear Undershield .

  3. Remove the nut and the splash shield bracket.
    GFD624098Courtesy of FORD MOTOR COMPANY
  4. Loosen the transmission mount nuts.
    GFD624073Courtesy of FORD MOTOR COMPANY

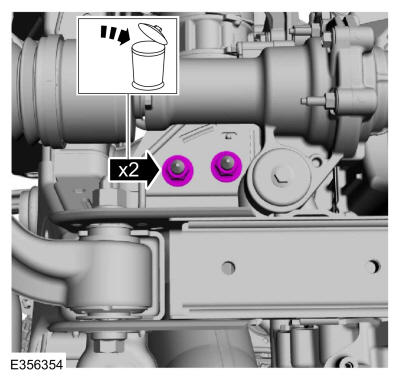

  5. Remove and discard the RH engine mount nuts.
    GFD624099Courtesy of FORD MOTOR COMPANY

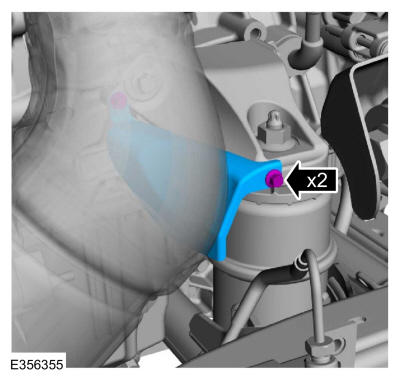

  6. Remove the bolts and the RH engine mount heat shield.
    GFD624100Courtesy of FORD MOTOR COMPANY
  7. Remove and discard the RH engine mount nut.
    GFD624101Courtesy of FORD MOTOR COMPANY

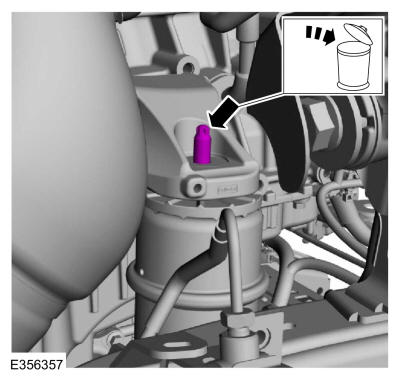

  8. Remove and discard the RH engine mount stud.
    GFD624102Courtesy of FORD MOTOR COMPANY
    NOTE: Step 9 is for vehicles without sway bar disconnect. Steps 10 thru 13 is for vehicles with sway bar disconnect.
    • Remove the nuts and bolts and lower the sway bar.

    • Discard the nuts and bolts.

    GFD624063Courtesy of FORD MOTOR COMPANY
  10. Remove the bolts and the sway bar disconnect skid plate.
    GFD624064Courtesy of FORD MOTOR COMPANY
  11. Disconnect the sway bar disconnect wiring harness electrical connectors and retainers.
    GFD624065Courtesy of FORD MOTOR COMPANY
    • Remove the nuts and bolts and lower the sway bar disconnect.

    • Discard the bolts.

    GFD624066Courtesy of FORD MOTOR COMPANY
  13. Position the sway bar disconnect back so the front sway bar bracket holes are on the sway bar studs bolts and install the old nuts finger tight to position the sway bar aside.
    GFD624067Courtesy of FORD MOTOR COMPANY
    • Position an adjustable stand under the rear of the engine/transmission. Use the General Equipment: Vehicle/Axle Stands

    • Using the adjustable stand, raise the engine 12.7 mm (1/2 in).

    GFD624078Courtesy of FORD MOTOR COMPANY

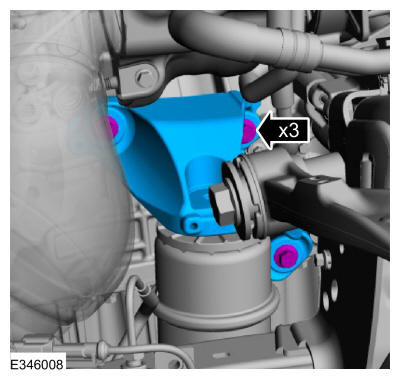

  15. Remove the bolts and the RH engine mount bracket.
    GFD624103Courtesy of FORD MOTOR COMPANY

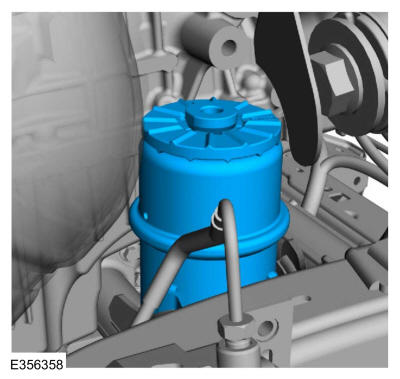

  16. Remove the RH engine mount.
GFD624104Courtesy of FORD MOTOR COMPANY
