Engine Mount RH: Installation

WARNING: This page is about a different variant/trim than selected.

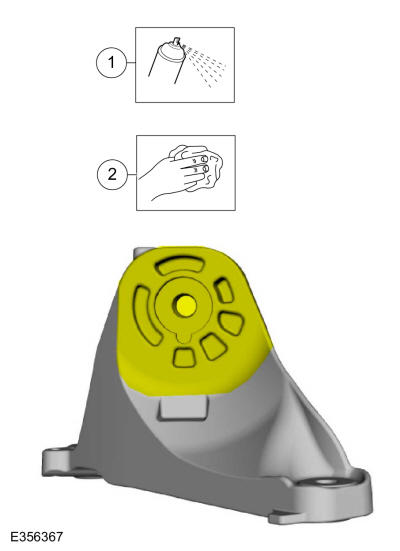

1. Using engine shampoo and degreaser, clean the engine mount bracket.
  Material: Motorcraft® Engine Shampoo and Degreaser / ZC-20 (ESR-M14P3-A)
2. Wipe the engine mount bracket clean.
Courtesy of FORD MOTOR COMPANY

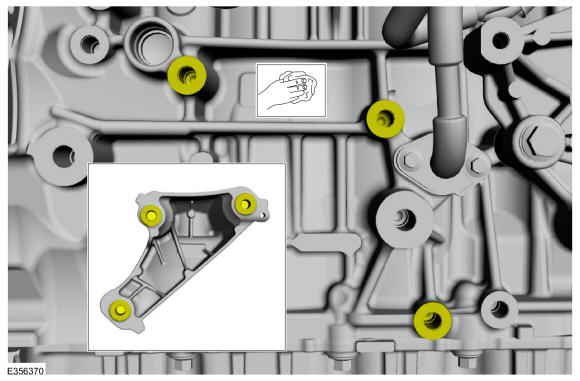

Clean the RH engine mount bracket-to-cylinder block surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY

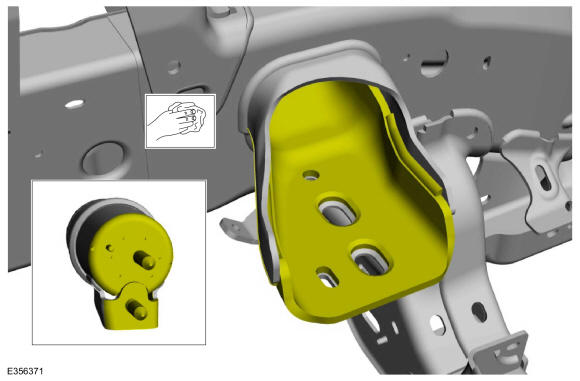

Clean the RH engine mount-to-frame surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY
Install the RH engine mount and align bottom tab.

Courtesy of FORD MOTOR COMPANY

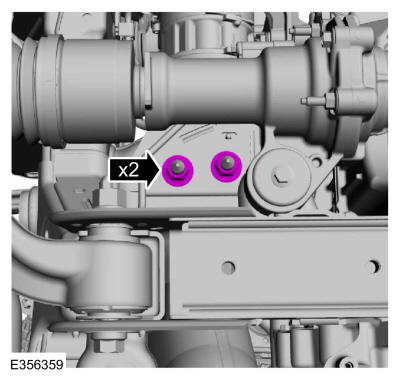

Install the new RH engine mount nuts finger tight.

Courtesy of FORD MOTOR COMPANY
Align the tab on the RH engine mount to the slot on the engine mount bracket.

Courtesy of FORD MOTOR COMPANY
Install the RH engine mount bracket and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

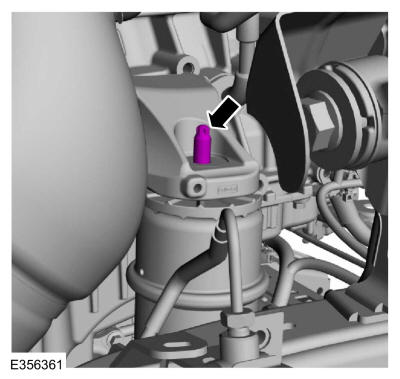

Install a new RH engine mount stud.
Torque: 37 lb.ft (50 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new RH engine mount nut finger tight.

Courtesy of FORD MOTOR COMPANY

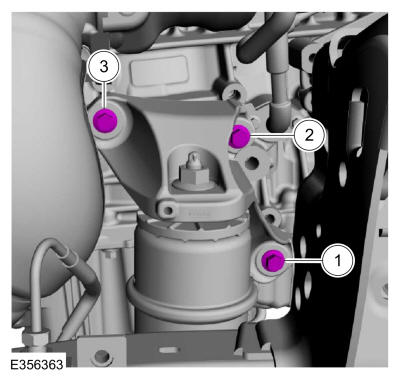

Tighten the RH engine mount bracket bolts in the sequence shown.
Torque: 52 lb.ft (70 Nm)

Fig 1: RH Engine Mount Bracket Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
- Using the adjustable stand, lower the engine to the installed position.
- Remove the stand. Use the General Equipment: Vehicle/Axle Stands
Courtesy of FORD MOTOR COMPANY

NOTE: Steps 9 thru 12 is for vehicles with sway bar disconnect. Step 13 is for vehicles without sway bar disconnect.
Remove and discard the nuts and position the sway bar disconnect forward.

Courtesy of FORD MOTOR COMPANY
Position the sway bar disconnect and install the new nuts and bolts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the sway bar disconnect wiring harness electrical connectors and retainers.

Courtesy of FORD MOTOR COMPANY
Install the sway bar disconnect skid plate and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Position the sway bar and install the new nuts and bolts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the RH engine mount nut.
Torque: Stage 1: 35 lb.ft (48 Nm) Stage 2: 120 deg.

Courtesy of FORD MOTOR COMPANY

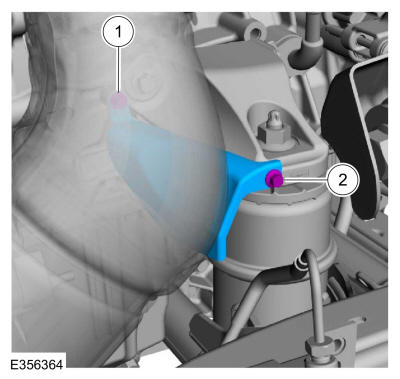

Install the RH engine mount heat shield and the bolts and tighten in sequence shown.
Torque: 124 lb.in (14 Nm)

Fig 2: RH Engine Mount Heat Shield Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Tighten the RH engine mount nuts.
Torque: Stage 1: 81 lb.ft (110 Nm) Stage 2: 120 deg.

Courtesy of FORD MOTOR COMPANY
Remove and discard the transmission mount nuts.

Courtesy of FORD MOTOR COMPANY
Install the new transmission mount nuts and tighten.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Install the splash shield bracket and the nut.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the engine rear undershield. Refer to: Engine Rear Undershield .
2. Install the RH front fender splash shield. Refer to: Fender Splash Shield .
