Engine Mount LH: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Using a holding device, hold the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Remove the air cleaner. Refer to: Air Cleaner .
2. Remove the LH and RH front fender splash shields. Refer to: Fender Splash Shield .
3. Remove the engine front undershield. Refer to: Engine Front Undershield .
4. Remove the engine rear undershield. Refer to: Engine Rear Undershield .
Remove the nut and the splash shield bracket.

Courtesy of FORD MOTOR COMPANY

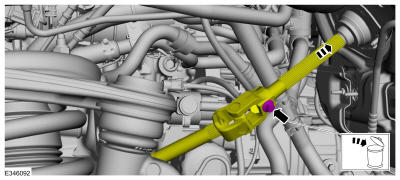

- Remove and discard the bolt.
- Separate the steering shaft and position aside.
Courtesy of FORD MOTOR COMPANY
Release the clips and position the CAC pipes aside.

Courtesy of FORD MOTOR COMPANY

NOTE: Step 7 is for vehicles without sway bar disconnect. Steps 8 thru 11 is for vehicles with sway bar disconnect.

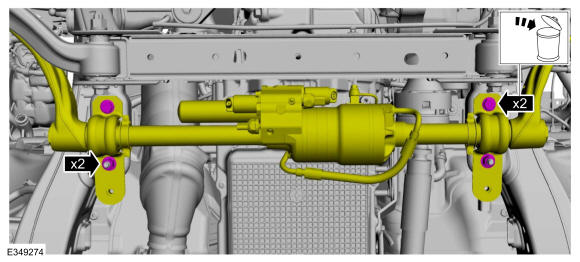

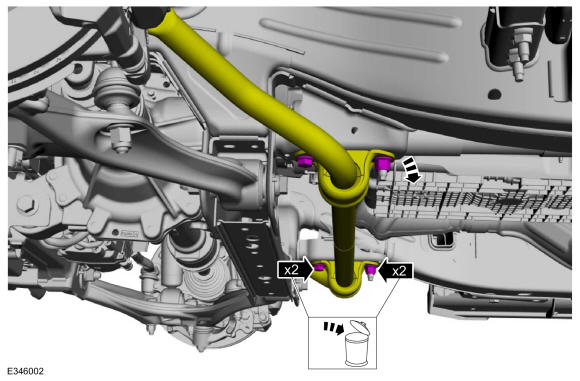

- Remove the nuts and bolts and lower the sway bar.
- Discard the nuts and bolts.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the sway bar disconnect skid plate.

Courtesy of FORD MOTOR COMPANY
Disconnect the sway bar disconnect wiring harness electrical connectors and retainers.

Courtesy of FORD MOTOR COMPANY

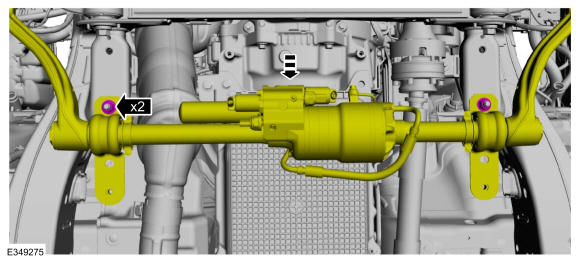

- Remove the nuts and bolts and lower the sway bar disconnect.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY
Position the sway bar disconnect back so the front sway bar bracket holes are on the sway bar studs bolts and install the old nuts finger tight to position the sway bar aside.

Courtesy of FORD MOTOR COMPANY

NOTE: Steps 12 thru 14 is for vehicles with an electronic locking axle.

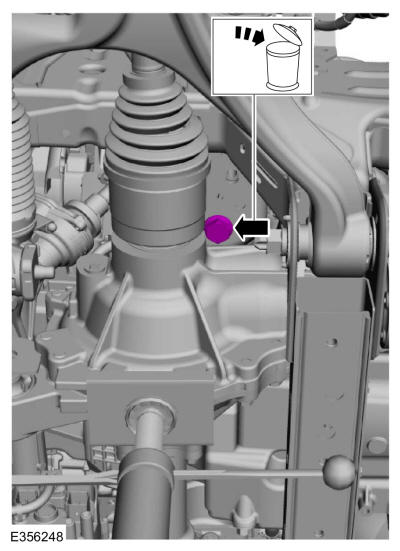

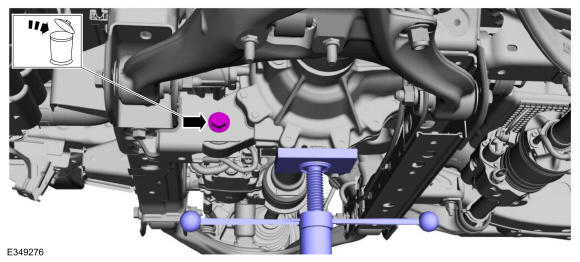

Position an adjustable stand under the axle and remove and discard the bolt. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

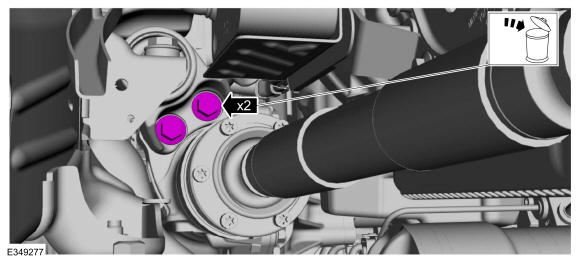

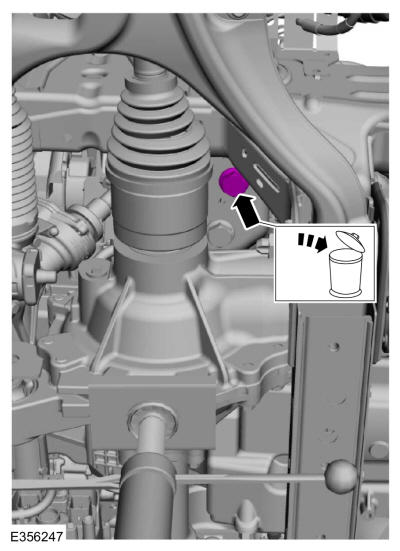

Remove and discard the rear axle bolts.

Courtesy of FORD MOTOR COMPANY

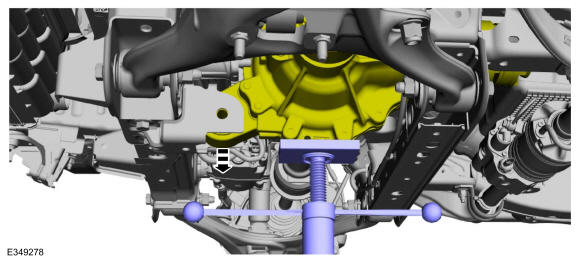

Using the adjustable stand, lower the axle. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the LH axle shaft shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a 1/2 inch drive 12-point 1 inch standard torque adaptor (such as a Snap-on SRDH321, or equivalent).

Using a standard torque adaptor, remove and discard the LH outboard engine mount bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a 1/2 inch drive 12-point 1 inch standard torque adaptor (such as a Snap-on SRDH321, or equivalent).

Using a standard torque adaptor, remove and discard the LH inboard engine mount bolt.

Courtesy of FORD MOTOR COMPANY
Loosen the transmission mount nuts.

Courtesy of FORD MOTOR COMPANY

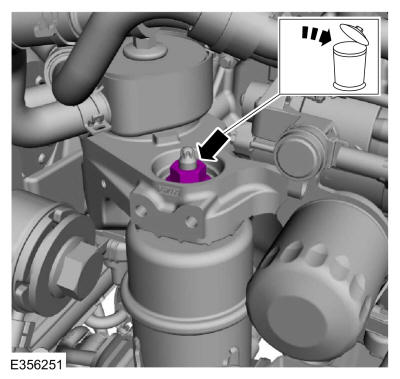

Remove and discard the RH engine mount nut.

Courtesy of FORD MOTOR COMPANY

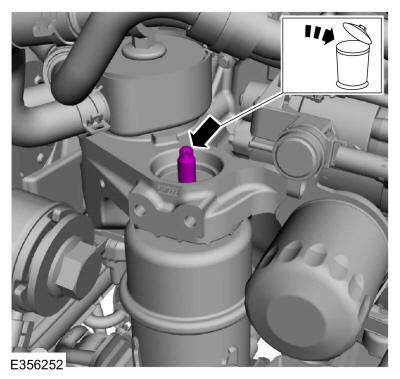

Remove and discard the RH engine mount stud.

Courtesy of FORD MOTOR COMPANY

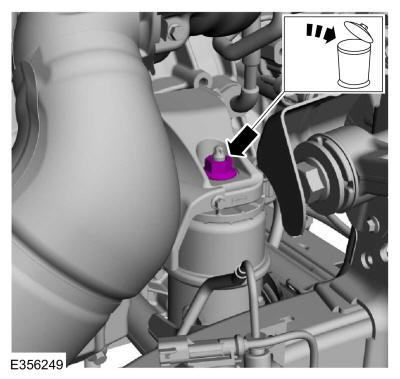

Remove and discard the LH engine mount nut.

Courtesy of FORD MOTOR COMPANY

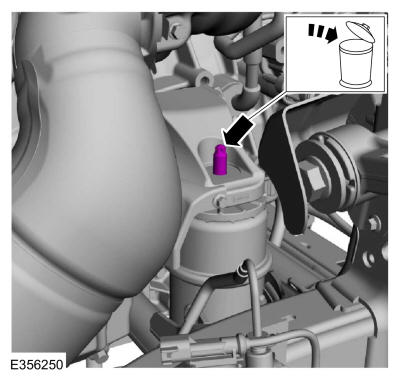

Remove and discard the LH engine mount stud.

Courtesy of FORD MOTOR COMPANY

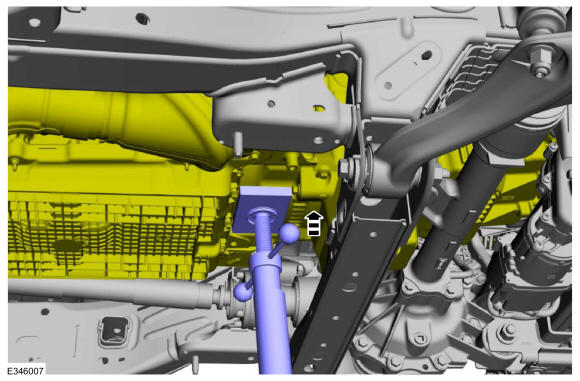

- Position an adjustable stand under the rear of the engine/transmission. Use the General Equipment: Vehicle/Axle Stands
- Using the adjustable stand, raise the engine 50 mm (2 in).
Courtesy of FORD MOTOR COMPANY
Remove the LH engine mount.

Courtesy of FORD MOTOR COMPANY
