Cylinder Head: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the following items:

    1. Remove the intake manifold. Refer to: Intake Manifold .
    2. Remove EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .
    3. Remove EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Cooler .
    4. Remove EGR inlet tube. Refer to: Exhaust Gas Recirculation (EGR) Inlet Tube .
    5. Remove the valve tappets. Refer to: Valve Tappets .

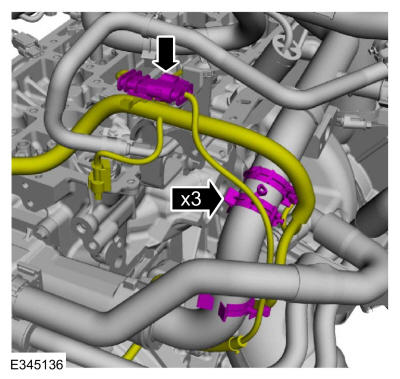

  5. Disconnect the HO2S wiring harness connector and detach the wiring harness retainers.
    GFD624020Courtesy of FORD MOTOR COMPANY

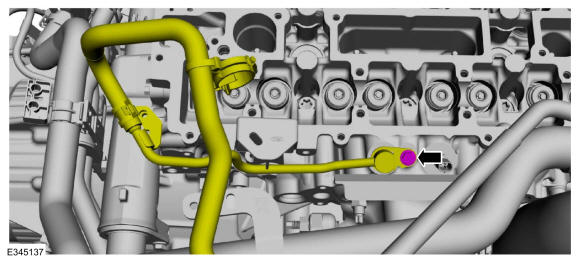

  6. Remove the bolt and position the coolant tube aside.
    GFD624021Courtesy of FORD MOTOR COMPANY
  7. Inspect the coolant tube O-ring seal and replace if damaged.
    GFD624022Courtesy of FORD MOTOR COMPANY

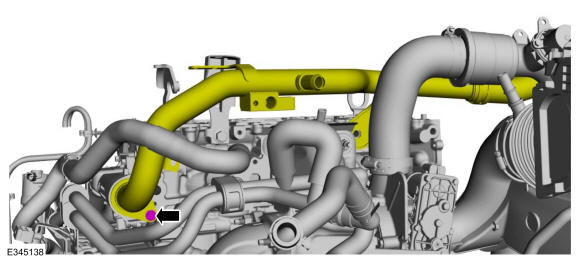

  8. Remove the bolt and position the coolant tube aside.
    GFD624023Courtesy of FORD MOTOR COMPANY
  9. Inspect the coolant tube O-ring seal and replace if damaged.
    GFD624024Courtesy of FORD MOTOR COMPANY

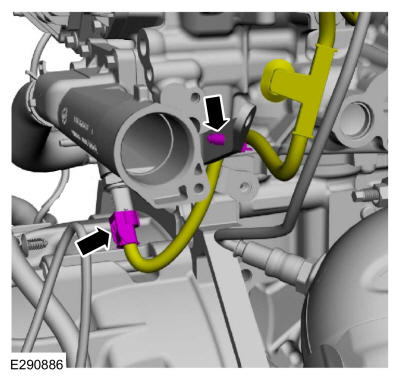

  10. Disconnect the ECT sensor wiring harness electrical connector and the retainer.
    GFD624025Courtesy of FORD MOTOR COMPANY

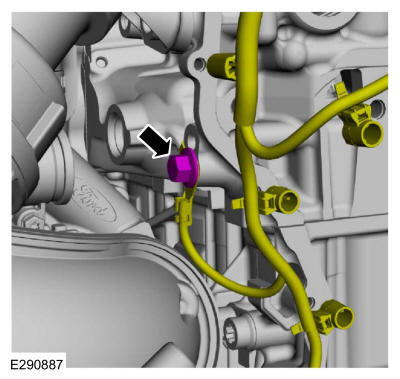

  11. Remove the bolt and ground wire.
    GFD624026Courtesy of FORD MOTOR COMPANY

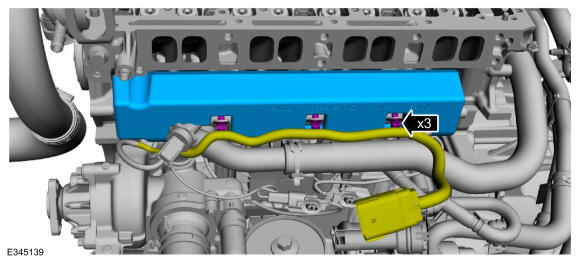

    • Detach the wiring harness retainers from the fuel rail.

    • Remove the fuel rail insulator.

    GFD624027Courtesy of FORD MOTOR COMPANY

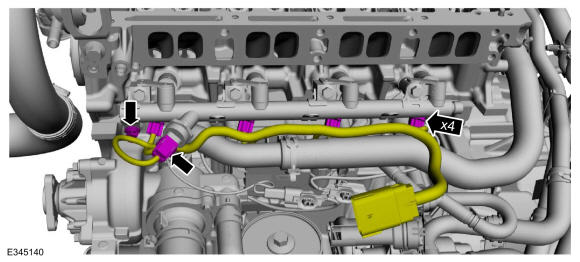

    • Detach the fuel rail wiring harness retainer from the fuel rail.

    • Disconnect the fuel rail pressure sensor and fuel rail electrical connectors.

    • Position the fuel rail wiring harness aside.

    GFD624028Courtesy of FORD MOTOR COMPANY

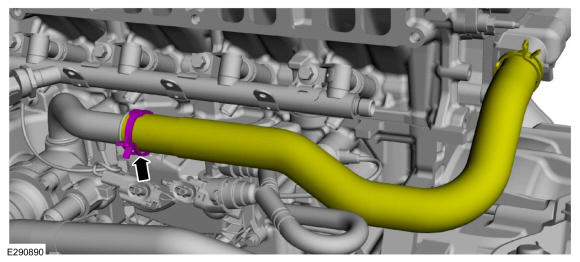

  14. Release the clamp and position the coolant hose aside. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624029Courtesy of FORD MOTOR COMPANY

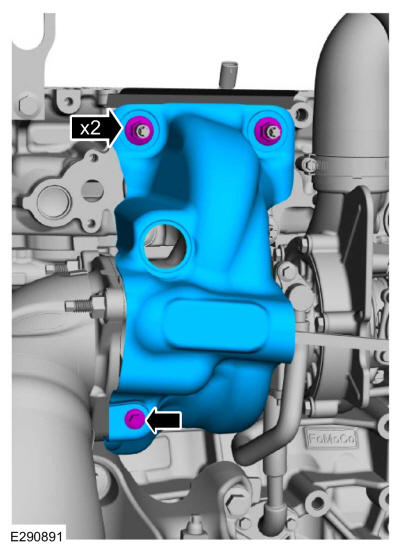

  15. Remove the nuts, bolt and the turbocharger heat shield.
    GFD624030Courtesy of FORD MOTOR COMPANY

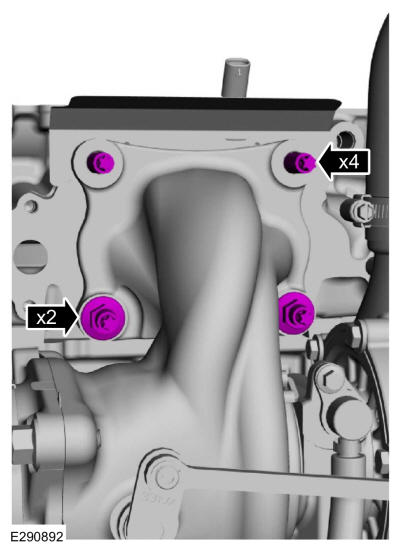

  16. Remove the turbocharger nuts and the studs.
    GFD624031Courtesy of FORD MOTOR COMPANY

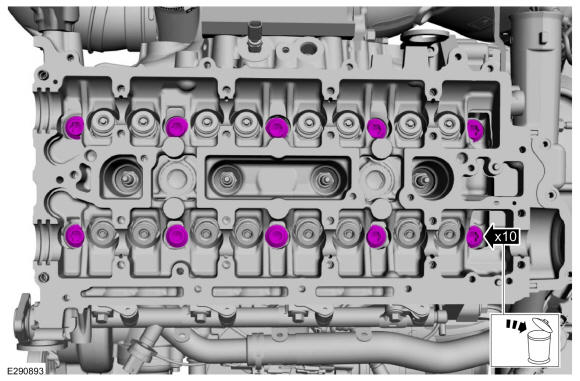

    • Remove the cylinder head bolts.

    • Discard the bolts.

    GFD624032Courtesy of FORD MOTOR COMPANY

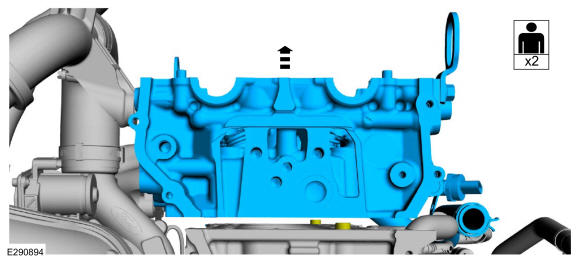

  18. NOTE: When removing or installing the cylinder head, use care to prevent excessive movement of the turbocharger. Excessive movement may cause damage to the turbocharger oil return tube resulting in an engine oil leak.

    With the aid of an assistant, lift the cylinder head to clear the locating dowels in the cylinder block and remove the cylinder head.

    GFD624033Courtesy of FORD MOTOR COMPANY

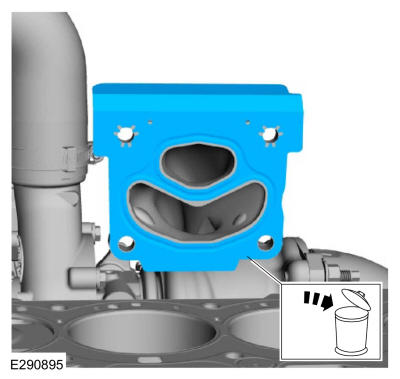

  19. Remove and discard the turbocharger gasket.
    GFD624034Courtesy of FORD MOTOR COMPANY

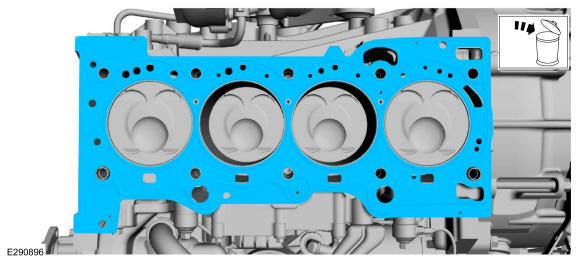

  20. Remove and discard the cylinder head gasket.
    GFD624035Courtesy of FORD MOTOR COMPANY

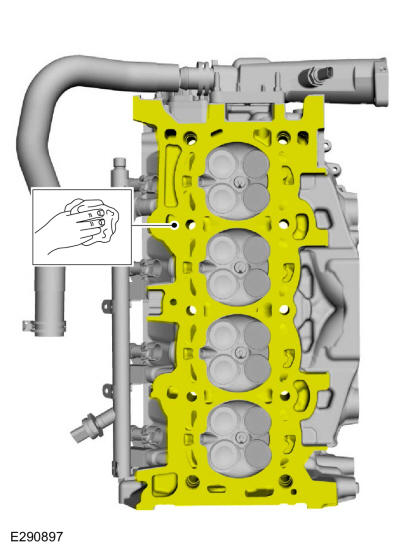

  21. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    Clean the cylinder head sealing surfaces.

    GFD624036Courtesy of FORD MOTOR COMPANY
  22. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.

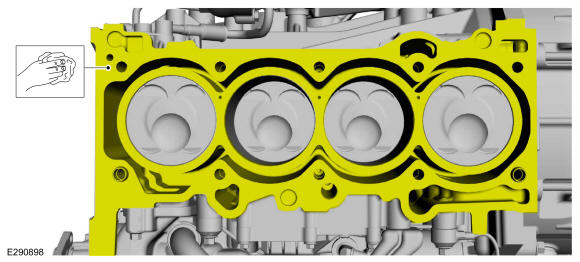

    Clean the cylinder block sealing surfaces.

    GFD624037Courtesy of FORD MOTOR COMPANY

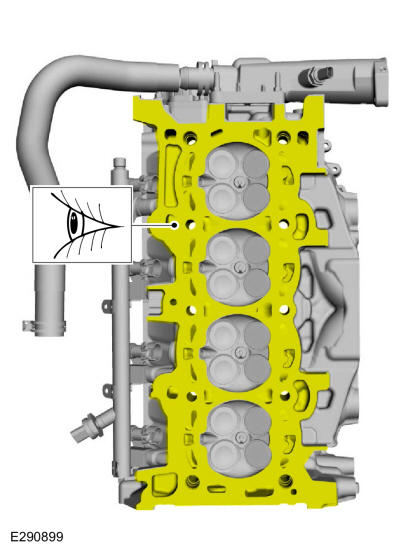

  23. Inspect the cylinder head sealing surfaces.
    GFD624038Courtesy of FORD MOTOR COMPANY
