Section 2 (Engine - 2.3L ECOBOOST (199KW/270PS)): Assembly: Engine

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C)Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W)Handle

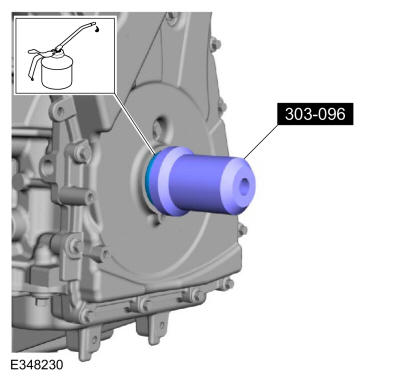

Courtesy of FORD MOTOR COMPANY	303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal | TKIT-2009TC-F
Courtesy of FORD MOTOR COMPANY	303-103 (T74P-6375-A) Holding Tool, Flywheel T74P-77000-A | TKIT-2009TC-F

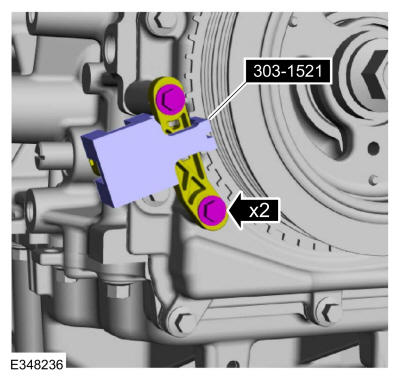

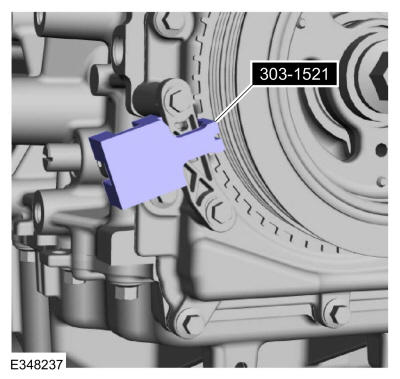

Courtesy of FORD MOTOR COMPANY	303-1521 Alignment Tool, Crankshaft Position Sensor | TKIT-2010C-FLM
Courtesy of FORD MOTOR COMPANY	303-1567Sizer, Teflon Seal | TKIT-2010C-FLM
Courtesy of FORD MOTOR COMPANY	303-1685 Alignment Tool, Camshaft
Courtesy of FORD MOTOR COMPANY	303-1687 Installer, VCT Solenoid Seal
Courtesy of FORD MOTOR COMPANY	303-1688Preload Tool, Balance Shaft
Courtesy of FORD MOTOR COMPANY	303-1689 Holding Tool, Crank Damper
Courtesy of FORD MOTOR COMPANY	303-328 (T88P-6701-B1) Replacer, Rear Seal | TKIT-1988-FLM | TKIT-1988-F | TKIT-1988-LM
Courtesy of FORD MOTOR COMPANY	303-507 Timing Peg, Crankshaft TDC | TKIT-2001N-FLM | TKIT-2001N-ROW

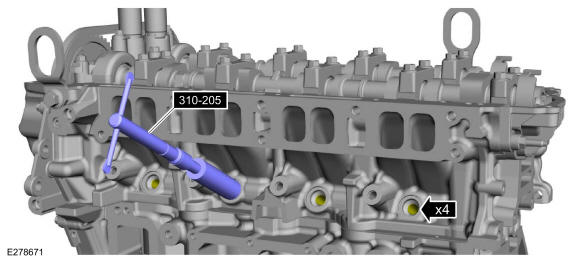

Courtesy of FORD MOTOR COMPANY	310-205Fuel Injector Brush
Courtesy of FORD MOTOR COMPANY	310-207 Installer, Fuel Injector Seal Assembly | TKIT-2009A-FLM
Feeler Gauge
Strap Wrench
Mounting Stand
Clutch Alignment Tool
Hose Clamp Remover/Installer
Piston Ring Compressor

Materials

7-Speed Manual Transmission - MT88/10-Speed Automatic Transmission - 10R60

1. Inspect the turbocharger or engine air intake system components and clean, if necessary.

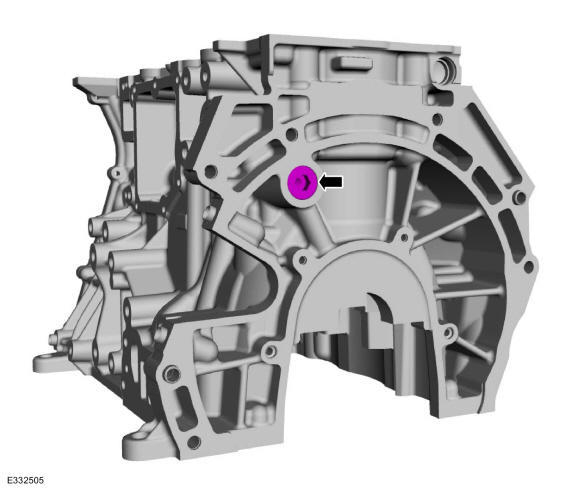

2. If necessary, install the new rear cylinder block plug.

   Torque: 50 lb.ft (68 Nm)

   Courtesy of FORD MOTOR COMPANY

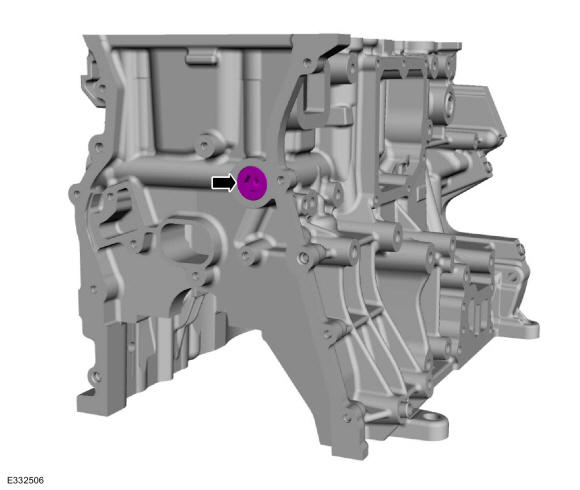

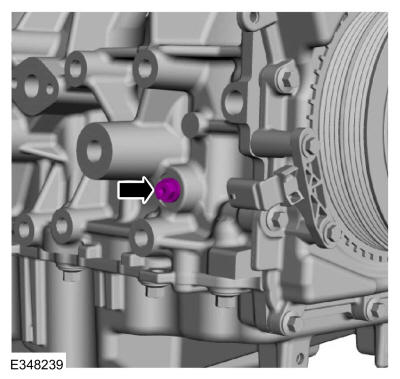

3. If necessary, install the new front cylinder block plug.

   Torque: 50 lb.ft (68 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Install the engine piston oil cooler valves and the bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

5. • Measure the length or distance in two directions.
   • Record the smallest measurement for each crankshaft main bearing journal.

   Courtesy of FORD MOTOR COMPANY

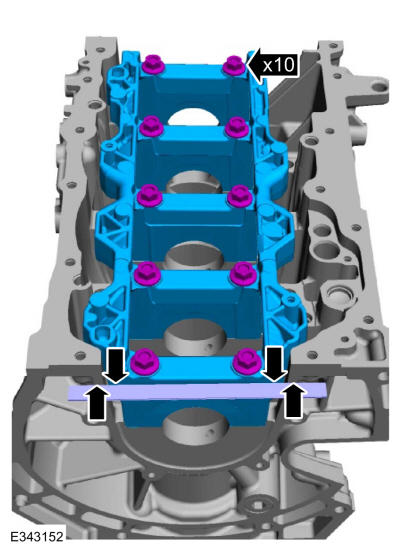

6. Using a straight edge, mounted flush and install the original main bearing beam bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

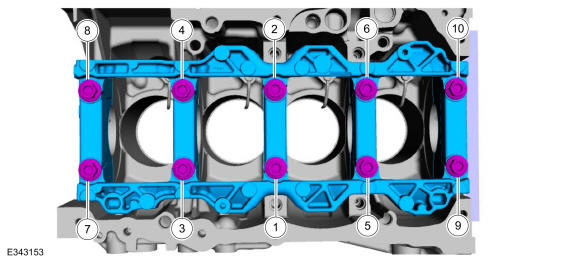

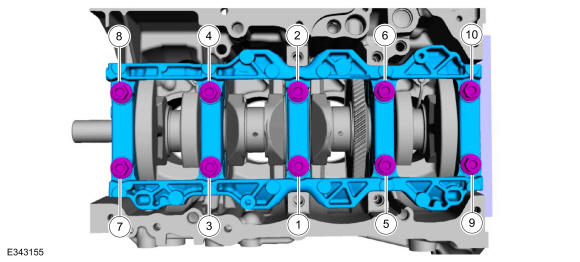

7. Using a straight edge, tighten the bolts in sequence shown.

   Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 90 deg.

   Fig 1: Main Bearing Beam Bolts Tightening Sequence

   Courtesy of FORD MOTOR COMPANY

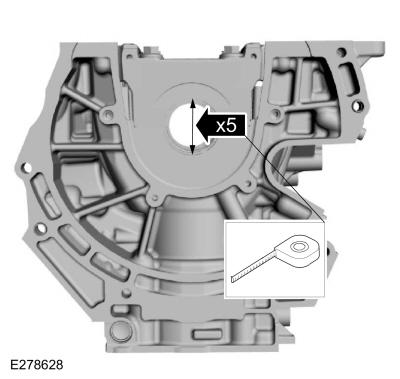

8. Measure each crankshaft block main bearing bore diameter.

   Courtesy of FORD MOTOR COMPANY

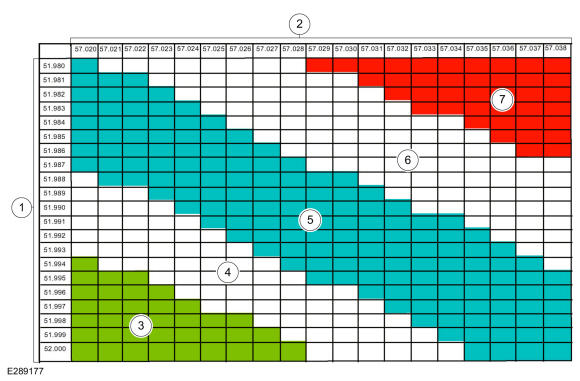

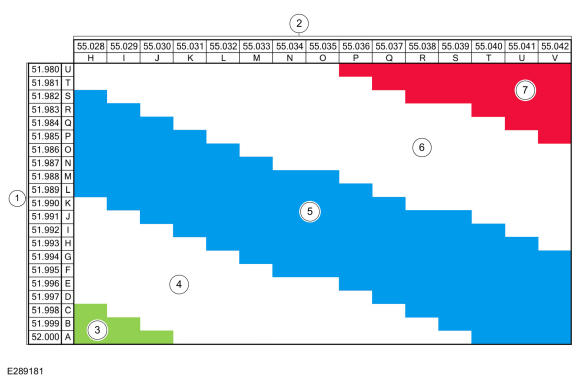

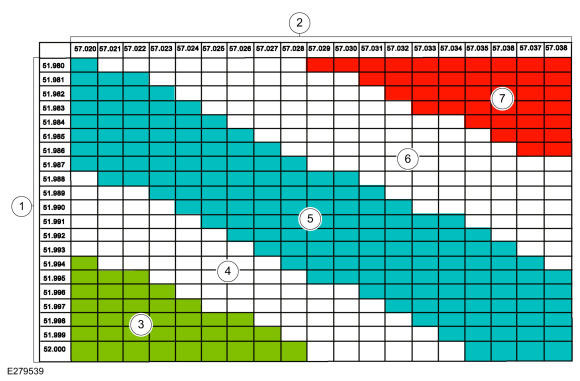

9. NOTE: This chart is for main bearings number 1, 2, 4 and 5.
   NOTE: The bearing color corresponds to the number marked on the bearing.

   Using the chart, select the correct grade connecting rod bearings.

   1. Crankshaft journal diameter
   2. Cylinder block bore diameter
   3. Upper Bearing Green: 1 / Lower Bearing Green: 1
   4. Upper Bearing Blue: 2/ Lower Bearing Green: 1
   5. Upper Bearing Blue: 2 / Lower Bearing Blue: 2
   6. Upper Bearing Red: 3/ Lower Bearing Blue: 2
   7. Upper Bearing Red: 3 / Lower Bearing Red: 3

   Courtesy of FORD MOTOR COMPANY

10. NOTE: This chart is for main bearing number 3.
    1. Crankshaft journal diameter
    2. Cylinder block bore diameter
    3. Green: Upper Bearing Blue: 2/ Lower Bearing Green: 1
    4. White: Upper Bearing Brown: 4/ Lower Bearing Green: 1
    5. Blue: Upper Bearing Brown: 4/ Lower Bearing Blue: 2
    6. Yellow: Upper Bearing Brown: 4/ Lower Bearing Red: 3
    7. Red: Upper Bearing Black: 6/ Lower Bearing Red: 3

    Courtesy of FORD MOTOR COMPANY

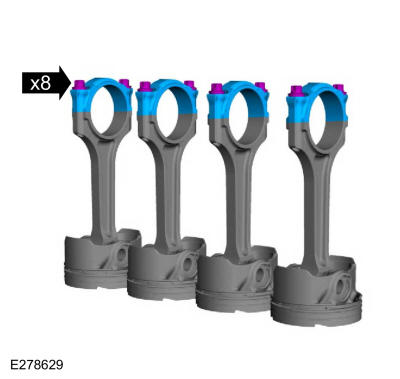

11. Using the original bolts, install the connecting rod caps.

    Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 30 lb.ft (40 Nm) Stage 3: 90 deg.

    Courtesy of FORD MOTOR COMPANY

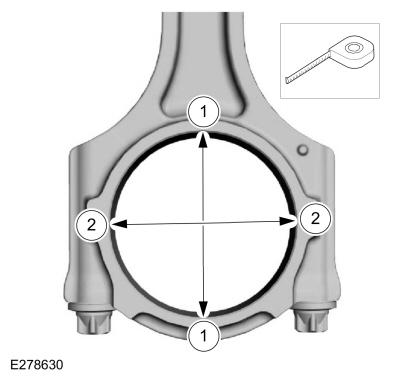

12. • Measure the length or distance in two directions.
    • Record the smallest measurement for each connecting rod.

    Courtesy of FORD MOTOR COMPANY

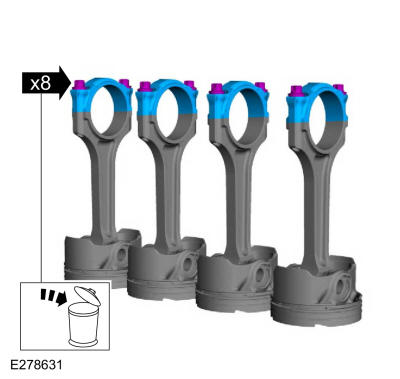

13. • Remove the bolts and the connecting rod caps.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

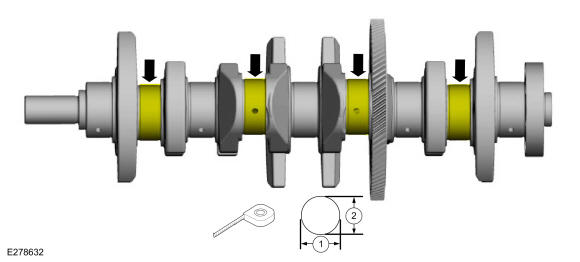

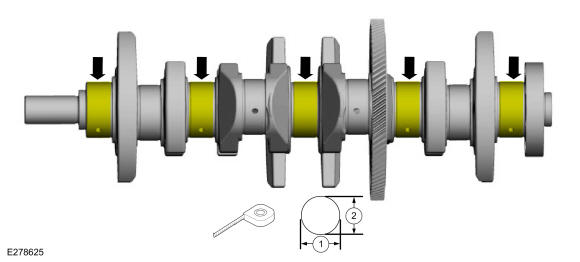

14. • Measure the length or distance in two directions.
    • Record the smallest measurement for each connecting rod journal.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: The bearing color corresponds to the number marked on the bearing.

    Using the chart, select the correct grade connecting rod bearings.

    1. Crankshaft journal diameter
    2. Connecting rod diameter
    3. Upper Bearing Green: 1 / Lower Bearing Green: 1
    4. Upper Bearing Blue: 2/ Lower Bearing Green: 1
    5. Upper Bearing Blue: 2 / Lower Bearing Blue: 2
    6. Upper Bearing Red: 3/ Lower Bearing Blue: 2
    7. Upper Bearing Red: 3 / Lower Bearing Red: 3

    Courtesy of FORD MOTOR COMPANY

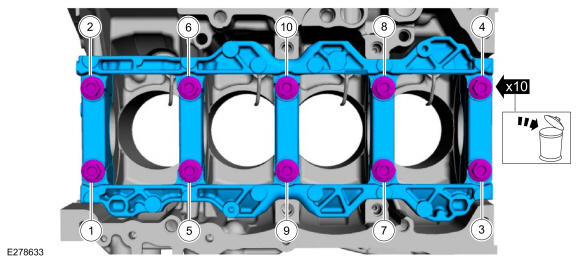

16. • Remove the bolts in sequence shown and discard.
    • Remove the main bearing beam.
    Fig 2: Main Bearing Beam Bolts Loosening Sequence

    Courtesy of FORD MOTOR COMPANY
17. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.
    NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

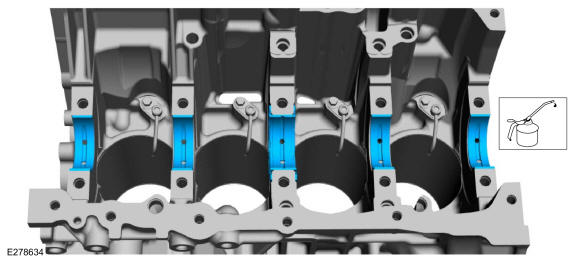

    Lubricate with clean engine oil and install the crankshaft main bearings.

    Courtesy of FORD MOTOR COMPANY

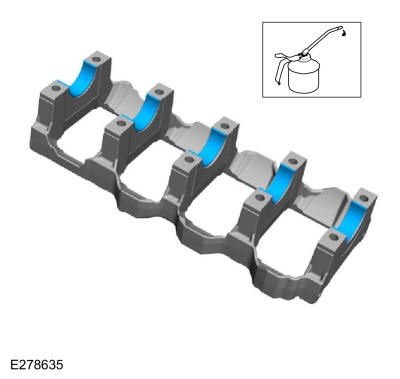

18. NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

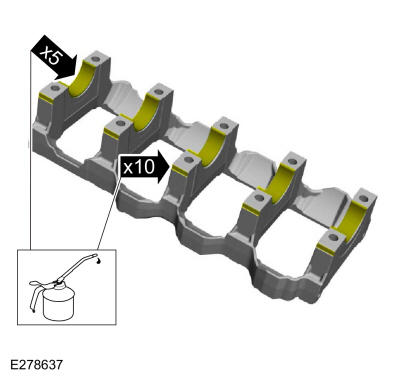

    Lubricate with clean engine oil and install the main bearing beam bearings.

    Courtesy of FORD MOTOR COMPANY

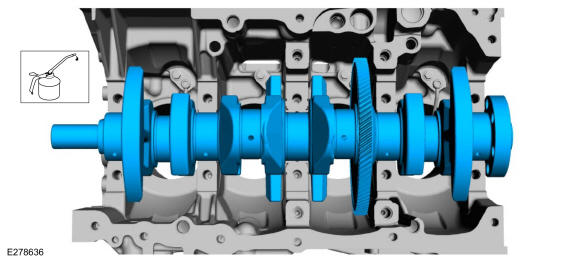

19. Lubricate with clean engine oil and install the crankshaft.

    Courtesy of FORD MOTOR COMPANY

20. Lubricate with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

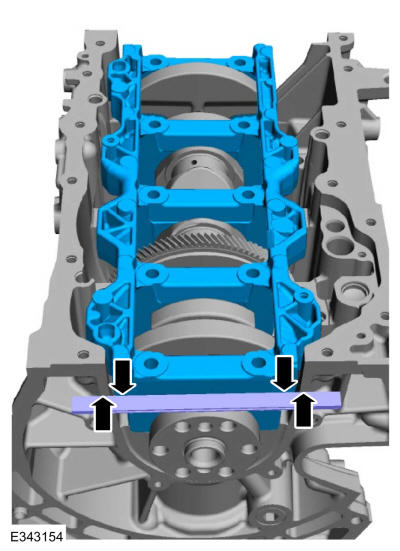

21. Using a straight edge, install the main bearing beam flush.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Lubricate the new main bearing beam bolts threads and under the bolt heads with clean engine oil.
    NOTE: Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.

    Using a straight edge, install the bolts and tighten in sequence shown.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 90 deg.

    Courtesy of FORD MOTOR COMPANY

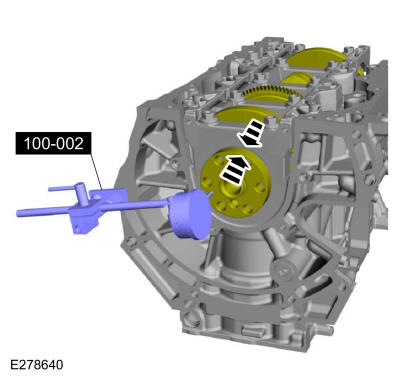

23. 1. Position the crankshaft to the rear of the cylinder block.
    2. Zero the Dial Indicator Gauge with Holding Fixture. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
    3. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    4. Acceptable crankshaft end play is 0.220-0.450 mm (0.0087-0.0177 in). If the crankshaft end play exceeds the specified range, install new parts as necessary.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: If reusing the connecting rod bearings, install them in their original positions and orientation as noted during disassembly.

    Lubricate with clean engine oil and install the connecting rod bearings.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Align the piston rings on the piston.
    NOTE: Arrow indicates front of engine.
    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.
    NOTE: Do not allow the piston connecting rods to come in contact with the piston cooling jets or engine damage may occur.
    NOTE: Lubricate the piston with clean engine oil.

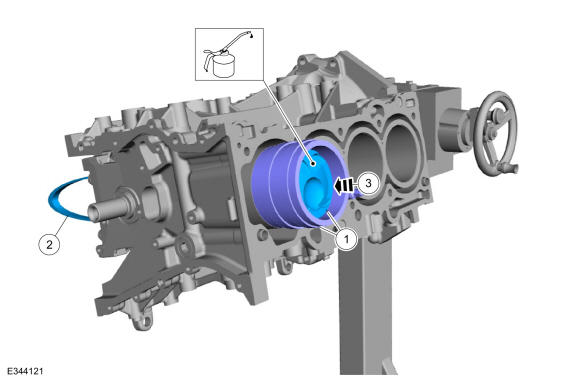

    1. Position the piston assembly and piston ring installer into the cylinder. Use the General Equipment: Piston Ring Compressor
    2. NOTE: A commercially available piston rod installer must be used to prevent damage to the crankshaft journal.

       Install a piston rod installer over the crankshaft journal and into the bolt holes of the connecting rod.

    3. Push the piston into the cylinder bore and guide the connecting rod onto the crankshaft journal.
    • Repeat the steps for each of the remaining pistons.

    Courtesy of FORD MOTOR COMPANY

27. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: After installation of each connecting rod cap, rotate the crankshaft to verify smooth operation.

    Install the connecting rod caps, bolts and tighten in 3 stages.

    Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 30 lb.ft (40 Nm) Stage 3: 90 deg.

    Courtesy of FORD MOTOR COMPANY

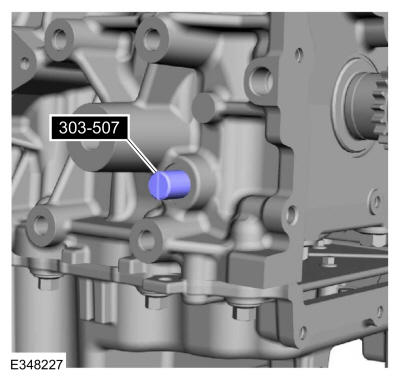

28. • Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    • Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC.

    Courtesy of FORD MOTOR COMPANY

29. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

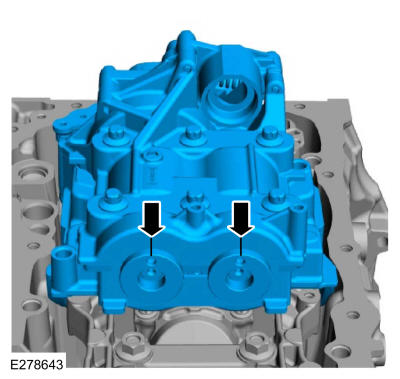

30. NOTE: Due to the precision interior construction of the balancer unit, it should not be disassembled.
    NOTE: The original adjustment shims must be installed in their original positions.
    NOTE: Confirm by visual inspection that there is no damage to the balancer unit gear and verify that the shaft turns smoothly. If there is any damage or malfunction, replace the balancer unit.

    Install the adjustment shims in their original positions on the seat faces of the balancer unit. With the balancer unit shaft marks in the TDC position, slowly install the balancer unit to the cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.

    Courtesy of FORD MOTOR COMPANY

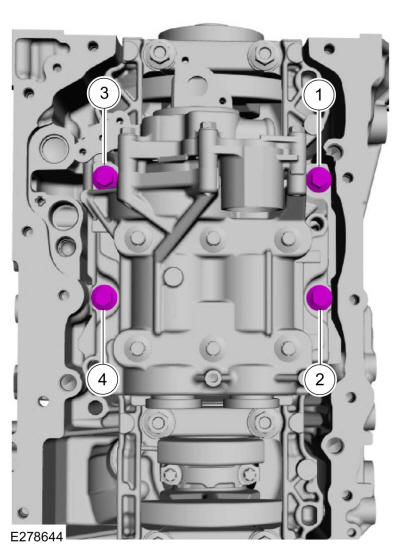

31. Install the bolts and tighten in 2 stages.

    Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 45 deg.

    Courtesy of FORD MOTOR COMPANY

32. Lubricate the oil screen and pickup tube O-ring seal with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

33. Install the oil pickup and screen and the bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

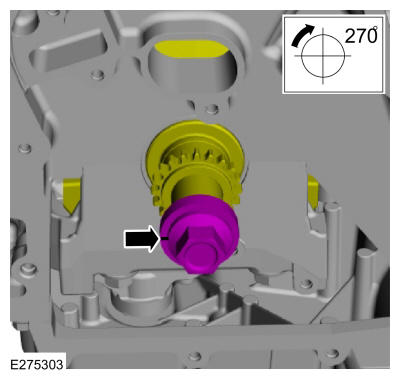

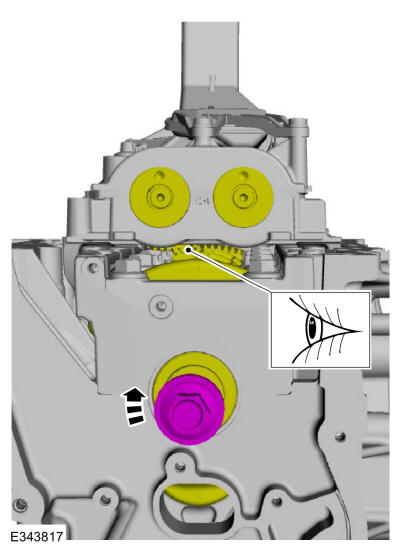

35. Install the crankshaft bolt and rotate the crankshaft to confirm that there are no meshing problems between the balancer unit gear and the crankshaft gear.

    Courtesy of FORD MOTOR COMPANY

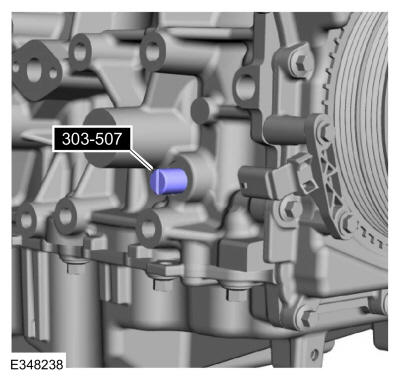

36. • Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    • Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC.

    Courtesy of FORD MOTOR COMPANY

37. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

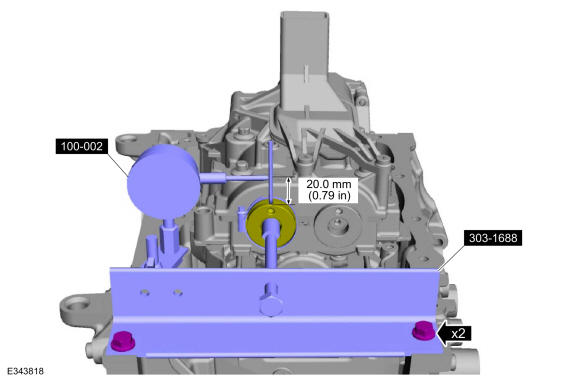

38. NOTE: Measure the backlash and verify that it is within specified range at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees. It will be necessary to reset the measuring equipment between measurements.
    NOTE: The measurement must be taken with the Dial Indicator Gauge with Holding Fixture, a 5-mm Allen wrench and worm clamp set up as shown.
    • NOTE: Make sure the worm clamp and Allen wrench are not touching the balance shaft housing.

      Install the 5-mm Allen wrench and tighten worm clamp as shown.

    • Mark the Allen wrench with a file 20 mm (0.79 in) above the driven gear top surface.

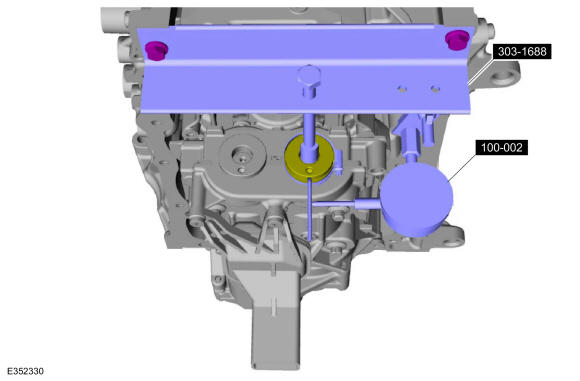

    • Install the balance shaft preload tool and bolts as shown. Use Special Service Tool: 303-1688 Preload Tool, Balance Shaft.
    • Install and position the dial indicator gauge with holding fixture on the Allen wrench 20 mm (0.79 in) as shown. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

    Courtesy of FORD MOTOR COMPANY

39. NOTE: The measurement must be taken with the engine in the normal installed position.

    Rotate the engine to the normal installed position.

40. NOTE: Measure the backlash and verify that it is within specified range at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees. It will be necessary to reset the measuring equipment between measurements.
    • Rotate the crankshaft clockwise and measure the backlash at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees.
    • Backlash specifications are 0.040 to 0.140 mm (0.00157 to 0.0055 in).
    • If the backlash exceeds the specified range, carry out the Balance Shaft Backlash procedure. Refer to: Balance Shaft Backlash .

    Courtesy of FORD MOTOR COMPANY

41. • Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    • Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC and must remain at the TDC position until the timing drive components and crankshaft pulley are installed.

    Courtesy of FORD MOTOR COMPANY

42. Rotate the engine to the upside down position.
43. Lubricate the oil inlet tube O-ring seals with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

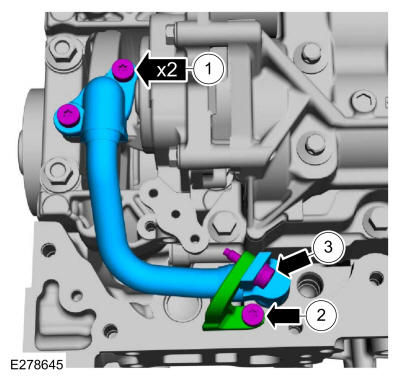

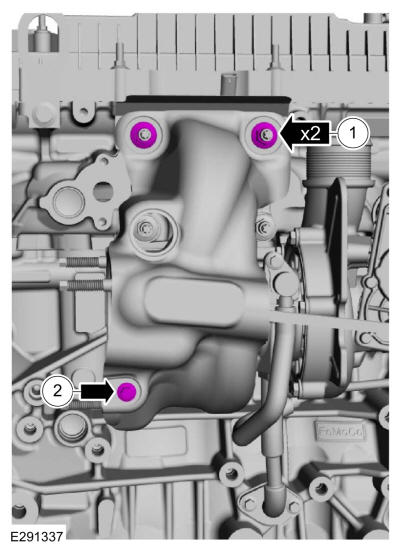

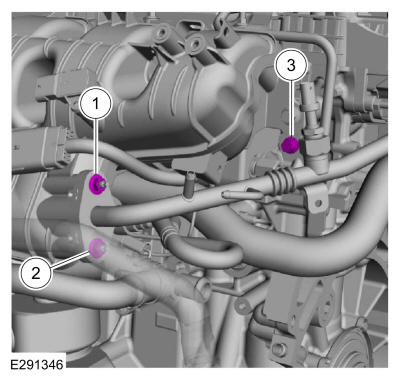

44. 1. Install the oil inlet tube and the bolts.

       Torque: 97 lb.in (11 Nm)

    2. Install the oil inlet tube bracket and the bolt.

       Torque: 97 lb.in (11 Nm)

    3. Install the oil inlet tube-to-bracket bolt.

       Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

45. Lubricate the oil outlet tube O-ring seals with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

46. Install the oil outlet tube and the bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

47. Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

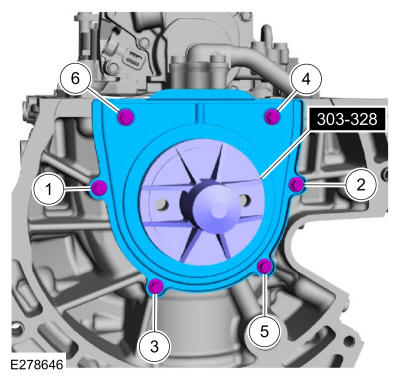

48. • Using the special tool, position the crankshaft rear oil seal onto the crankshaft. Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
    • Install the bolts and tighten in sequence shown.

      Torque: 97 lb.in (11 Nm)

    Fig 3: Crankshaft Rear Oil Seal Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
49. NOTE: If the oil pan is not secured within 10 minutes of silicone sealant application, the silicone sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

    Apply a 5 mm bead of silicone sealant on the chamfer, as shown.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

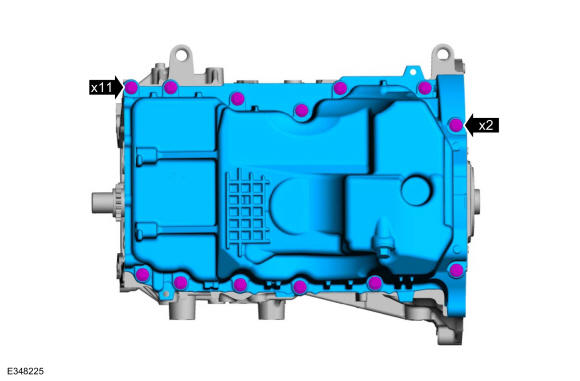

50. Install the oil pan and the new bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

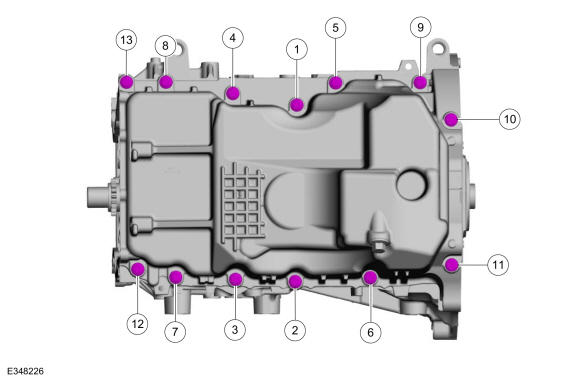

51. Tighten the bolts in sequence shown.

    Torque: 18 lb.ft (25 Nm)

    Fig 4: Oil Pan Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
52. Install the cylinder block bushings.

    Courtesy of FORD MOTOR COMPANY

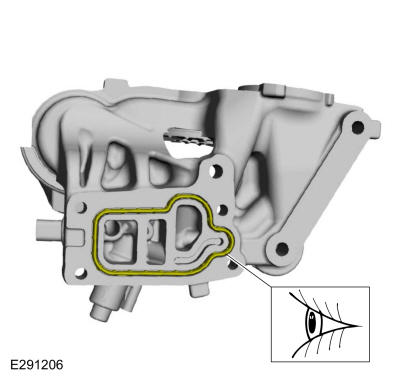

53. NOTE: Do not allow silicone sealant in or near the high-pressure oil feed hole. Any restriction in the high-pressure oil feed may result in engine damage.
    NOTE: The cylinder head must be installed within 10 minutes of applying the sealant.

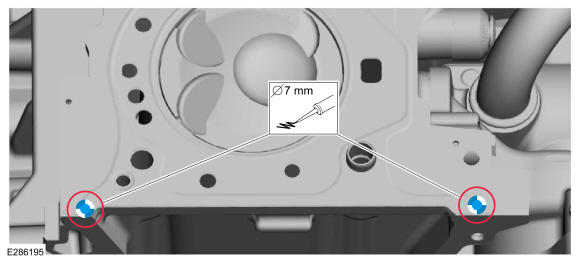

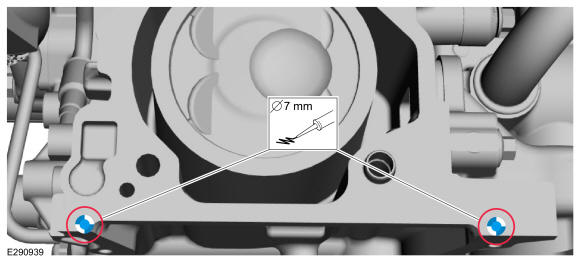

    Apply a 7 mm (0.28 in) drop of silicone sealant at positions shown on the cylinder block.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

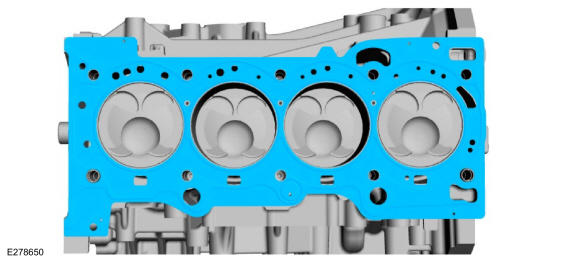

54. Install a new cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Do not allow silicone sealant in or near the high-pressure oil feed hole. Any restriction in the high-pressure oil feed may result in engine damage.
    NOTE: The cylinder head must be installed within 10 minutes of applying the sealant.

    Apply a 8 mm (0.31 in) drop of silicone sealant at positions shown.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

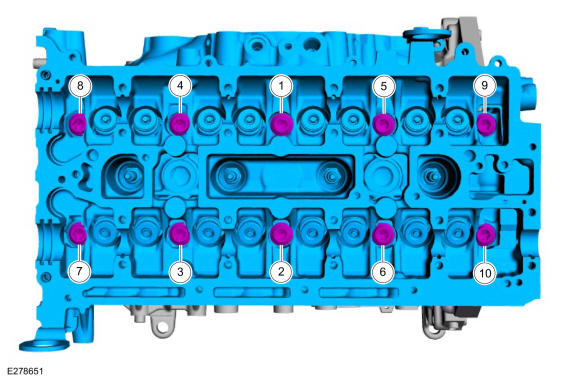

56. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

    Install the cylinder head and bolts and tighten in sequence shown in 5 stages.

    Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 133 lb.in (15 Nm) Stage 3: 41 lb.ft (55 Nm) Stage 4: 90 deg. Stage 5: 90 deg.

    Fig 5: Cylinder Head Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

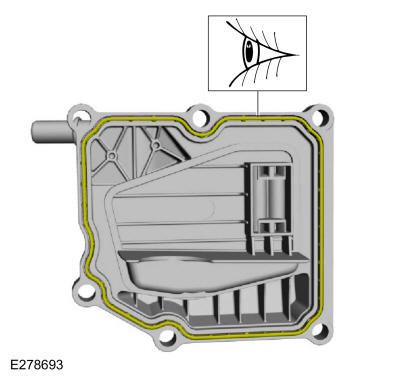

57. Install a new cylinder head cover gasket.

    Courtesy of FORD MOTOR COMPANY

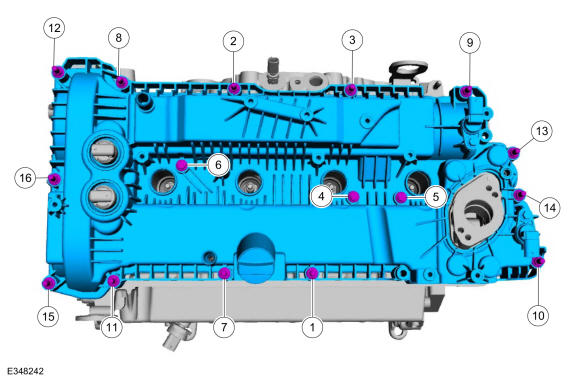

58. Install the cylinder head cover, bolts and stud bolt.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

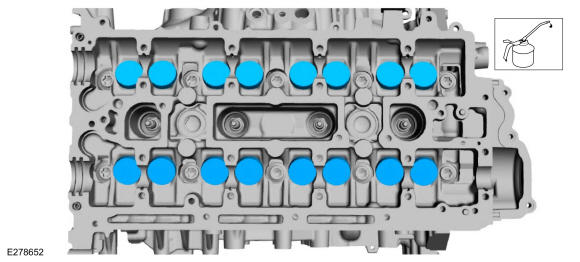

59. Lubricate with clean engine oil and install the valve tappets in their original position.

    Courtesy of FORD MOTOR COMPANY

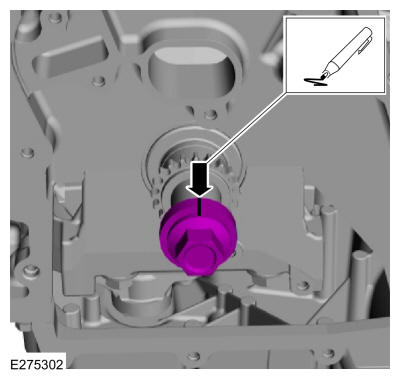

60. NOTE: If any new parts are being installed (cylinder head, valves, tappets, camshafts) it is necessary to check the valve clearance, follow the next 15 steps exactly or serious damage to the engine may occur. If the original parts are being installed it is not necessary to check the valve clearance so proceed to step  69

    Install the crankshaft bolt and place a paint mark on the crankshaft bolt at the 12 o'clock position.

    Courtesy of FORD MOTOR COMPANY

61. • Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

62. NOTE: Rotating the crankshaft will position all of the pistons below the deck of the cylinder block and allow the camshafts to be installed and the valve clearance checked without the possibility of damage to the valves or pistons.

    Using the crankshaft bolt and washer, rotate the crankshaft clockwise 270 degrees until the paint mark is at the 9 o'clock position.

    Courtesy of FORD MOTOR COMPANY

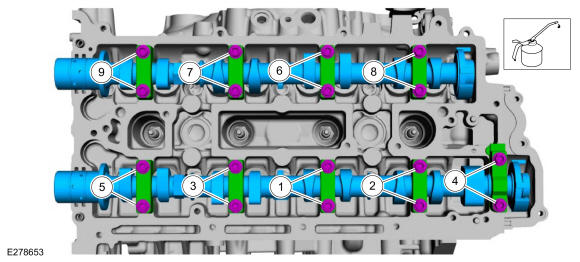

63. NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.
    NOTE: Lubricate the camshaft journals and camshaft bearing caps with clean engine oil.
    • Lubricate the camshafts and caps with clean engine oil and install the camshafts, caps and bolts.
    • Tighten 2 turns at a time in the sequence shown in 2 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Fig 6: Camshaft Bearing Caps Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
64. Lubricate the camshaft journals with clean engine oil and install the front camshaft bearing cap and bolts.

    Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Fig 7: Front Camshaft Bearing Cap Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
65. NOTE: Do not remove the spark plugs when the engine is hot or cold soaked. Spark plug thread or cylinder head damage can occur. Make sure the engine is warm (hand touch after cooling down) prior to spark plug removal.
    NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.
    NOTE: Only use hand tool to remove the spark plugs.

    Remove the spark plugs.

    Courtesy of FORD MOTOR COMPANY

66. 1. Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.
    2. Use a feeler gauge to measure the clearance of each valve and record its location. Use the General Equipment: Feeler Gauge
    3. Repeat to measure all of the lobe/tappet clearances.

    Courtesy of FORD MOTOR COMPANY

67. Valve tappet assembly grade chart
    1. Grade
    2. Id Mark
    3. Thickness (mm)

    Courtesy of FORD MOTOR COMPANY

68. NOTE: There are two numbers on the valve tappet, one is date code and the other is valve tappet thickness.
    NOTE: The date code "R0605" represents the year made (R), the month (06) and the day (05).
    NOTE: A tappet with the number N650 has the thickness of 3.650 mm.
    NOTE: Select tappets using this formula: tappet thickness = measured clearance + the existing tappet thickness - nominal clearance.
    NOTE: The nominal clearance is:
    • intake: 0.25 mm (0.0095 in).
    • exhaust: 0.36 mm (0.0142 in).
    NOTE: The acceptable clearances after being fully installed are:
    • intake: 0.19-0.31 mm (0.0075-0.0122 in).
    • exhaust: 0.30-0.42 mm (0.0118-0.0165 in).

    Select the closest tappet size to the ideal tappet thickness available and mark the installation location.

69. NOTE: Only use hand tool to install the spark plugs.

    Install the spark plugs.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

70. Remove the bolts and the front camshaft bearing cap.

    Courtesy of FORD MOTOR COMPANY

71. NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.
    NOTE: Note the location and orientation of each camshaft bearing cap and the position of the camshaft lobes on the No. 1 cylinder for installation reference.

    Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps. Remove the bolts, caps and camshafts.

    Courtesy of FORD MOTOR COMPANY

72. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

73. NOTE: Rotating the crankshaft will position the engine at TDC and allow you to install the camshafts in the same position as noted during the disassembly.

    Rotate the crankshaft clockwise 90 degrees so the crankshaft contacts the special tool.

    Courtesy of FORD MOTOR COMPANY

74. If necessary, replace any tappets with the correct tappets selected during the valve clearance check and lubricate with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

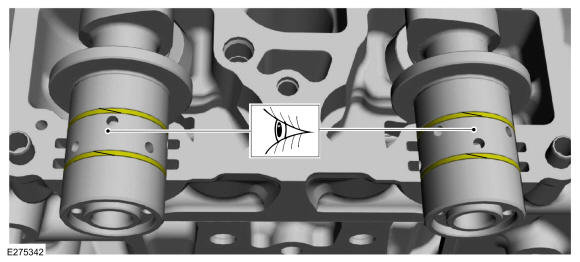

75. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Inspect and position the camshaft seals gaps at the 12 o'clock position as shown.

    Courtesy of FORD MOTOR COMPANY

76. NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the removal procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180 degrees out of position can cause severe damage to the valves and pistons.
    NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.
    NOTE: Lubricate the camshaft journals and camshaft bearing caps with clean engine oil.
    • Lubricate with clean engine oil and install the camshafts, caps and bolts.
    • Tighten the camshaft bearing cap bolts one turn at a time, until finger-tight.
    • Tighten 2 turns at a time in the sequence shown in 2 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Courtesy of FORD MOTOR COMPANY

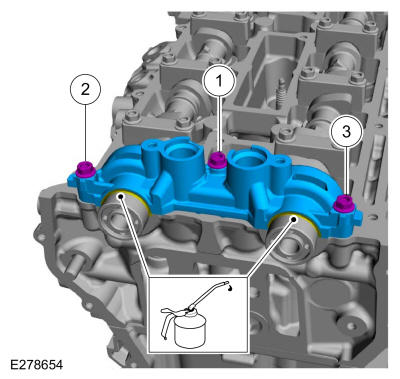

77. • Lubricate the camshaft journals with clean engine oil.
    • Install the front camshaft bearing cap and the bolts and tighten in 2 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Courtesy of FORD MOTOR COMPANY

78. Install the VCT oil control solenoids and the bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

79. NOTE: The special tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

    Install Special Service Tool: 303-1685 Alignment Tool, Camshaft.

    Courtesy of FORD MOTOR COMPANY

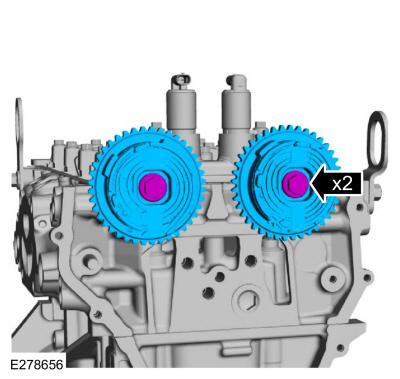

80. NOTE: Do not tighten the VCT unit bolts at this time.
    • Install the VCT units and the new bolts finger-tight.

    Courtesy of FORD MOTOR COMPANY

81. Install the tensioner arm, timing chain, timing chain guide and the bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

    NOTE: If the timing chain tensioner plunger is not pinned in the compressed position, follow the next step.
82. Reset the timing chain tensioner.
    1. Position the timing chain tensioner in a soft-jawed vise.
    2. Spread the ends of the ratchet wire clip apart.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the timing chain tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

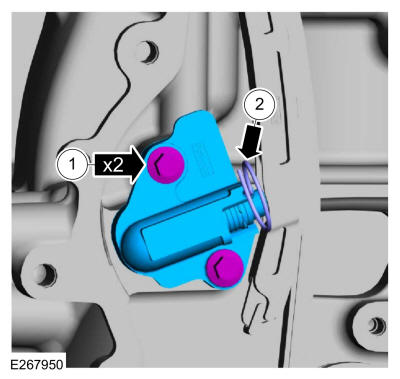

83. NOTE: Do not remove the locking pin until the tensioner bolts are tightened.
    1. Install the timing chain tensioner and the bolts.

       Torque: 89 lb.in (10 Nm)

    2. Remove the locking pin.

    Courtesy of FORD MOTOR COMPANY

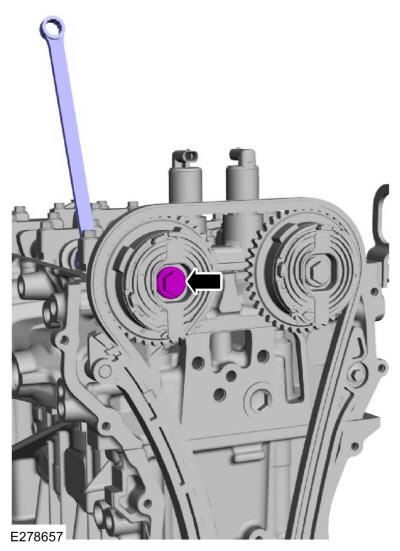

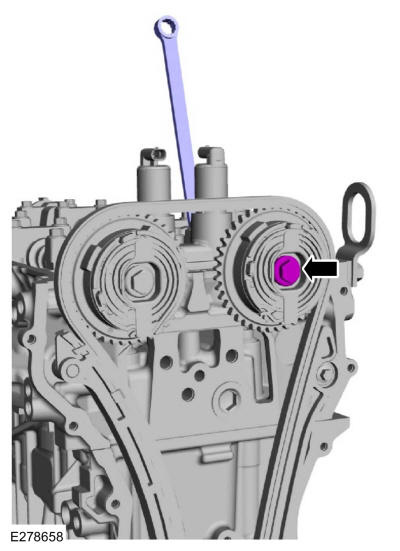

84. NOTE: Use an open-ended wrench to prevent the component from turning.

    Tighten the exhaust VCT unit bolt in 2 stages.

    Torque: Stage 1: 26 lb.ft (35 Nm) Stage 2: 135 deg.

    Courtesy of FORD MOTOR COMPANY

85. NOTE: Use an open-ended wrench to prevent the component from turning.

    Tighten the intake VCT unit bolt in 2 stages.

    Torque: Stage 1: 26 lb.ft (35 Nm) Stage 2: 135 deg.

    Courtesy of FORD MOTOR COMPANY

86. NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.
    • Apply a 3 mm (0.12 in) bead of silicone sealant on the 3 upper bosses, as shown.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 4 mm (0.16 in) bead of silicone sealant on the chamfer on the 2 lower bosses, as shown.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 5 mm (0.19 in) bead of silicone sealant on the chamfer, as shown.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

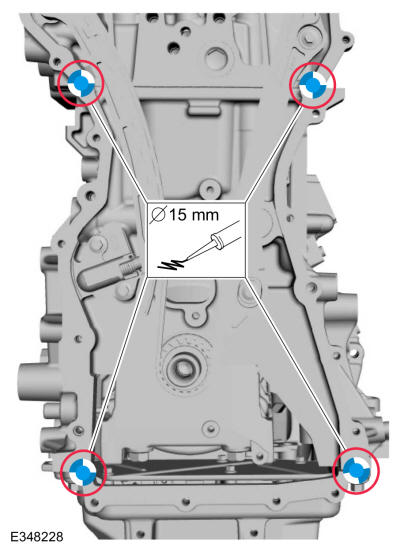

87. NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply a 15 mm (0.59 in) drop of silicone sealant at the cylinder head-to-cylinder block and cylinder block-to-oil pan joint areas.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

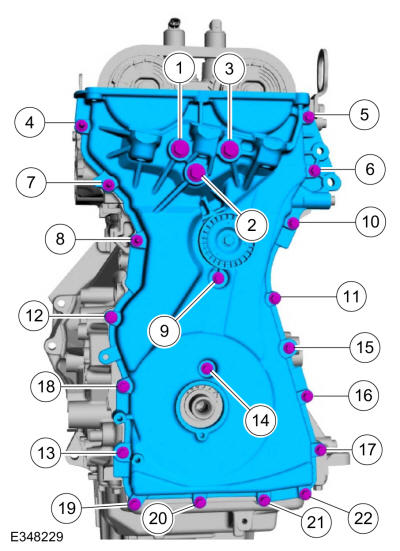

88. Install the engine front cover and the fasteners and tighten in the sequence shown.

    Torque: Bolts 1 - 3: 35 lb.ft (48 Nm) Bolts 4 - 22: 97 lb.in (11 Nm)

    Fig 8: Engine Front Cover Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
89. NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

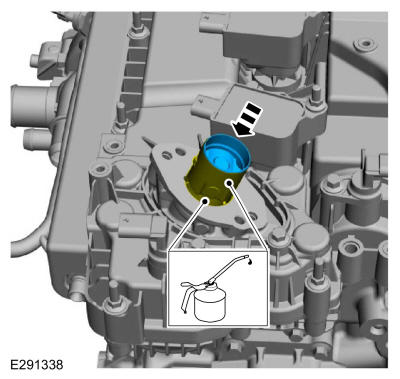

    Lubricate with clean engine oil and using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

    Courtesy of FORD MOTOR COMPANY

90. Lubricate the crankshaft pulley with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

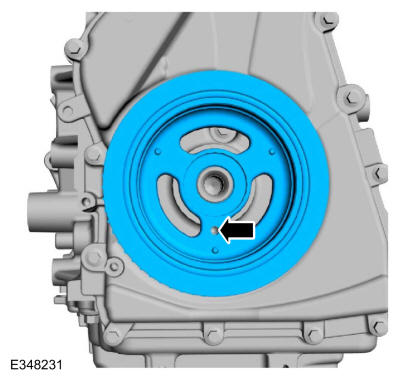

91. Install the crankshaft pulley as shown.

    Courtesy of FORD MOTOR COMPANY

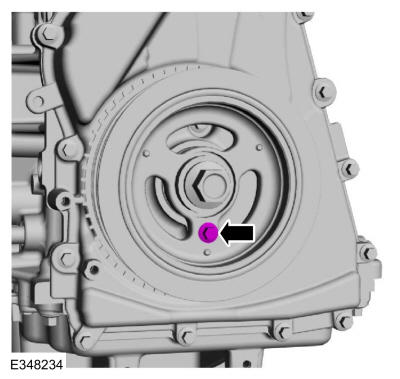

92. NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

    Install an M6 bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

93. NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the crank damper Holding Tool and the bolt should be installed using hand tools only.

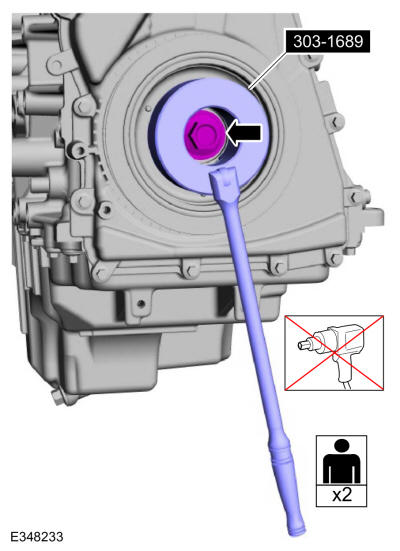

    With the aid of an assistant and using the special tool, install the new crankshaft bolt and washer and tighten. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper. Use the General Equipment: Strap Wrench

    Torque: Stage 1: 74 lb.ft (100 Nm) Stage 2: 90 deg.

    Courtesy of FORD MOTOR COMPANY

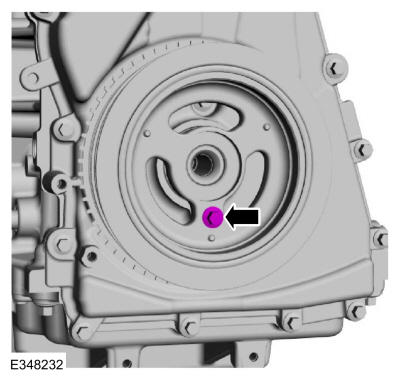

94. Remove the M6 bolt.

    Courtesy of FORD MOTOR COMPANY

95. NOTE: Do not tighten the CKP sensor bolts at this time.

    Install the CKP sensor and the bolts finger-tight.

    Courtesy of FORD MOTOR COMPANY

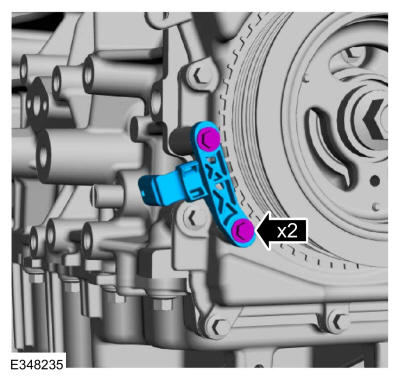

96. Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

97. Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

    Courtesy of FORD MOTOR COMPANY

98. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

99. Install the engine plug bolt.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

100. Remove Special Service Tool: 303-1685 Alignment Tool, Camshaft.

     Courtesy of FORD MOTOR COMPANY

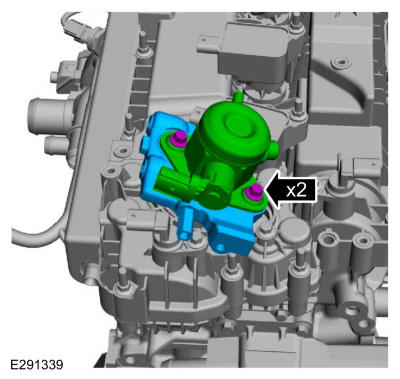

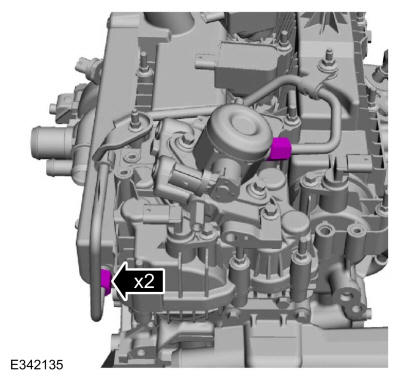

101. Install the high-pressure fuel pump drive unit and the bolts.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

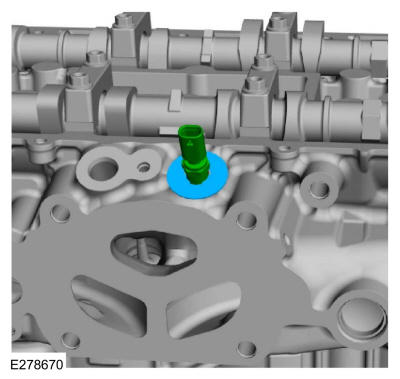

102. • Install the exhaust manifold heat shield on the new CHT sensor.
     • Install the CHT sensor.

       Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

103. NOTE: Do not use compressed air or the Fuel Injector Brush to clean the tip of the fuel injectors. Failure to follow this instruction may result in damage to the fuel injectors.
     NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

     Using the special tool, clean the fuel injector bores. Use Special Service Tool: 310-205 Fuel Injector Brush.

     Courtesy of FORD MOTOR COMPANY

104. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
     1. Install the Teflon® Seal Guide onto the fuel injector tip. Install Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
     2. NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.
        NOTE: Make sure that new lower fuel injector Teflon® seals are installed.

        Install the new Teflon® seals onto the Teflon® Seal Guide, using the Pusher Tool, slide the Teflon® seals along the Teflon® Seal Guide

     3. Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors.
     4. Remove the special tool. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.

     Courtesy of FORD MOTOR COMPANY

105. NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
     1. Massage and warm the Teflon® seal with your fingers before the Teflon® seal sizer tool is installed. This will aid in installing the Teflon® seal sizer tool.
     2. NOTE: The beveled opening of the Teflon® seal sizer tool goes away from the seal.

        Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees. Use Special Service Tool: 303-1567 Sizer, Teflon Seal.

     3. Once the Teflon® seal sizer tool is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.
     4. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.

     Courtesy of FORD MOTOR COMPANY

106. NOTE: The new the fuel injector support rings must be installed in the correct orientation with the wide surface area facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.
     NOTE: Make sure that new fuel injector support rings and new fuel injector O-ring seals are installed.
     1. Install the new the fuel injector support rings.
     2. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

        Install the new fuel injector O-rings.

     3. Install the new the fuel injector clips.

     Courtesy of FORD MOTOR COMPANY

107. NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.
     NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

     Install the fuel injectors in the fuel rail.

     Courtesy of FORD MOTOR COMPANY

108. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
     NOTE: Make sure that new fuel rail bolts are installed.

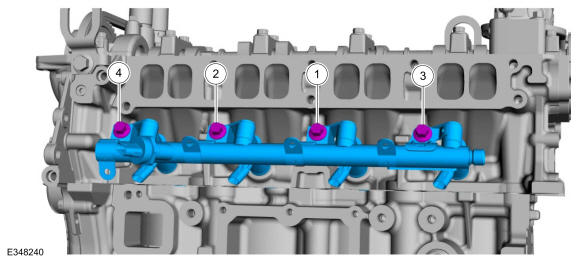

     • Install the fuel rail by push down on the fuel rail above the injectors.
     • Install the bolts and tighten in sequence shown in 5 stages.

       Torque: Stage 1: Tighten to: 89 lb.in (10 Nm) Stage 2: Back off to: 0 lb.in (0 Nm) Stage 3: Wait 5s Stage 4: Tighten to: 124 lb.in (14 Nm) Stage 5: Tighten an additional: 30 deg.

     Fig 9: Fuel Rail Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
109. Install the fuel rail insulator.

     Courtesy of FORD MOTOR COMPANY

110. • Install the harness and attach the fuel rail wiring harness retainers.
     • Connect the fuel rail wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

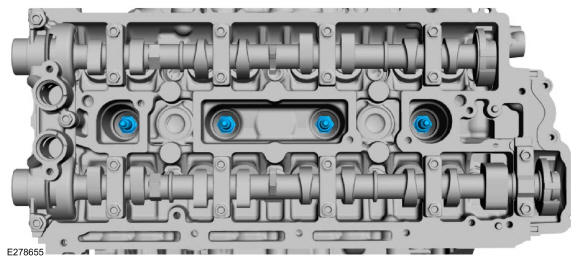

111. NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.

     If removed, using the special tools, install the VCT seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1687 Installer, VCT Solenoid Seal.

     Courtesy of FORD MOTOR COMPANY

112. Install new valve cover gaskets.

     Courtesy of FORD MOTOR COMPANY

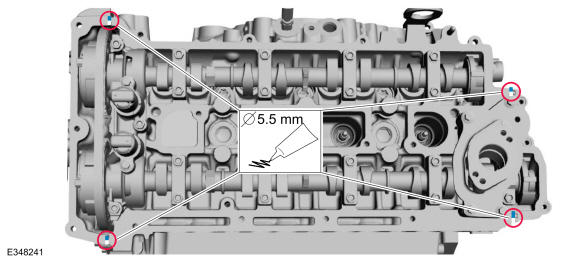

113. Apply a 5.5 mm bead of silicone sealant.

     Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

114. NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the silicone sealant must be removed and the sealing area cleaned.

     Install the valve cover and tighten the fasteners in the sequence shown.

     Torque: 97 lb.in (11 Nm)

     Fig 10: Valve Cover Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
115. Inspect and replace any ignition coil-on-plug rubber boots with cracks, rips or tears.

     Courtesy of FORD MOTOR COMPANY

116. • Install the ignition coil-on-plugs and the fasteners.

       Torque: 97 lb.in (11 Nm)

     • Install the oil level indicator.

     Courtesy of FORD MOTOR COMPANY

117. Inspect and replace if damaged.

     Courtesy of FORD MOTOR COMPANY

118. Install the coolant outlet, stud bolt and the bolts.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

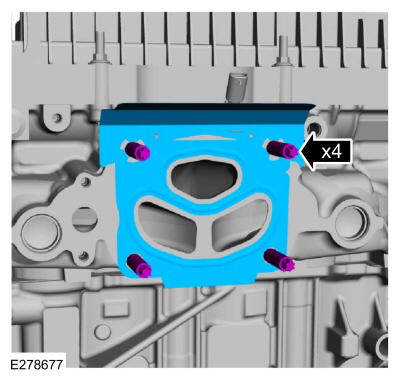

119. • If removed, install the studs.

       Torque: 159 lb.in (18 Nm)

     • Install the new gasket.

     Courtesy of FORD MOTOR COMPANY

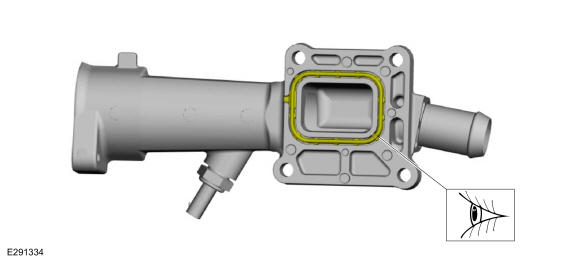

120. Install a new coolant outlet O-ring seal and lubricate the O-ring seal and tube seal with clean engine coolant.

     Courtesy of FORD MOTOR COMPANY

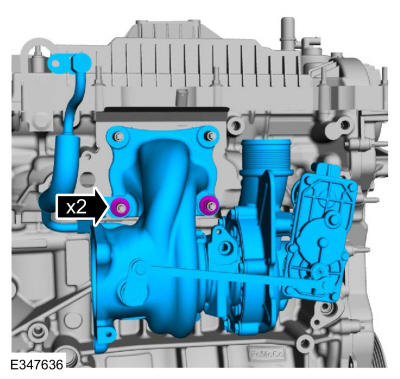

121. Install the turbocharger and the nuts.

     Torque: 39 lb.ft (53 Nm)

     Courtesy of FORD MOTOR COMPANY

122. Install the coolant outlet tube O-ring seal and lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

123. Install the coolant outlet tube and the bolt.

     Torque: 35 lb.ft (48 Nm)

     Courtesy of FORD MOTOR COMPANY

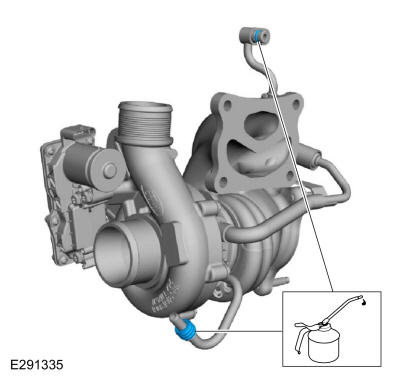

124. Lubricate the O-ring seals with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

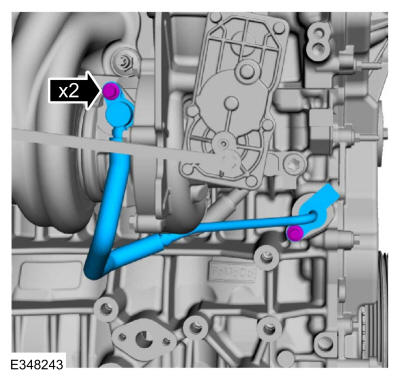

125. Install the new cylinder block-to-turbocharger oil supply pipe and the bolts.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

126. Install the heat shield, nuts and the bolt finger-tight.

     Courtesy of FORD MOTOR COMPANY

127. 1. Tighten.

        Torque: 39 lb.ft (53 Nm)

     2. Tighten.

        Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

128. Lubricate the O-ring seal with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

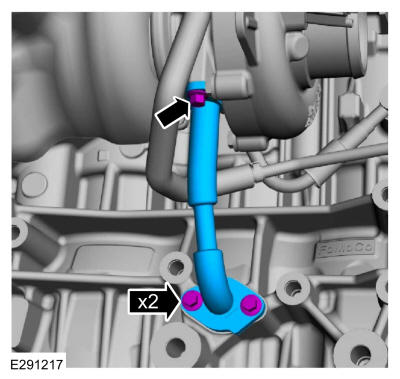

129. NOTE: The oil drain hose must be fully seated prior to fastener rundown.

     Install the new turbocharger-to-cylinder block oil return pipe and the bolts.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

130. Install coolant hose bracket and the bolt.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

131. Install a new coolant pump adapter assembly gasket.

     Courtesy of FORD MOTOR COMPANY

132. Install the coolant pump adapter assembly and the bolts.

     Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 45 deg.

     Courtesy of FORD MOTOR COMPANY

133. NOTE: The high-pressure fuel pump tappet cam lobe must be positioned at zero lift before installing the high-pressure fuel pump drive unit.

     Rotate the crankshaft to position the camshaft at zero lift.

     Courtesy of FORD MOTOR COMPANY

134. Inspect the high-pressure fuel pump tappet for flat spots or scoring, especially in the indicated areas. If any damage is found, inspect the high-pressure fuel pump and the high-pressure fuel pump tappet drive lobe. Install new components as necessary.

     Courtesy of FORD MOTOR COMPANY

135. Lubricate the bore and the high-pressure fuel pump tappet with clean engine oil and install.

     Courtesy of FORD MOTOR COMPANY

136. • Make sure that the mating faces are clean and free of foreign material.
     • Inspect the mounting plate gasket, clean and replace the mounting plate gasket as needed.

     Courtesy of FORD MOTOR COMPANY

137. Install a new high-pressure fuel pump O-ring seal.

     Courtesy of FORD MOTOR COMPANY

138. NOTE: Install new bolts.

     Install the high-pressure fuel pump, mounting plate and alternately tighten each bolt one complete revolution until seated in 2 stages.

     Torque: Stage 1: 115 lb.in (13 Nm) Stage 2: 45 deg.

     Courtesy of FORD MOTOR COMPANY

139. Install the bracket and the bolt.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

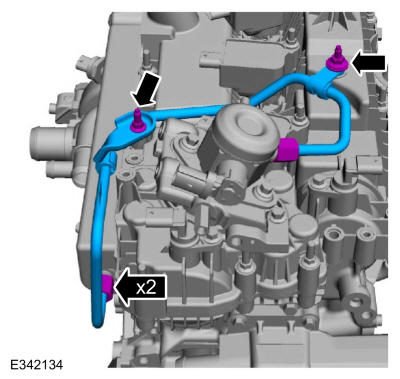

140. NOTE: Install a new fuel tube.
     • Install the fuel tube and the bolts finger-tight.
     • Install the flare nuts finger-tight.

     Courtesy of FORD MOTOR COMPANY

141. Tighten the flare nuts in 2 stages.

     Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 38 deg.

     Courtesy of FORD MOTOR COMPANY

142. Tighten the bolts.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

143. Install the vent tube bracket and the nut.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

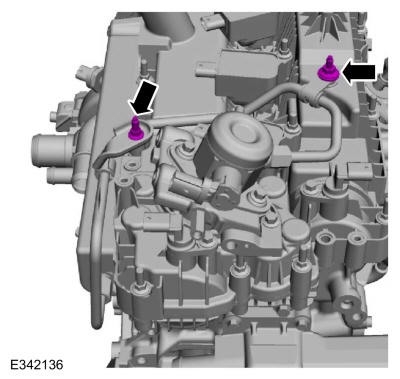

144. Install the fuel pump cover stud.

     Torque: 44 lb.in (5 Nm)

     Courtesy of FORD MOTOR COMPANY

145. If equipped, install the block heater.

     Torque: 30 lb.ft (40 Nm)

     Courtesy of FORD MOTOR COMPANY

146. Inspect and replace the crankcase vent separator gasket, if damaged.

     Courtesy of FORD MOTOR COMPANY

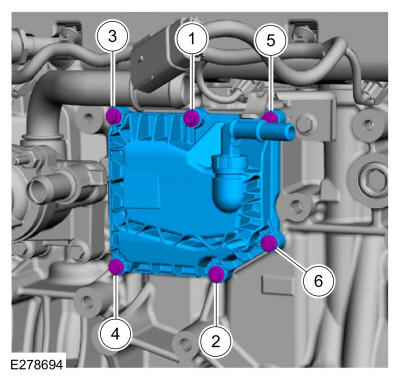

147. Install the crankcase vent separator and the bolts and tighten in sequence shown.

     Torque: 97 lb.in (11 Nm)

     Fig 11: Crankcase Vent Separator Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
148. NOTE: The forward KS must be installed in the 5 o'clock position and the rearward KS must be installed in the 3 o'clock position as shown in the graphic. Failure to follow these instructions may result in damage to the engine.

     Install the KS in their original position and install the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

149. Connect the crankcase vent oil separator tube. Refer to: Quick Release Coupling .

     Courtesy of FORD MOTOR COMPANY

150. Install the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

151. Install the A/C compressor bracket and the bolts.

     Torque: 35 lb.ft (48 Nm)

     Courtesy of FORD MOTOR COMPANY

152. Install the RH engine mount bracket and the bolts.

     Torque: 41 lb.ft (55 Nm)

     Courtesy of FORD MOTOR COMPANY

153. Inspect and replace if damaged.

     Courtesy of FORD MOTOR COMPANY

154. Install the oil filter adapter assembly stud.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

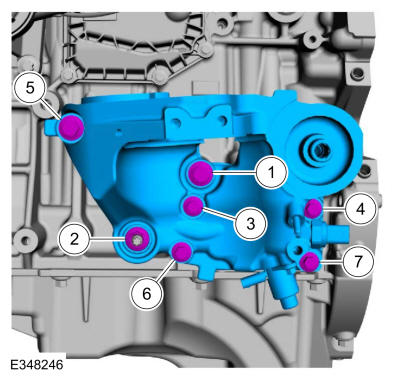

155. Install the oil filter adapter, nut and bolts and tighten in sequence shown.

     Torque: Stage 1: Tighten bolts 1 and 5 to: 33 lb.ft (45 Nm) Stage 2: Tighten bolts 1 and 5 additional: 60 deg. Stage 3: Tighten the nut to: 33 lb.ft (45 Nm) Stage 4: Tighten the nut additional: 60 deg. Stage 5: Tighten bolts 3, 4, 5 and 7 to: 177 lb.in (20 Nm) Stage 6: Tighten bolts 3, 4, 5 and 7 additional: 45 deg.

     Fig 12: Oil Filter Adapter Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
156. Install the oil filter trough and the nut.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

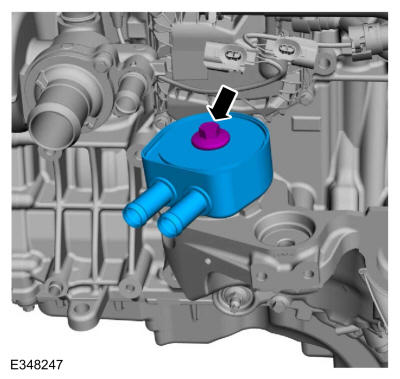

157. Install the oil cooler and the bolt.

     Torque: Stage 1: 17 lb.ft (22.5 Nm) Stage 2: 75 deg. Stage 3: Wait 2s Stage 4: 15 deg.

     Courtesy of FORD MOTOR COMPANY

158. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
     • Visually inspect the intake manifold for metal debris.

     Courtesy of FORD MOTOR COMPANY

159. • Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be reused.
     • Clean and inspect all of the sealing surfaces of the intake manifold.

     Courtesy of FORD MOTOR COMPANY

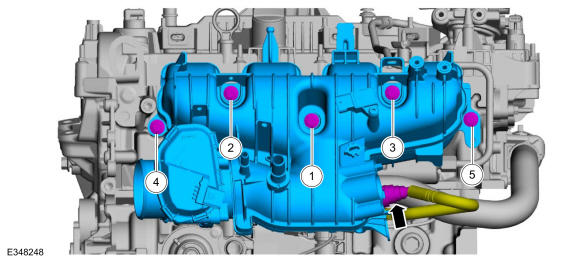

160. • Install the intake manifold and the bolts and tighten in sequence shown.

       Torque: 18 lb.ft (25 Nm)

     • Connect the crankcase vent oil separator tube quick release coupling to the intake manifold. Refer to: Quick Release Coupling .
     Fig 13: Intake Manifold Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY

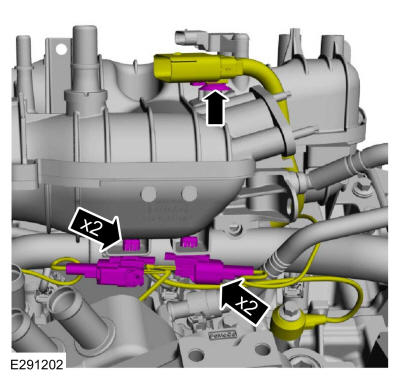

161. • Connect and attach the KS electrical connectors.
     • Attach the fuel rail harness electrical connector to the intake manifold.

     Courtesy of FORD MOTOR COMPANY

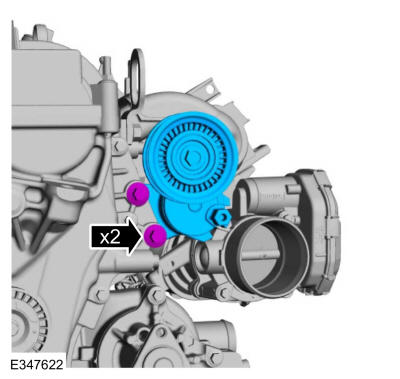

162. Install the accessory drive belt tensioner and the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

163. Install the coolant pump pulley and the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

164. Lubricate the coolant tube O-ring seal with clean engine coolant.

     Courtesy of FORD MOTOR COMPANY

165. NOTE: The coolant tube must be fully seated prior to tighten the bolt.

     Install the coolant tube and the bolts.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

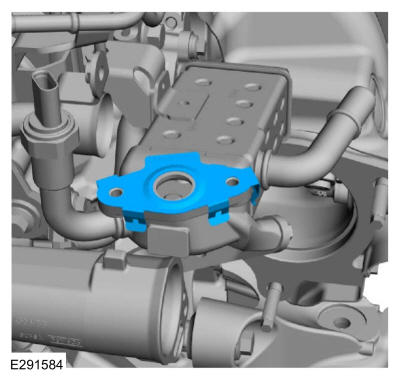

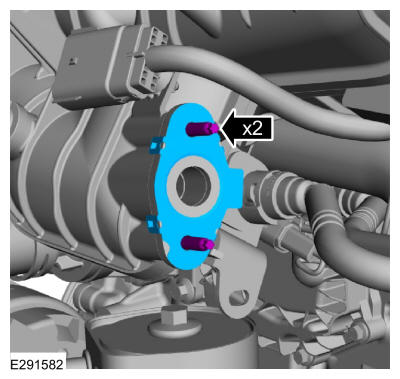

166. • Install the EGR inlet tube studs finger tight.
     • Install a new EGR inlet tube assembly gasket.

     Courtesy of FORD MOTOR COMPANY

167. Install the EGR inlet tube assembly and the nuts and bolts finger tight.

     Courtesy of FORD MOTOR COMPANY

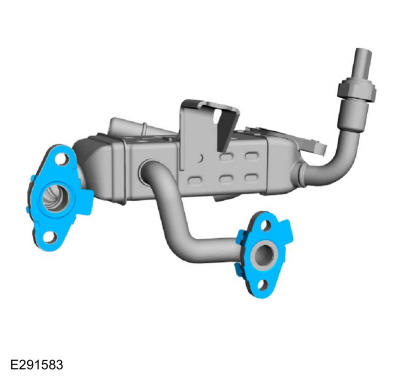

168. Install new EGR cooler gaskets.

     Courtesy of FORD MOTOR COMPANY

169. Install the EGR cooler and the bolts finger tight.

     Courtesy of FORD MOTOR COMPANY

170. Install the EGR cooler bracket, bolt and stud bolt finger tight.

     Courtesy of FORD MOTOR COMPANY

171. Install a new EGR valve gasket.

     Courtesy of FORD MOTOR COMPANY

172. Install a new EGR valve O-ring seal and lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

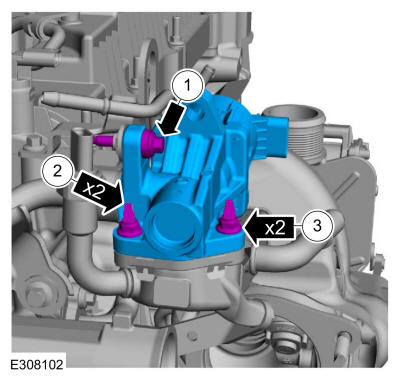

173. 1. Install the EGR valve and the bolt finger tight.
     2. Install the EGR valve studs finger tight.
     3. Install the EGR valve nuts finger tight.

     Courtesy of FORD MOTOR COMPANY

174. 1. Install the EGR valve bracket and nut finger tight.
     2. Install the EGR valve bracket bolt finger tight.

     Courtesy of FORD MOTOR COMPANY

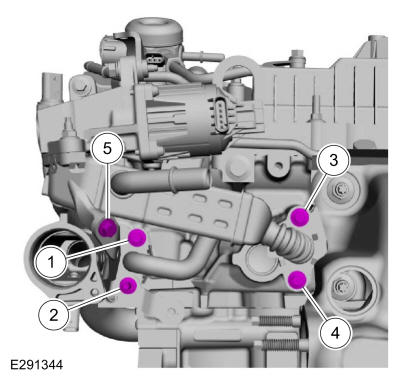

175. Tighten the bolts in sequence shown below.

     Torque: 97 lb.in (11 Nm)

     Fig 14: EGR Valve Bracket Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY

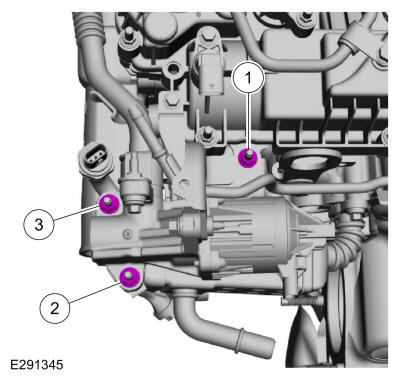

176. Tighten the nuts in sequence shown below.

     Torque: 97 lb.in (11 Nm)

     Fig 15: EGR Valve Bracket Nuts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
177. Tighten the nuts and bolt in sequence shown.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

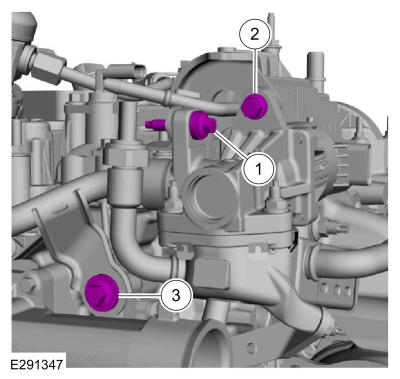

178. Tighten the bolts in sequence shown.

     Torque: Stage 1: Tighten bolts 1 and 2 to: 97 lb.in (11 Nm) Stage 2: Tighten bolt 3 to: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

179. • Install the EGR transducer assembly and the bolt.

       Torque: 97 lb.in (11 Nm)

     • Install the EGR transducer hoses. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

180. Lubricate the coolant tube O-ring seal with clean engine coolant.

     Courtesy of FORD MOTOR COMPANY

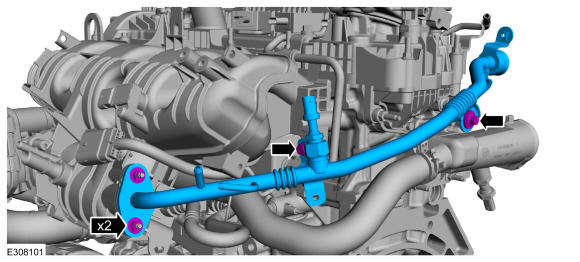

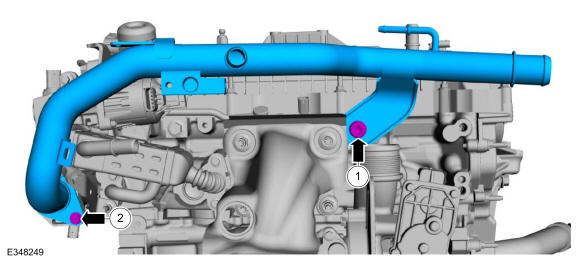

181. Install the coolant tube and the bolts.

     Torque: Stage 1: Tighten bolt 1 to: 35 lb.ft (48 Nm) Stage 2: Tighten bolt 2 to: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

182. 1. Install the coolant tube support bracket and the bolt.

        Torque: 97 lb.in (11 Nm)

     2. Install the coolant tube support bracket bolt.

        Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

183. Install a new turbocharger coolant tube O-ring seal and lubricate with clean engine coolant.

     Courtesy of FORD MOTOR COMPANY

184. Position the turbocharger coolant tube and install the bolt.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

185. • Install the coolant hoses, valve and bracket assembly and release the clamps. Use the General Equipment: Hose Clamp Remover/Installer
     • Attach the coolant hose retainer.

     Courtesy of FORD MOTOR COMPANY

186. Position the coolant hose and connect.

     Courtesy of FORD MOTOR COMPANY

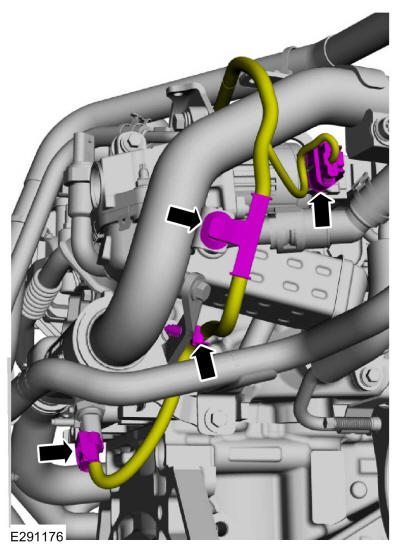

187. Install the engine wiring harness and attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

188. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

189. Attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

190. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

191. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

192. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

193. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

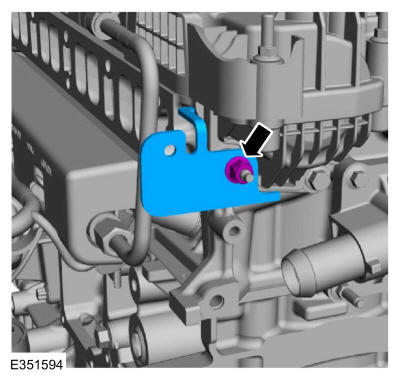

     • Install the ground and the bolt.

       Torque: 177 lb.in (20 Nm)

     Courtesy of FORD MOTOR COMPANY

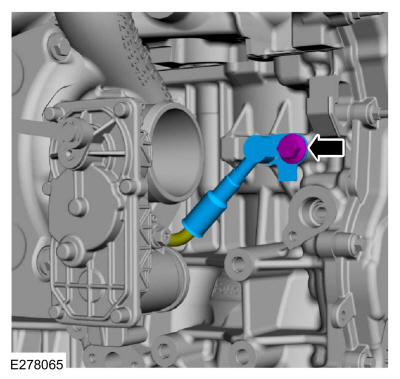

194. • Install the ground wire harness and the bolt.

       Torque: 177 lb.in (20 Nm)

     • Attach the ground wire harness retainers.

     Courtesy of FORD MOTOR COMPANY

195. Install the engine lift equipment.

     Courtesy of FORD MOTOR COMPANY

196. Using a floor crane, remove the engine from the mounting stand. Use the General Equipment: Mounting Stand

     Courtesy of FORD MOTOR COMPANY

     7-Speed Manual Transmission - MT88

197. • NOTE: Special bolts are used for installation. Do not use standard bolts.

       Install the flywheel and the new bolts finger-tight.

     • Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
     • Tighten the bolts in sequence shown in 3 stages.

       Torque: Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 86 lb.ft (116 Nm)

     Courtesy of FORD MOTOR COMPANY

198. Using the Clutch Alignment Tool, position the clutch disc on the flywheel. Use the General Equipment: Clutch Alignment Tool

     Courtesy of FORD MOTOR COMPANY

199. • Using the Clutch Alignment Tool, position the clutch pressure plate on the flywheel and install the clutch pressure plate bolts. Use the General Equipment: Clutch Alignment Tool
     • Tighten the bolts in sequence shown in 3 stages.

       Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm) Stage 3: 21 lb.ft (29 Nm)

     Courtesy of FORD MOTOR COMPANY

     10-Speed Automatic Transmission - 10R60

200. • NOTE: Special bolts are used for installation. Do not use standard bolts.

       Install the flexplate and the new bolts finger-tight.

     • Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
     • Tighten the bolts in sequence shown in 3 stages.

       Torque: Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 83 lb.ft (112 Nm)

Courtesy of FORD MOTOR COMPANY
