Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the clutch slave cylinder. Refer to: Clutch Slave Cylinder
- NOTE: Use caution as not to scratch the sealing surfaces of input shaft or transmission housing.

  NOTE: The input shaft seal has 2 designated patches that are for puncture holes.

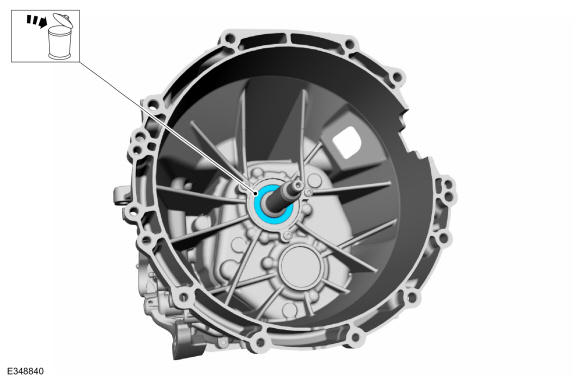

  Screw a self-tapping screw into the input shaft seal.
- Pull out the screw and the input shaft seal with pliers.
- Discard the input shaft seal.

GFD626793

Courtesy of FORD MOTOR COMPANY
