Section 19 (Manual Transmission - 7-Speed Manual Transmission - Mt88): Disassembly: Transmission

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-071-01Adapter for 205-071 (Thrust Pad)
Courtesy of FORD MOTOR COMPANY	205-175Socket, Drive Pinion Nut TKIT-2001-FLM TKIT-2001-ROW TKIT-2002N-LM TKIT-2002-M
Courtesy of FORD MOTOR COMPANY	308-883Wrench, Output Shaft Nut
Slide Hammer Dent Puller
Hydraulic Press
Puller
Two Leg Puller
Punch

WARNING: Be prepared to collect escaping fluid.

Remove the drain plug and drain the transmission fluid.

Courtesy of FORD MOTOR COMPANY

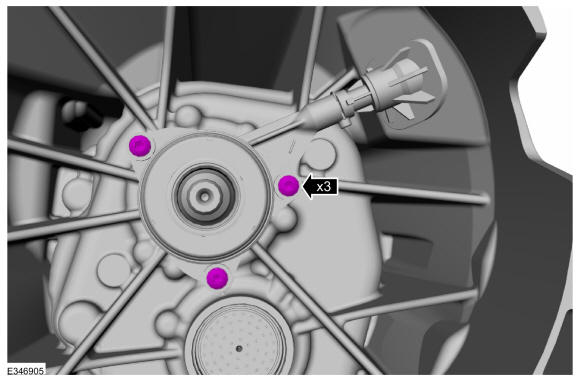

Remove the slave cylinder bolts.

Courtesy of FORD MOTOR COMPANY

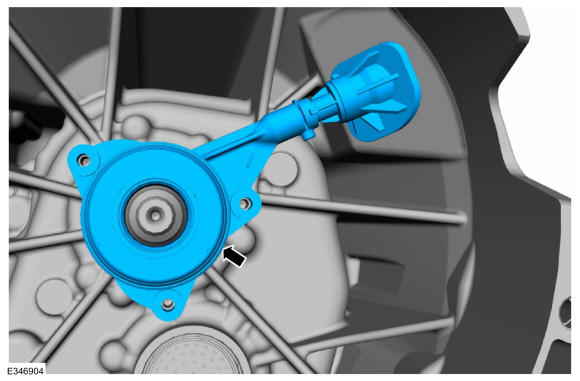

Remove the slave cylinder.

Courtesy of FORD MOTOR COMPANY
NOTE: Use caution as not to scratch the sealing surfaces of input shaft or transmission housing.

NOTE: The input shaft seal has 2 designated patches that are for puncture holes.

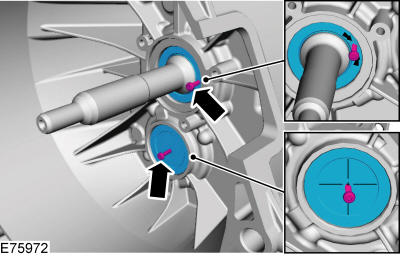

Using a screw/dent puller and slide hammer, remove and discard the input shaft seal and the counter shaft bolt plug. Use the General Equipment: Slide Hammer Dent Puller

Courtesy of FORD MOTOR COMPANY
Place the transmission in 4th gear.

Courtesy of FORD MOTOR COMPANY

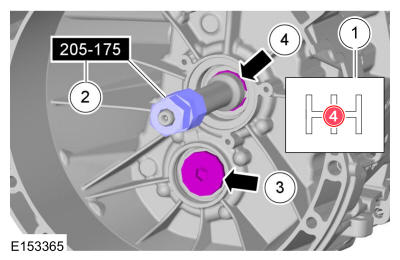

1. Place the transmission in 4th gear.
2. Install the special tool on the input shaft. Use Special Service Tool: 205-175 Socket, Drive Pinion Nut.
3. Holding the special tool, remove the counter shaft bolt.
4. NOTE: Use care to not scratch the input shaft surfaces or a leak may be the result.

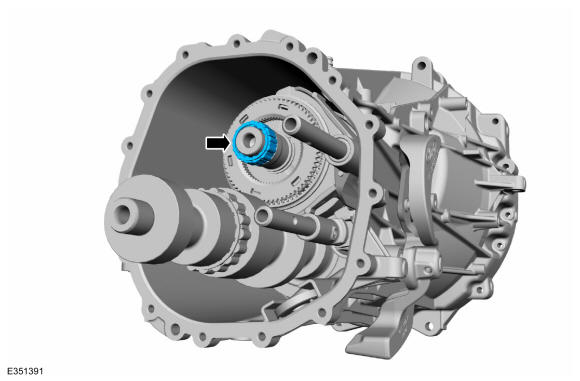

  Remove and discard the input shaft circlip.
Courtesy of FORD MOTOR COMPANY
Remove the screws and the gear position sensor.

Courtesy of FORD MOTOR COMPANY
1. Assure the transmission is in fourth gear.
2. Use the special tool to hold the input shaft. Use Special Service Tool: 205-175 Socket, Drive Pinion Nut.
3. Using the special tool, remove the output shaft nut. Use Special Service Tool: 308-883 Wrench, Output Shaft Nut.
Courtesy of FORD MOTOR COMPANY
NOTE: Use care to not scratch the output shaft surfaces or leaks may be the result.

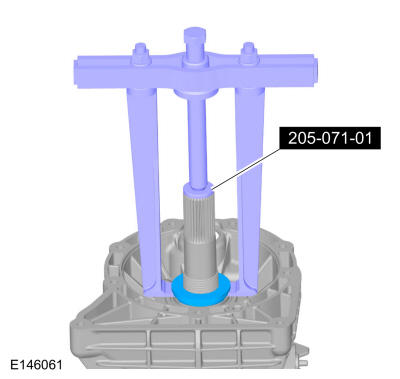

Using the special tool, remove the output shaft oil seal thrust pad. Use Special Service Tool: 205-071-01 Adapter for 205-071 (Thrust Pad).Use the General Equipment: Puller

Courtesy of FORD MOTOR COMPANY

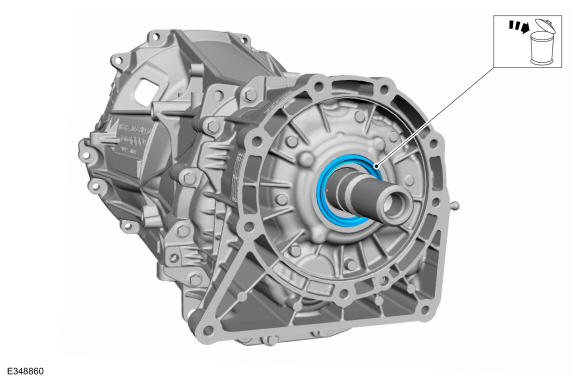

Remove and discard the output shaft oil seal.

Courtesy of FORD MOTOR COMPANY

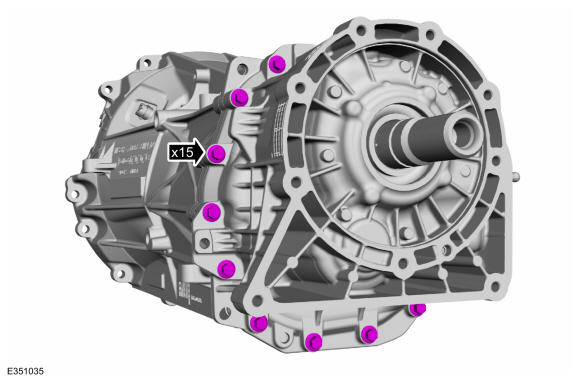

Remove the rear transmission case bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a two leg puller OTC-1040 or equivalent.

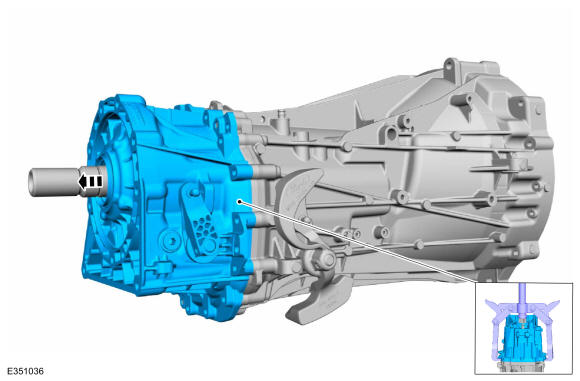

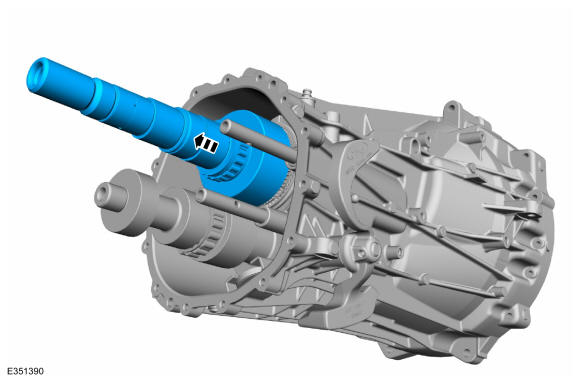

Using a 2 jaw puller and a thrust pad, remove the rear transmission case. Use the General Equipment: Two Leg Puller

Courtesy of FORD MOTOR COMPANY
Remove the output shaft thrust washer.

Courtesy of FORD MOTOR COMPANY
Remove the crawler gear.

Courtesy of FORD MOTOR COMPANY
Remove the crawler gear bearing.

Courtesy of FORD MOTOR COMPANY
Remove the crawler gear synchronizer rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care to not scratch the output shaft surfaces or a leak may be the result.

Remove the crawler/reverse gear synchronizer circlip.

Courtesy of FORD MOTOR COMPANY

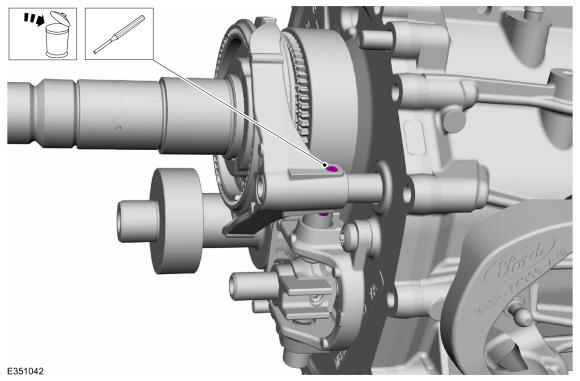

Remove and discard the crawler/reverse gear synchronizer fork roll pin.

Courtesy of FORD MOTOR COMPANY
Remove the crawler/reverse gear synchronizer and fork.

Courtesy of FORD MOTOR COMPANY
Remove the reverse gear synchronizer rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care to not scratch the output shaft surfaces or a leak may be the result.

Remove the crawler/reverse gear synchronizer circlip.

Courtesy of FORD MOTOR COMPANY
Remove the reverse idler gear and bearing and shaft.

Courtesy of FORD MOTOR COMPANY
Remove the reverse gear.

Courtesy of FORD MOTOR COMPANY
Remove the reverse gear bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: Use caution to not round out the hex head of the select gate pin.

NOTE: The select gate pin may require to be heated by a heat gun for removal.

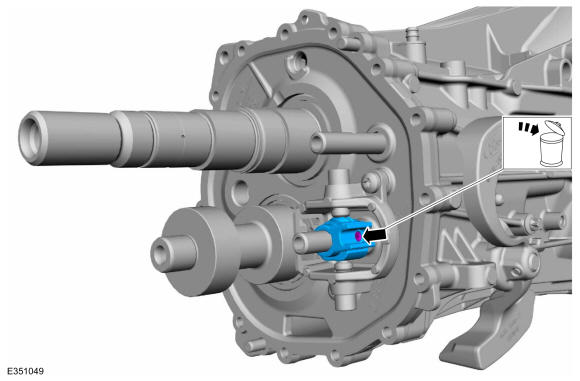

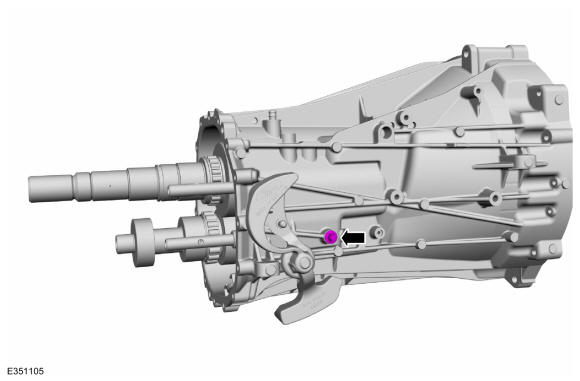

Remove and discard select gate pin. Remove the shift selector.

Courtesy of FORD MOTOR COMPANY
Remove the shift gate bolts and the shift gate.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Use a two leg puller OTC-1040 or equivalent.

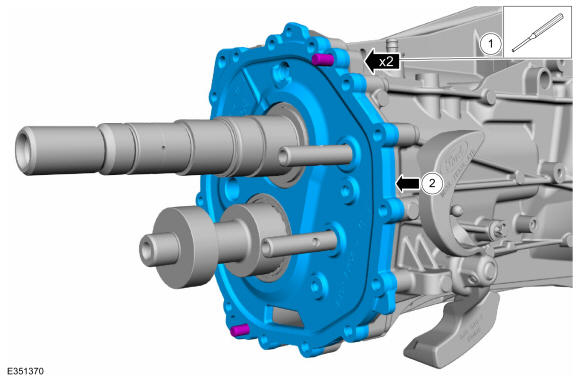

  Using a soft face hammer and punch, remove the alignment dowel pins. Use the General Equipment: Punch
2. NOTE: When removing the midplate, the midplate bearing should stay on the shafts, however they may come off with the midplate. Be prepared for the midplate bearings to fall out.

  NOTE: Use caution and pull the midplate off square or damage to the midplate bearing could occur.

  Using a 2 jaw puller and a thrust pad, remove the transmission mid plate. Use the General Equipment: Two Leg Puller
Courtesy of FORD MOTOR COMPANY
Remove the shift dampener lever spacer.

Courtesy of FORD MOTOR COMPANY
Position the shift dampener lever outward.

Courtesy of FORD MOTOR COMPANY

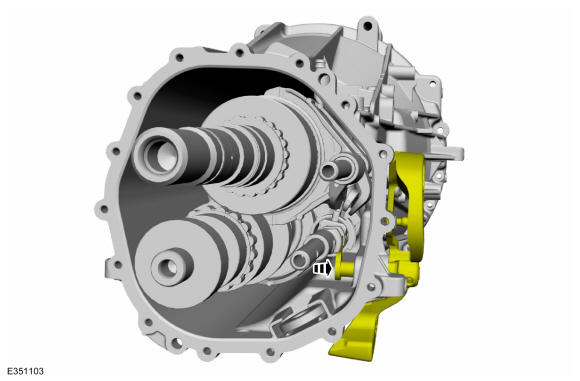

Remove the gearshift lever pivot bolt.

Courtesy of FORD MOTOR COMPANY

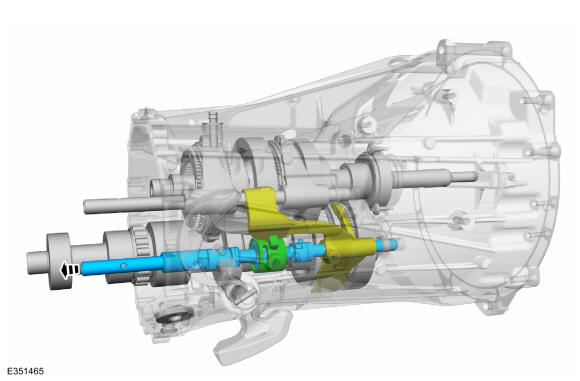

Remove the output shaft.

Courtesy of FORD MOTOR COMPANY
NOTE: The connection bearing may stay with the output shaft upon separation of the output shaft and input shaft.

Remove the output/input shaft connection bearing

Courtesy of FORD MOTOR COMPANY
Remove the shift shaft.

Courtesy of FORD MOTOR COMPANY

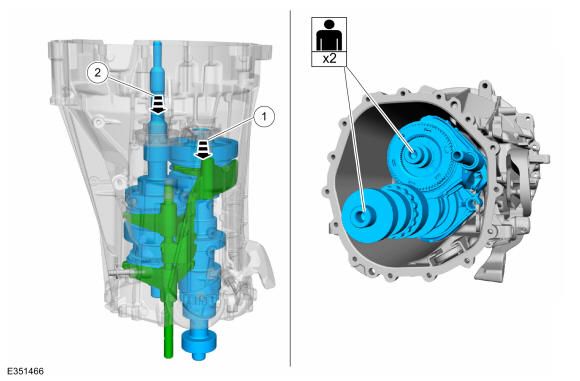

Using a hydraulic press and a 2nd man, remove the shaft assemblies.
1. Using the hydraulic press, press the counter shaft free from the case bearing. Use the General Equipment: Hydraulic Press
2. Using the hydraulic press, press the input shaft free from the case bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
