Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

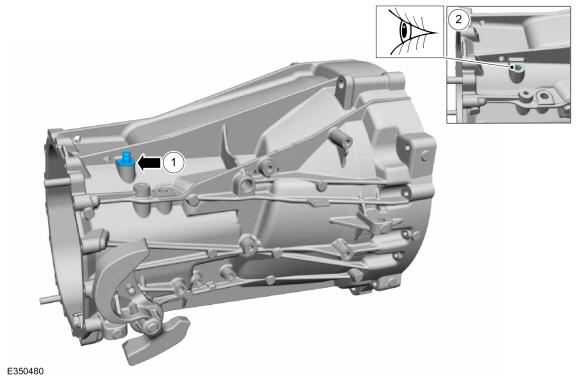

1. Remove the breather fitting.
2. Check to make sure the breather fitting O-ring was removed with the breather fitting. Remove the breather fitting O-ring if needed.
Courtesy of FORD MOTOR COMPANY
Remove the transmission case magnet.

Courtesy of FORD MOTOR COMPANY

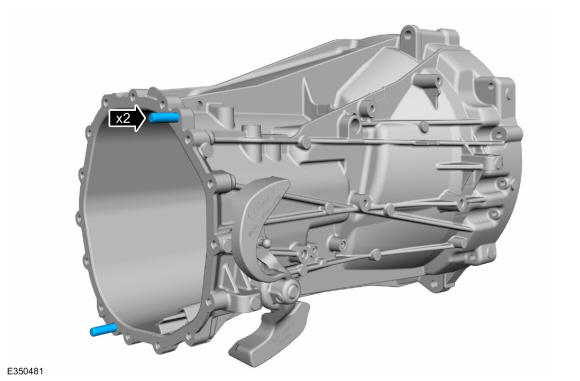

Using a soft face hammer and a punch, remove the dowel pins. Use the General Equipment: Copper Hammer. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the shift lever dampener roll pin.
2. Remove the shift lever dampener.
3. Remove the shift lever dampener shaft spacer.
4. Remove the shift lever dampener shaft.
Courtesy of FORD MOTOR COMPANY
1. Remove and discard the shift lever dampener shaft seal.
2. Remove and discard the shift lever dampener shaft bushing.
Courtesy of FORD MOTOR COMPANY
Remove the transmission case bearing screws.

Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the input shaft and counter shaft bearings for wear or damage. Install a new bearing as necessary.

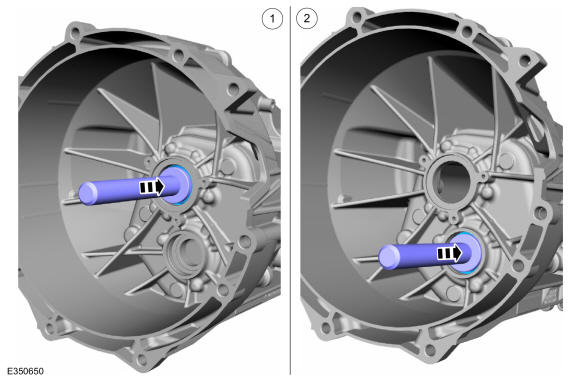

1. Using a bearing cup driver, remove the input shaft bearing.
2. Using a bearing cup driver, remove the counter shaft bearing.
Courtesy of FORD MOTOR COMPANY

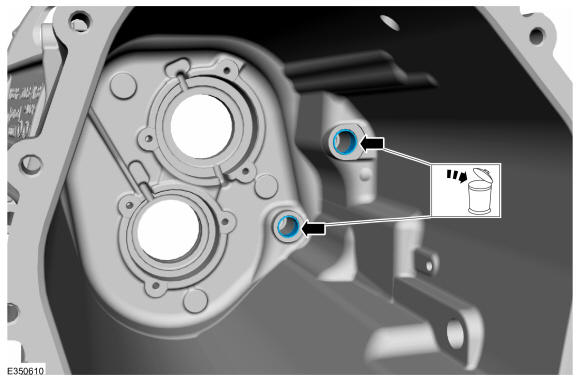

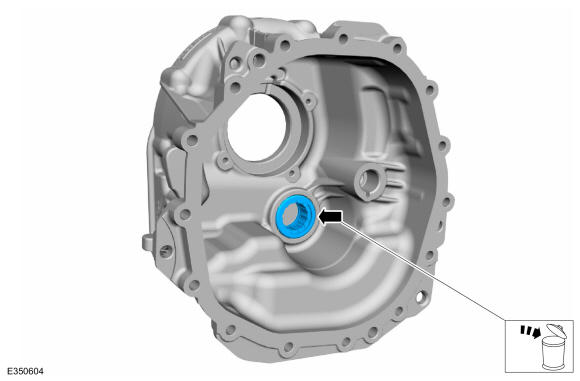

Remove and discard the front case shift shaft bushings.

Courtesy of FORD MOTOR COMPANY
NOTE: The fill plug will be installed after the transmission assembly.

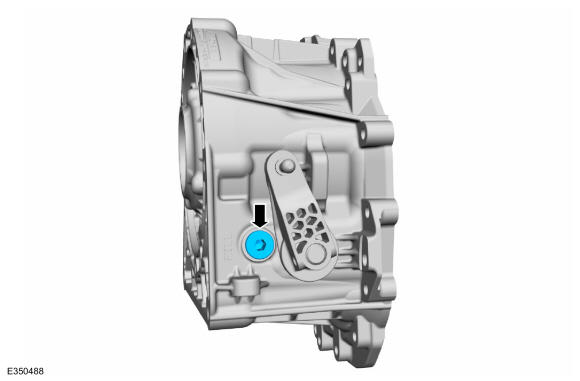

Remove the transmission fill plug.

Courtesy of FORD MOTOR COMPANY

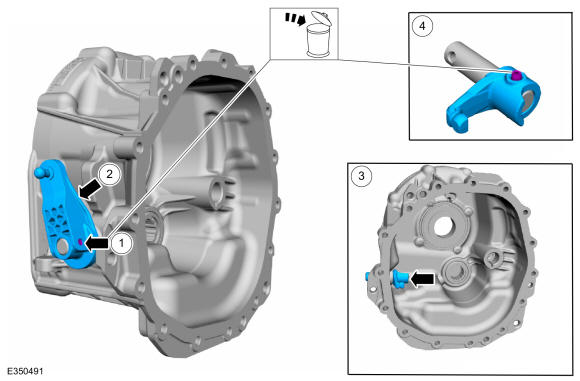

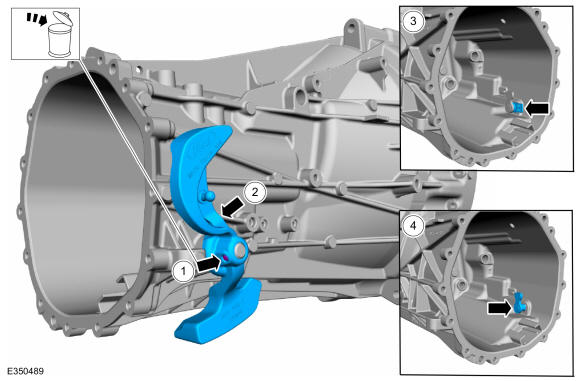

1. Remove and discard the selector lever roll pin.
2. Remove the selector lever.
3. Remove the selector lever shaft.
4. Remove and discard the selector lever shaft roll pin.
Courtesy of FORD MOTOR COMPANY

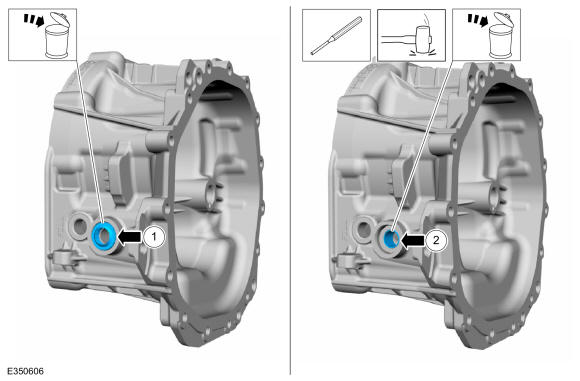

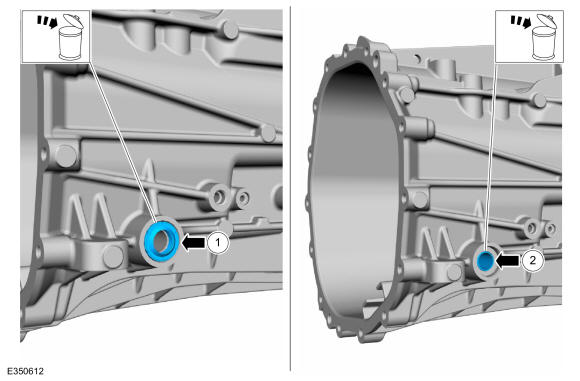

1. Remove and discard the selector lever shaft seal.
2. Remove and discard the selector lever shaft bushing. Use the General Equipment: Copper Hammer. Use the General Equipment: Punch
Courtesy of FORD MOTOR COMPANY
Remove the transmission case bearing screws.

Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the output shaft bearing for wear or damage. Install a new bearing as necessary.

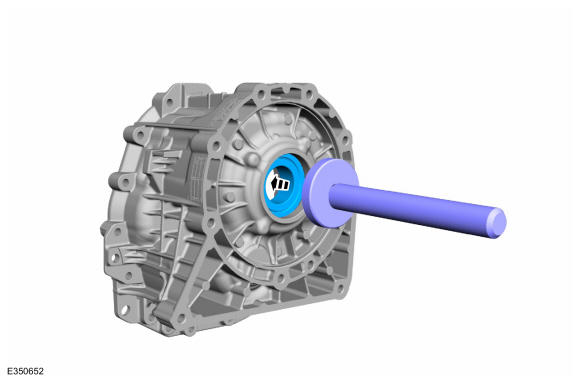

Using a bearing cup driver, remove the output shaft bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: Use bearing puller OTC-303-D1665 or equivalent.

Remove and discard the rear counter shaft bearing.

Courtesy of FORD MOTOR COMPANY

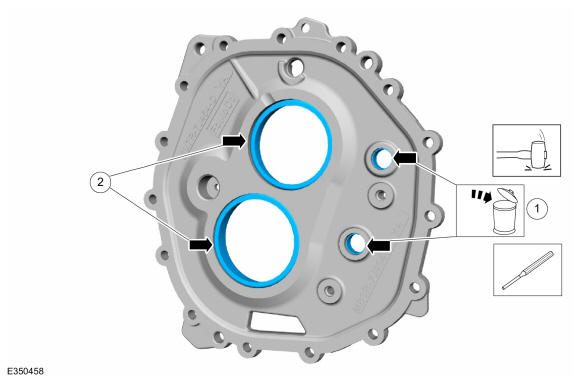

1. Using a soft face hammer and punch, remove and discard the mid plate shift shaft bushings. Use the General Equipment: Copper Hammer. Use the General Equipment: Punch
2. Using a bearing cup remover, remove the mid plate bearing cups. Replace as necessary.
Courtesy of FORD MOTOR COMPANY

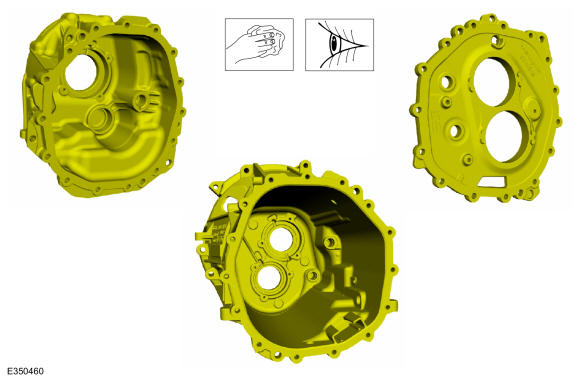

Clean and inspect the front and rear transmission cases and the mid plate. Replace components as necessary.
