Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.

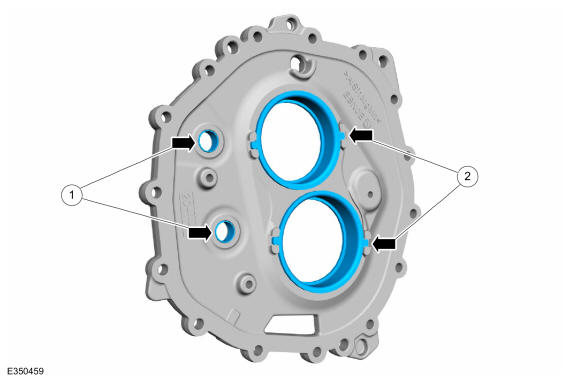

1. Using a soft face hammer and a socket, tap the new mid plate shift shaft bushings in place. Use the General Equipment: Copper Hammer
2. Using a bearing cup installer, install the mid plate bearing cups.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not heat the transmission case higher than 120 deg.C maximum or damage to the transmission case can occur.

NOTE: The preferred option to heat up the rear transmission case would be a oven if available.

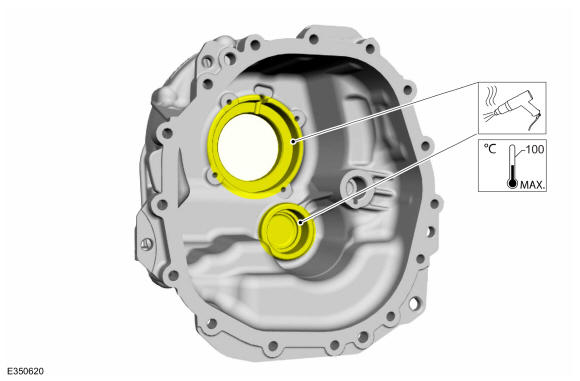

Heat up the bearing surfaces of the rear transmission case. Use the General Equipment: Hot Air Gun

Courtesy of FORD MOTOR COMPANY

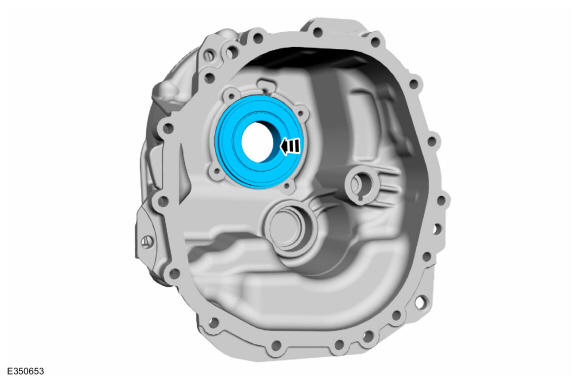

Install the output shaft bearing.

Courtesy of FORD MOTOR COMPANY

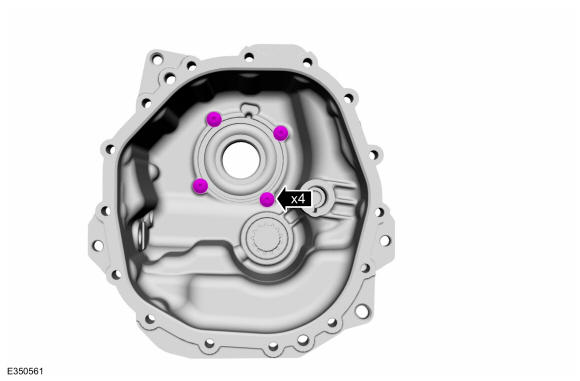

Install the transmission case bearing screws.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

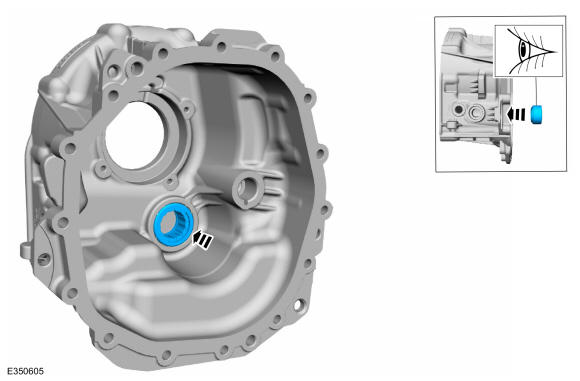

NOTE: The rear counter shaft bearing must be installed in the direction shown, with the flat surface facing out.

Install the new rear counter shaft bearing.

Courtesy of FORD MOTOR COMPANY

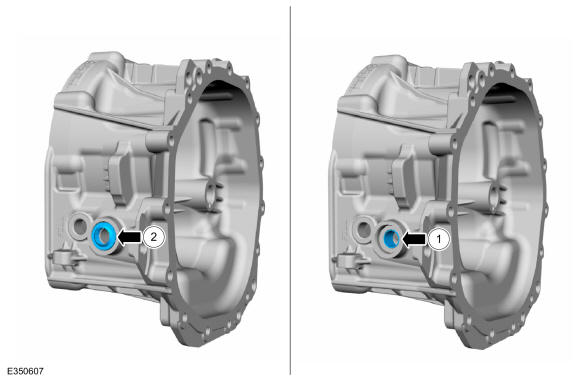

1. Install the new selector lever shaft bushing.
2. Install the new selector lever shaft seal.
Courtesy of FORD MOTOR COMPANY

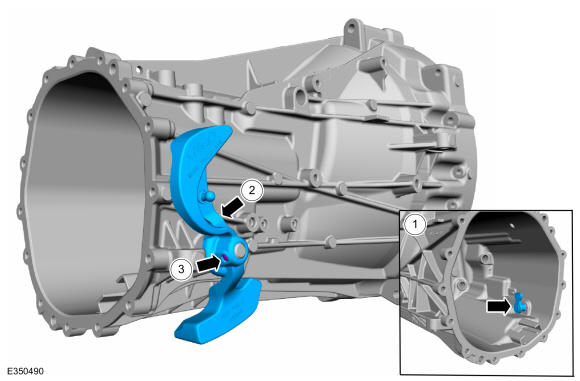

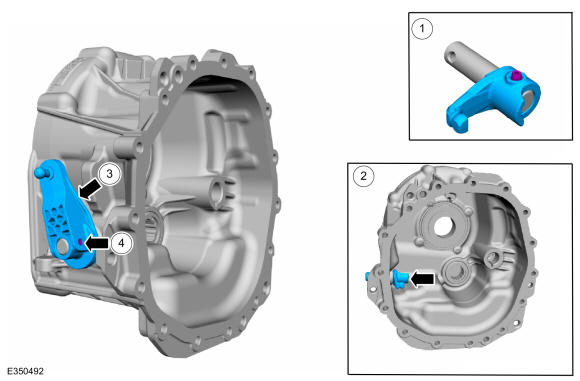

1. Install the new selector lever shaft roll pin.
2. Install the selector lever shaft.
3. Install the selector lever.
4. Install the new selector lever roll pin.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not heat the transmission case higher than 120 deg.C maximum or damage to the transmission case can occur.

NOTE: The preferred option to heat up the front transmission case would be a oven if available.

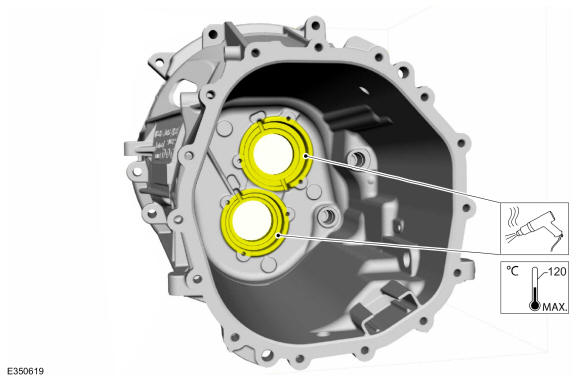

Heat up the bearing surfaces of the front transmission case. Use the General Equipment: Hot Air Gun

Courtesy of FORD MOTOR COMPANY

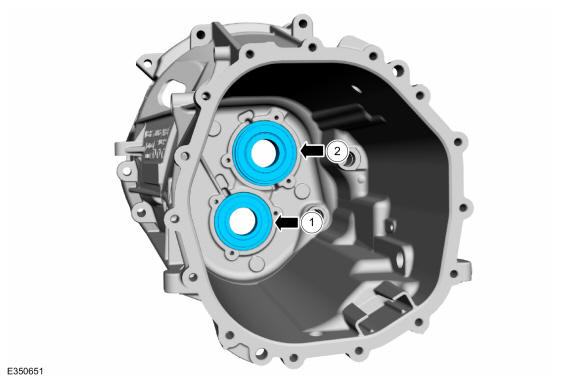

1. Install the counter shaft bearing.
2. Install the input shaft bearing.
Courtesy of FORD MOTOR COMPANY

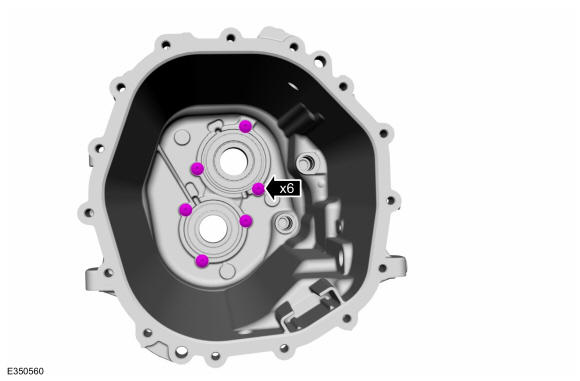

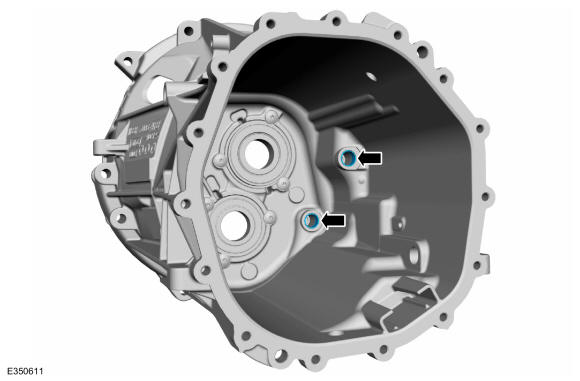

Install the transmission case bearing screws.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new front case shift shaft bushings.

Courtesy of FORD MOTOR COMPANY

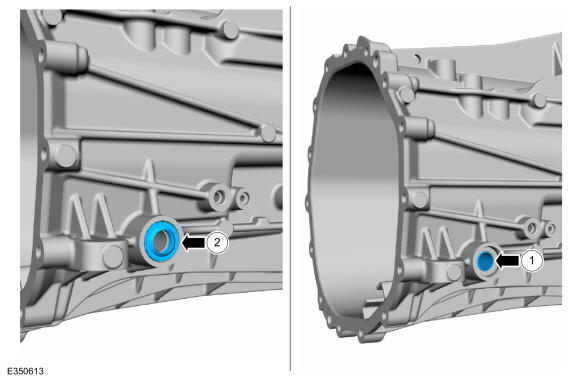

1. Install the new shift lever dampener shaft bushing.
2. Install the new shift lever dampener shaft seal.
Courtesy of FORD MOTOR COMPANY
NOTE: The shift dampener spacer will not be installed at this time.
1. Install the shift lever dampener shaft.
2. Install the shift lever dampener.
3. Install the new shift lever dampener roll pin.
Courtesy of FORD MOTOR COMPANY
Install the transmission case magnet.

Courtesy of FORD MOTOR COMPANY

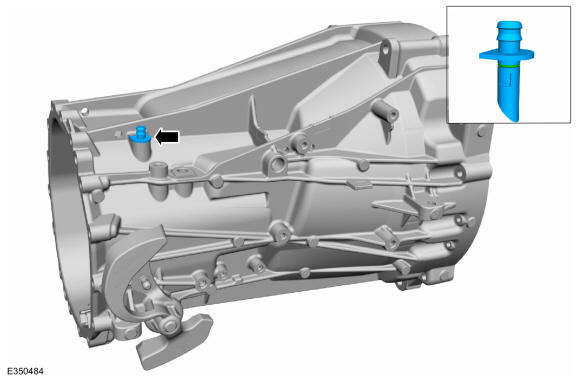

Install the breather fitting and O-ring.

Courtesy of FORD MOTOR COMPANY
