Disassembly And Assembly Of Subassemblies: Countershaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Clean and inspect components for wear or damage, install a new component as necessary.

NOTE: When removing the bearing, do not over expand the bearing cage or damage to the bearing cage can occur.

Remove the counter shaft mid plate bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: Support the countershaft while using the hydraulic press to prevent damage to the shaft or gears.

NOTE: Hand-tighten the Bearing Puller to prevent gear damage.

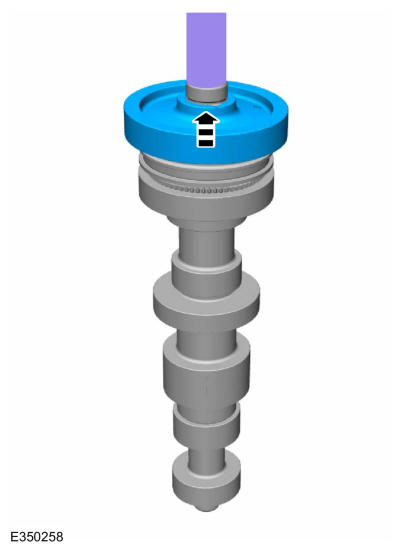

Using a hydraulic press, remove the 1st gear. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Remove the 1st gear synchronizer rings.

Courtesy of FORD MOTOR COMPANY
Remove the 1st gear thrust bearing.

Courtesy of FORD MOTOR COMPANY

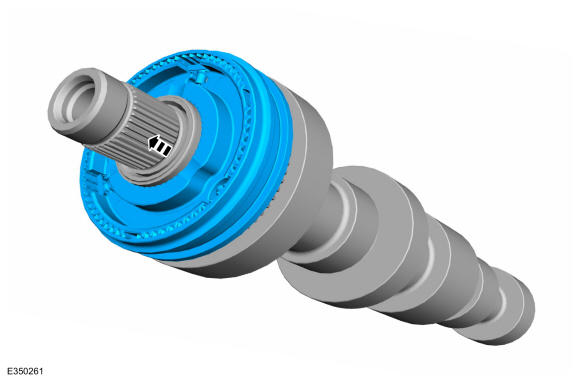

Remove the 1st/2nd gear synchronizer.

Courtesy of FORD MOTOR COMPANY
Remove the 2nd gear synchronizer rings.

Courtesy of FORD MOTOR COMPANY
Remove the 2nd gear.

Courtesy of FORD MOTOR COMPANY

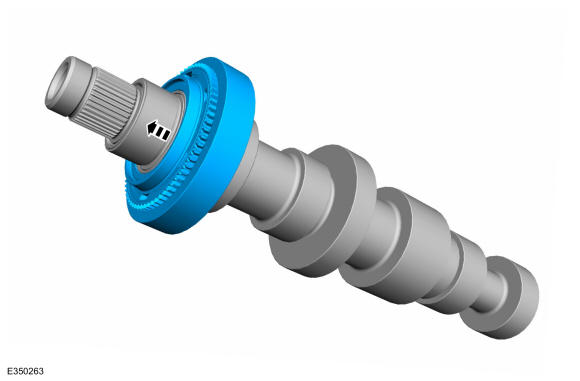

Remove the 2nd gear needle bearing.

Courtesy of FORD MOTOR COMPANY

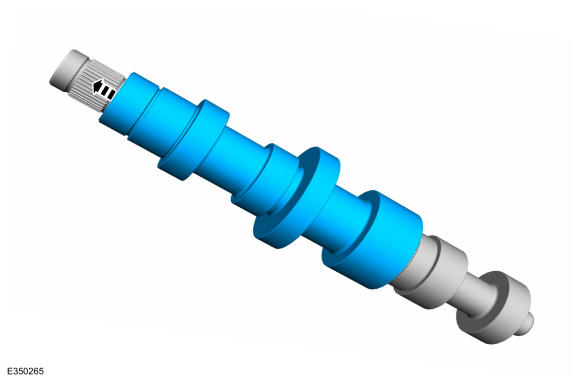

Remove the outer counter shaft.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing the bearings, do not over expand the bearing cage or damage to the bearing cage can occur.

Remove the outer counter shaft bearings.

Courtesy of FORD MOTOR COMPANY
Remove the outer to inner countershaft thrust bearing.

Courtesy of FORD MOTOR COMPANY
Remove the inner mid plate bearing race.

Courtesy of FORD MOTOR COMPANY

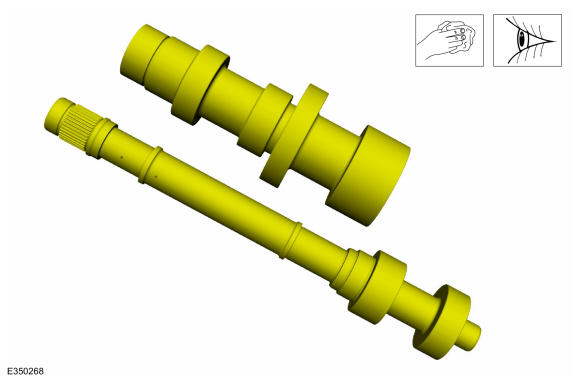

Clean and inspect the outer and inner countershafts.

Courtesy of FORD MOTOR COMPANY
