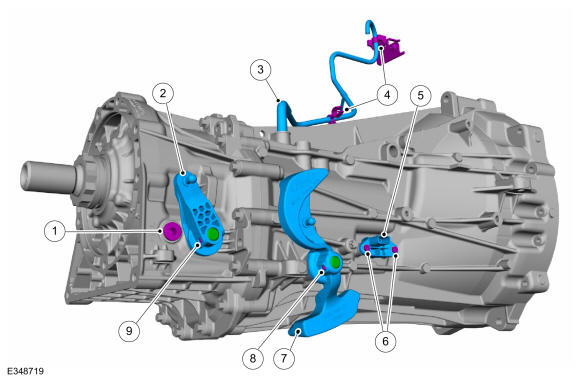

RH side view
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Transmission fluid fill plug |
| 2 |
Transmission selector lever |
| 3 |
Vent tube |
| 4 |
Vent tube retainers |
| 5 |
Gear shift position sensor |
| 6 |
Gear shift position sensor retainers |
| 7 |
Transmission shift lever |
| 8 |
Transmission shift lever pin retainer |
| 9 |
Transmission selector lever pin retainer |
