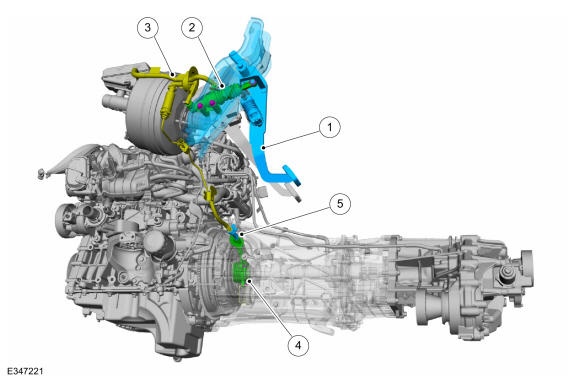

Clutch Controls - Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Clutch pedal |
| 2 |
Clutch master cylinder |
| 3 |
Clutch hydraulic fluid tubes |
| 4 |
Clutch slave cylinder |
| 5 |
Clutch release system bleeding port |
