Fuel Tank: Installation

WARNING: This page is about a different variant/trim than selected.

WARNING: Make sure that all fuel connections are checked for leaks.

NOTE: Make sure that the insulator pads are correctly positioned on the fuel tank and skid plate.

To install, reverse the removal procedure.

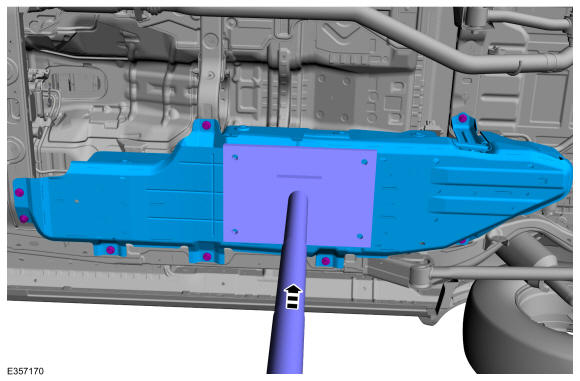

The component must be installed by hand before final tightening.

Courtesy of FORD MOTOR COMPANY

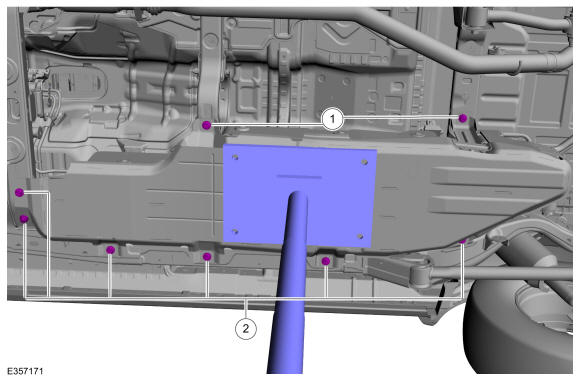

1. Tighten inboard fasteners.
  Torque

  : 59 lb.ft (80 Nm)
2. Tighten outboard fasteners.
  Torque

  : 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
